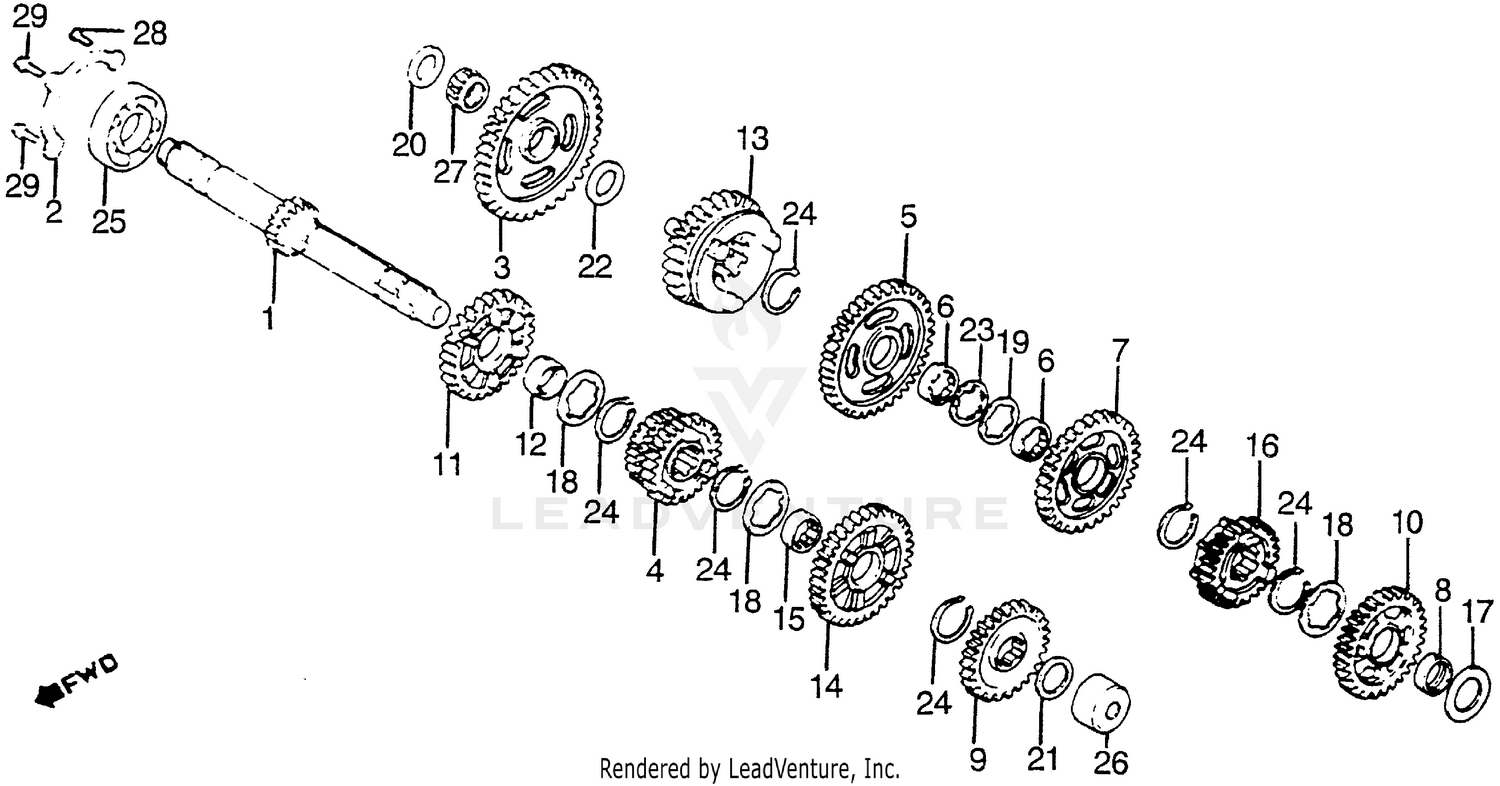

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (17T) (NOT AVAILABLE)
23211-MB4-000
|
$172.01 | ||
|
Unavailable |
|||
|
#2
PLATE, BEARING SETTING (NOT AVAILABLE)
23212-MB0-010
Superseded by 23212-MB4-830
|
$9.40 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (39T) (NOT AVAILABLE)
23421-MB4-000
Superseded by 23421-MB4-830
|
$129.86 | ||
|
Unavailable |
|||
|
#4
GEAR, MAINSHAFT SECOND & THIRD (24T) (NA USE ALT:23430-MB4-315)
23431-MB4-000
|
$178.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT SECOND (34T) (NA USE ALT:23430-MB4-315)
23441-MB4-000
|
$178.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, SPLINE (28X11.99) (NOT AVAILABLE)
23442-MB4-000
|
$20.96 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT THIRD (31T) (NA USE ALT:23430-MB4-315)
23461-MB4-000
|
$178.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (28X12) (NOT AVAILABLE)
23462-MB4-000
|
$20.24 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT FOURTH (27T) (NOT AVAILABLE)
23471-MB4-000
|
$152.18 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (29T) (NOT AVAILABLE)
23481-MB4-000
|
$123.83 | ||
|
Unavailable |
|||
|
#11
GEAR, MAINSHAFT FIFTH (29T)
23491-MB4-000
|
$155.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR (28X13.95) (NOT AVAILABLE)
23495-MB4-000
|
$17.87 | ||
|
Unavailable |
|||
|
#13
GEAR, COUNTERSHAFT FIFTH (26T)
23501-MB4-000
|
$167.00 | ||
|
Unavailable |
|||
|
#14
GEAR, MAINSHAFT SIXTH (32T) (NOT AVAILABLE)
23511-MB4-000
|
$129.73 | ||
|
Unavailable |
|||
|
#15
COLLAR, SPLINE (28X16.34) (NOT AVAILABLE)
23512-MB4-000
|
$19.16 | ||
|
Unavailable |
|||
|
#16
GEAR, COUNTERSHAFT SIXTH (24T) (NOT AVAILABLE)
23521-MB4-000
|
$127.67 | ||
|
Unavailable |
|||
|
#17
WASHER, THRUST (28MM) (NOT AVAILABLE)
90422-MB4-000
|
$4.94 | ||
|
Unavailable |
|||
|
#18
WASHER, THRUST (28MM)
90451-422-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (28MM)
90451-461-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20X1.05)
90453-MB0-770
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20MM)
90454-428-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20X0.95)
90455-MB0-770
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20X0.90)
90456-MB0-770
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, THRUST (20X0.85)
90457-MB0-770
|
$3.84 | ||
|
Unavailable |
|||
|
#21
WASHER, THRUST (22.5MM) (NOT AVAILABLE)
90453-704-000
Superseded by 90453-426-000
|
$3.63 | ||
|
Unavailable |
|||
|
#22
WASHER, THRUST (22MM)
90456-323-000
|
$3.71 | ||
|
Unavailable |
|||
|
#23
WASHER, LOCK (28MM)
90464-MB4-010
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (28MM)
90601-422-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6206) (NTN)
91006-MB4-003
Superseded by 91006-MT3-003
|
$25.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6206) (NTN)
91006-MB4-004
Superseded by 91006-MT3-003
|
$25.82 | ||
|
Unavailable |
|||
|
#25
BEARING, RADIAL BALL (6206) (NTN)
91006-MT3-003
|
$25.82 | ||
|
Unavailable |
|||
|
#26
BEARING, NEEDLE (22MM) (NOT AVAILABLE)
91023-MB6-004
|
$34.18 | ||
|
Unavailable |
|||
|
#27
BEARING, NEEDLE (22X26X11)
91026-MB4-003
|
$16.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FLAT (6X16)
93600-06016-0A
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
Unavailable |
|||
