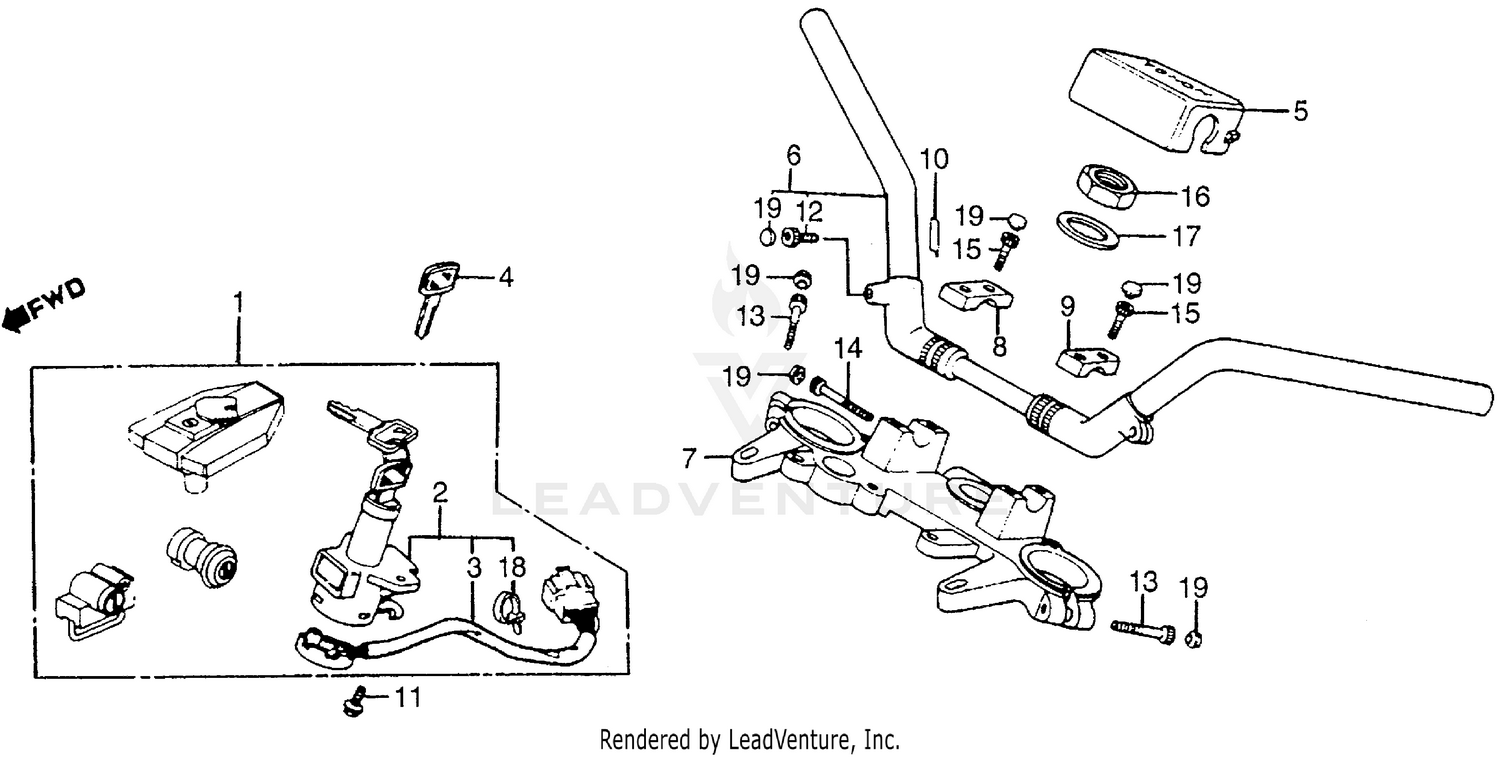

Handlebar + Top Bridge Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK SET (NOT AVAILABLE)
35010-MB3-671
Superseded by 35010-MB3-672
|
$229.22 | ||
|
Unavailable |
|||
|
#1
LOCK SET (NOT AVAILABLE)
35010-MB3-672
|
$229.22 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)
35100-MB3-671
Superseded by 35100-MB3-672
|
$107.29 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)
35100-MB3-672
|
$107.29 | ||
|
Unavailable |
|||
|
#3
BASE, CONTACT (NOT AVAILABLE)
35101-MB3-671
|
$42.59 | ||
|
Unavailable |
|||
|
#4
KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX)
35121-KW3-771
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-MA6-811
Superseded by 35121-KW3-771
|
$12.25 | ||
|
Unavailable |
|||
|
#4
KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX)
35122-KW3-771
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-MA6-811
Superseded by 35122-KW3-771
|
$12.25 | ||
|
Unavailable |
|||
|
#5
COVER, HANDLEBAR (NOT AVAILABLE)
53105-MB4-000
|
$15.06 | ||
|
Unavailable |
|||
|
#6
HANDLEBAR ASSY. (NOT AVAILABLE)
53110-MB3-000
|
$139.85 | ||
|
Unavailable |
|||
|
#7
BRIDGE, FORK TOP (NOT AVAILABLE)
53230-MB3-000
|
$212.36 | ||
|
Unavailable |
|||
|
#8
HOLDER, R. (UPPER) (NOT AVAILABLE)
53235-MB3-670
|
$13.78 | ||
|
Unavailable |
|||
|
#9
HOLDER, L. (UPPER) (NOT AVAILABLE)
53236-MB3-670
|
$13.32 | ||
|
Unavailable |
|||
|
#10
LABEL, FR. SHOCK CAUTION (NOT AVAILABLE)
87517-MB3-670
|
$3.38 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (8X19)
90104-MJ1-000
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (8X22) (NOT AVAILABLE)
90142-MJ1-000
|
$3.78 | ||
|
Unavailable |
|||
|
#13
BOLT, SOCKET (7X32) (NOT AVAILABLE)
90152-MF9-000
|
$4.12 | ||
|
Unavailable |
|||
|
#14
BOLT, SOCKET (8X55)
90166-MB2-000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. SOCKET (8X32)
90185-371-000
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, STEERING STEM
90304-425-000
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, STEERING STEM
90503-425-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, SELF-LOCK
91058-MG9-680
Superseded by 91058-MG9-681
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, SELF-LOCK
91058-MG9-681
|
$2.53 | ||
|
Unavailable |
|||
|
#19
CAP, SOCKET BOLT
91456-371-770
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
