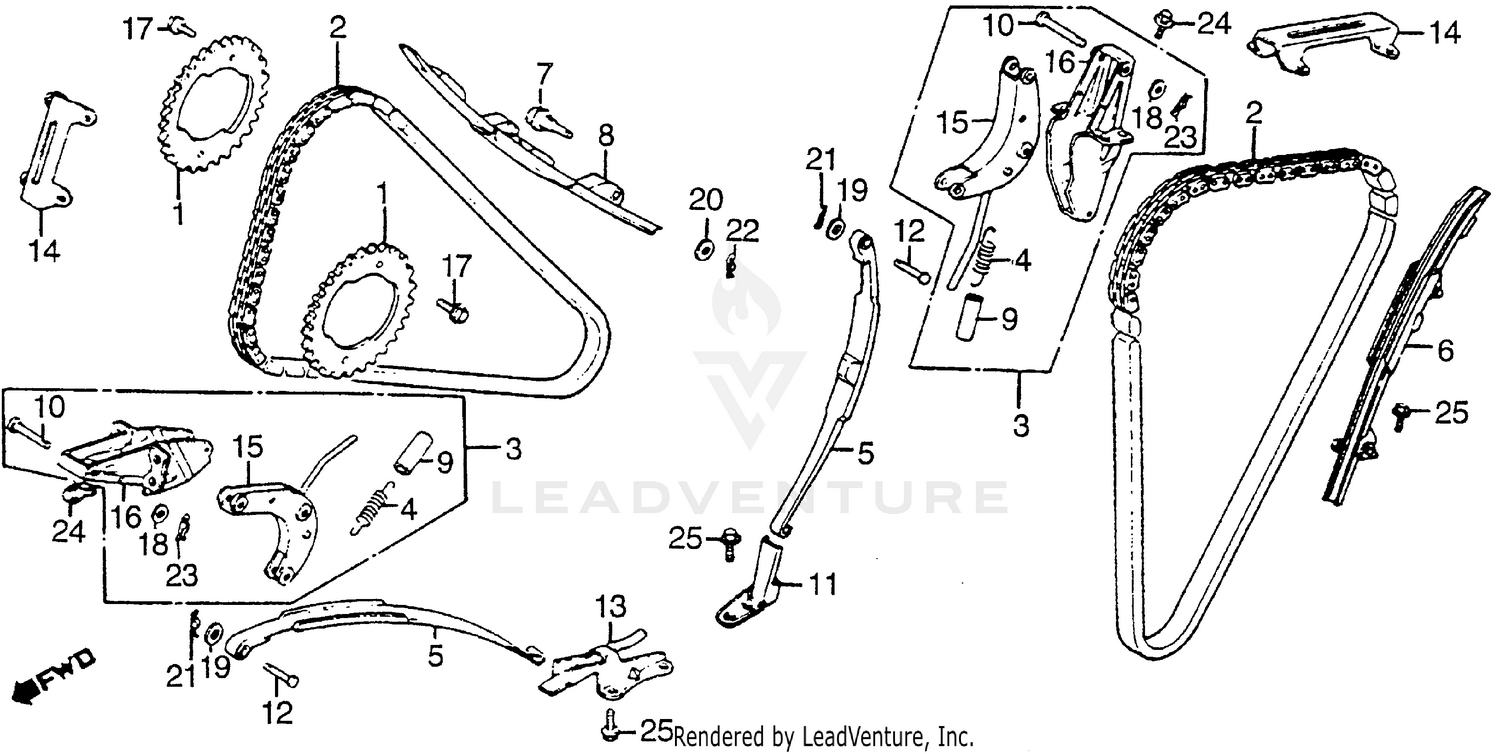

Cam Chain + Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM
14321-MB4-000
Superseded by 14321-MB4-830
|
$54.38 | ||
|
Unavailable |
|||
|
#1
SPROCKET, CAM
14321-MB4-830
|
$54.38 | ||
|
Unavailable |
|||
|
#2
CHAIN, CAM (NOT AVAILABLE)
14401-MB4-003
|
$136.18 | ||
|
Unavailable |
|||
|
#3
BRACKET, TENSIONER
14510-MB3-000
Superseded by 14510-MB3-030
|
$107.47 | ||
|
Unavailable |
|||
|
#3
BRACKET, TENSIONER
14510-MB3-010
Superseded by 14510-MB3-030
|
$107.47 | ||
|
Unavailable |
|||
|
#4
SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)
14514-MB4-000
|
$4.01 | ||
|
Unavailable |
|||
|
#5
TENSIONER, CAM CHAIN (NOT AVAILABLE)
14515-MB0-000
Superseded by 14515-MB0-010
|
$55.69 | ||
|
Unavailable |
|||
|
#5
TENSIONER, CAM CHAIN (NOT AVAILABLE)
14515-MB0-010
|
$55.69 | ||
|
Unavailable |
|||
|
#6
GUIDE A, CAM CHAIN (NOT AVAILABLE)
14520-MB4-000
|
$51.14 | ||
|
Unavailable |
|||
|
#7
BOLT, CAM CHAIN GUIDE A (NOT AVAILABLE)
14521-MB0-000
|
$7.54 | ||
|
Unavailable |
|||
|
#8
GUIDE A, CAM CHAIN (NOT AVAILABLE)
14522-MB4-000
|
$40.64 | ||
|
Unavailable |
|||
|
#9
TUBE, TENSIONER SPRING
14525-MB0-010
Superseded by 14525-MB0-020
|
$5.06 | ||
|
Unavailable |
|||
|
#10
PIN (8X43.2) (NOT AVAILABLE)
14526-MB0-000
|
$3.67 | ||
|
Unavailable |
|||
|
#11
HOLDER A ASSY., TENSIONER (NOT AVAILABLE)
14530-MB4-000
|
$19.56 | ||
|
Unavailable |
|||
|
#12
PIN A, ARM
14533-MB0-000
|
$3.69 | ||
|
Unavailable |
|||
|
#13
HOLDER B ASSY., TENSIONER (NOT AVAILABLE)
14540-MB4-000
|
$19.86 | ||
|
Unavailable |
|||
|
#14
GUIDE B, CAM CHAIN (NOT AVAILABLE)
14541-MB4-000
|
$21.36 | ||
|
Unavailable |
|||
|
#15
ARM, CAM CHAIN TENSIONER (NOT AVAILABLE)
14550-MB3-000
Superseded by 14550-MB3-010
|
$40.74 | ||
|
Unavailable |
|||
|
#15
ARM, CAM CHAIN TENSIONER (NOT AVAILABLE)
14550-MB3-010
|
$40.74 | ||
|
Unavailable |
|||
|
#16
BRACKET, CAM CHAIN TENSIONER HOLDER
14560-MB0-870
Superseded by 14560-MB0-873
|
$27.84 | ||
|
Unavailable |
|||
|
#16
BRACKET, CAM CHAIN TENSIONER HOLDER
14560-MB0-871
Superseded by 14560-MB0-873
|
$27.84 | ||
|
Unavailable |
|||
|
#16
BRACKET, CAM CHAIN TENSIONER HOLDER
14560-MB0-872
Superseded by 14560-MB0-873
|
$27.84 | ||
|
Unavailable |
|||
|
#17
BOLT, UBS (7X15)
90026-ME9-000
Superseded by 90026-MM8-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UBS (7X15)
90026-MM8-000
|
$3.62 | ||
|
Unavailable |
|||
|
#18
WASHER (8MM)
90405-463-000
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (6MM)
90485-KE8-000
Superseded by 90485-VM0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (6MM)
90485-VM0-000
|
$3.53 | ||
|
Unavailable |
|||
|
#20
WASHER (7MM) (NOT AVAILABLE)
90486-MB0-000
|
$2.76 | ||
|
Unavailable |
|||
|
#21
PIN, SPECIAL LOCK (6MM) (NOT AVAILABLE)
90704-MB0-000
|
$1.86 | ||
|
Unavailable |
|||
|
#22
PIN, LOCK (6MM)
94251-06000
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, LOCK (8MM)
94251-08000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
