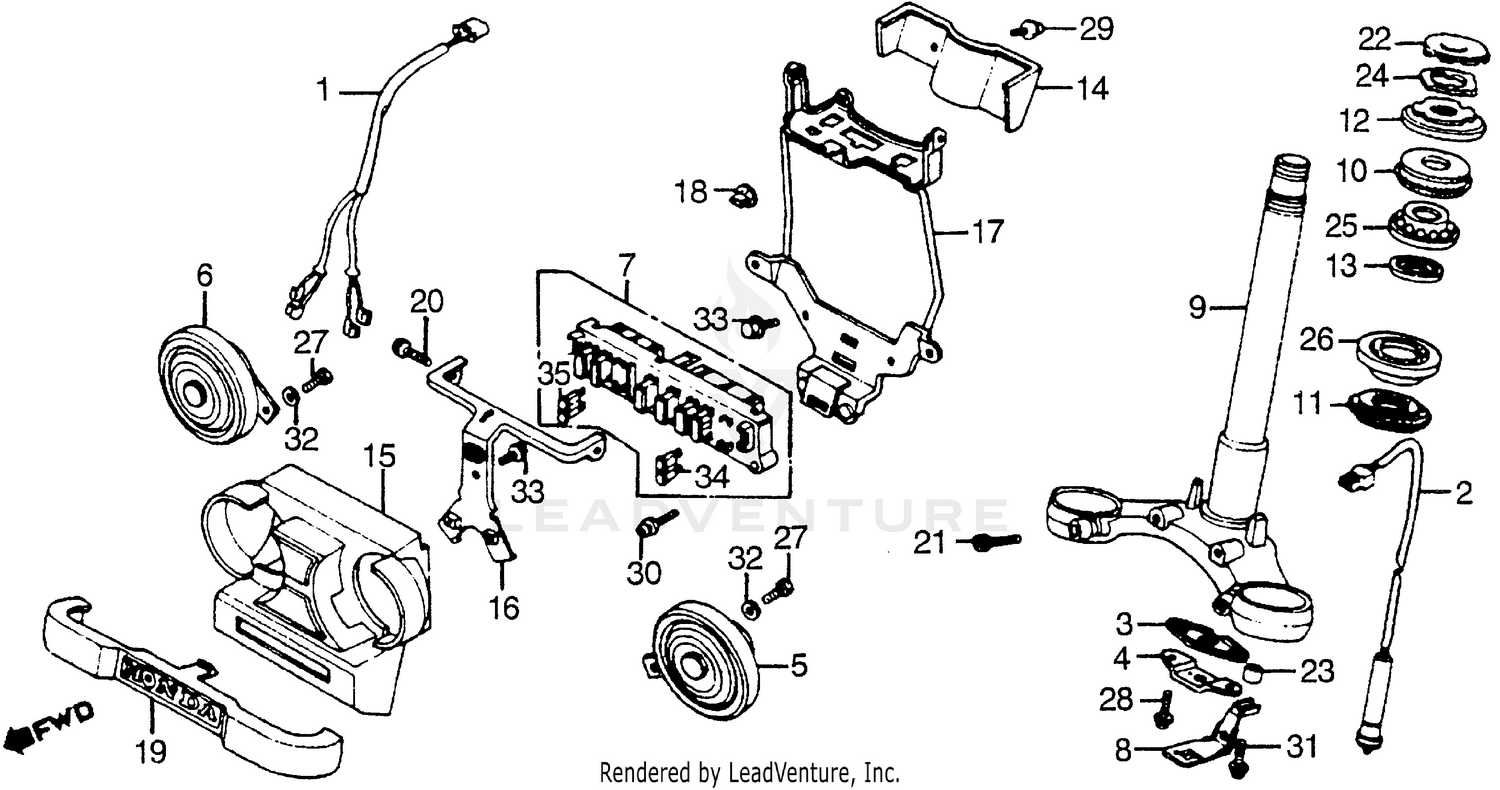

Steering Stem + Horn Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-HARNESS, HORN (NOT AVAILABLE)
32106-MB3-000
|
$26.90 | ||
|
Unavailable |
|||
|
#2
CANCEL UNIT, TURN SIGNAL (ALPS)
35220-MN5-003
|
$244.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
CANCEL UNIT, TURN SIGNAL (ALPS)
35220-MB3-771
Superseded by 35220-MN5-003
|
$244.07 | ||
|
Unavailable |
|||
|
#2
CANCEL UNIT, TURN SIGNAL (ALPS)
35220-MB3-772
Superseded by 35220-MN5-003
|
$244.07 | ||
|
Unavailable |
|||
|
#3
PLATE, ANGLE SENSOR SUPPORT (UPPER) (NOT AVAILABLE)
35231-MB3-670
|
$10.50 | ||
|
Unavailable |
|||
|
#4
PLATE, ANGLE SENSOR SUPPORT (LOWER) (NOT AVAILABLE)
35255-MB3-670
|
$10.50 | ||
|
Unavailable |
|||
|
#5
HORN ASSY. (HIGH) (NOT AVAILABLE)
38110-MB0-891
|
$56.51 | ||
|
Unavailable |
|||
|
#5
HORN ASSY. (HIGH) (NOT AVAILABLE)
38110-MB3-671
Superseded by 38110-MB0-891
|
$56.51 | ||
|
Unavailable |
|||
|
#6
HORN ASSY. (LOW) (NOT AVAILABLE)
38120-MB3-671
|
$53.17 | ||
|
Unavailable |
|||
|
#7
PLATE ASSY., FUSE (NOT AVAILABLE)
38200-MB3-671
|
$50.55 | ||
|
Unavailable |
|||
|
#8
SUPPORT, SENSOR (NOT AVAILABLE)
50231-MB3-000
|
$11.05 | ||
|
Unavailable |
|||
|
#9
STEM, STEERING (NOT AVAILABLE)
53200-MB3-000
|
$241.41 | ||
|
Unavailable |
|||
|
#10
DUST SEAL, STEERING (UPPER) (ARAI)
53213-MB4-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SEAL, STEERING HEAD
53214-371-010
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
THREAD, STEERING HEAD TOP
53220-MB2-000
|
$39.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, GREASE
53223-371-010
|
$4.92 | ||
|
Unavailable |
|||
|
#14
COVER, CONNECTOR HOLDER CASE (NOT AVAILABLE)
61306-MB3-000
|
$23.91 | ||
|
Unavailable |
|||
|
#15
COVER, FUSE HOLDER (NOT AVAILABLE)
61307-MB3-000
|
$39.01 | ||
|
Unavailable |
|||
|
#16
STAY, CONNECTOR HOLDER CASE (NOT AVAILABLE)
61308-MB3-000
|
$20.26 | ||
|
Unavailable |
|||
|
#17
PLATE, CONNECTOR HOLDER (NOT AVAILABLE)
61309-MB3-000
|
$39.79 | ||
|
Unavailable |
|||
|
#18
GROMMET, HORN STAY (NOT AVAILABLE)
61310-MB3-000
|
$2.08 | ||
|
Unavailable |
|||
|
#19
COVER (LOWER) (NOT AVAILABLE)
61401-MB3-000
Superseded by 61401-MB0-950
|
$49.36 | ||
|
Unavailable |
|||
|
#20
BOLT, SPECIAL (6X12)
90025-KE8-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (10X30)
90152-MB0-000
|
$7.79 | ||
|
Unavailable |
|||
|
#22
THREAD B, STEERING HEAD TOP
90302-425-830
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR, SENSOR (NOT AVAILABLE)
90315-MB0-000
|
$2.65 | ||
|
Unavailable |
|||
|
#24
WASHER, LOCK
90506-425-830
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, HEAD PIPE (UPPER) (KOYO)
91015-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, HEAD PIPE (UPPER)
91015-MB4-771
Superseded by 91015-KT8-005
|
$43.02 | ||
|
Unavailable |
|||
|
#26
BEARING, HEAD PIPE (LOWER) (KOYO)
91016-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, HEAD PIPE (LOWER)
91016-MB4-771
Superseded by 91016-KT8-005
|
$43.02 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. (8X14)
92000-08014-0A
Superseded by 92101-08014-0A
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEX. (8X14)
92101-08014-0A
|
$1.68 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN (6X12)
93500-06012-0G
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-WASHER (4X10)
93891-04010-07
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-WASHER (4X10)
93891-04010-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (5X20)
93891-05020-07
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-WASHER (5X18)
93894-05018-07
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X10)
95700-06010-07
Superseded by 95701-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X10)
95701-06010-07
|
$1.70 | ||
|
Unavailable |
|||
|
#34
FUSE, BLADE (10A)
98200-31000
|
$1.37 | ||
|
Unavailable |
|||
|
#35
FUSE, BLADE (15A)
98200-31500
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
