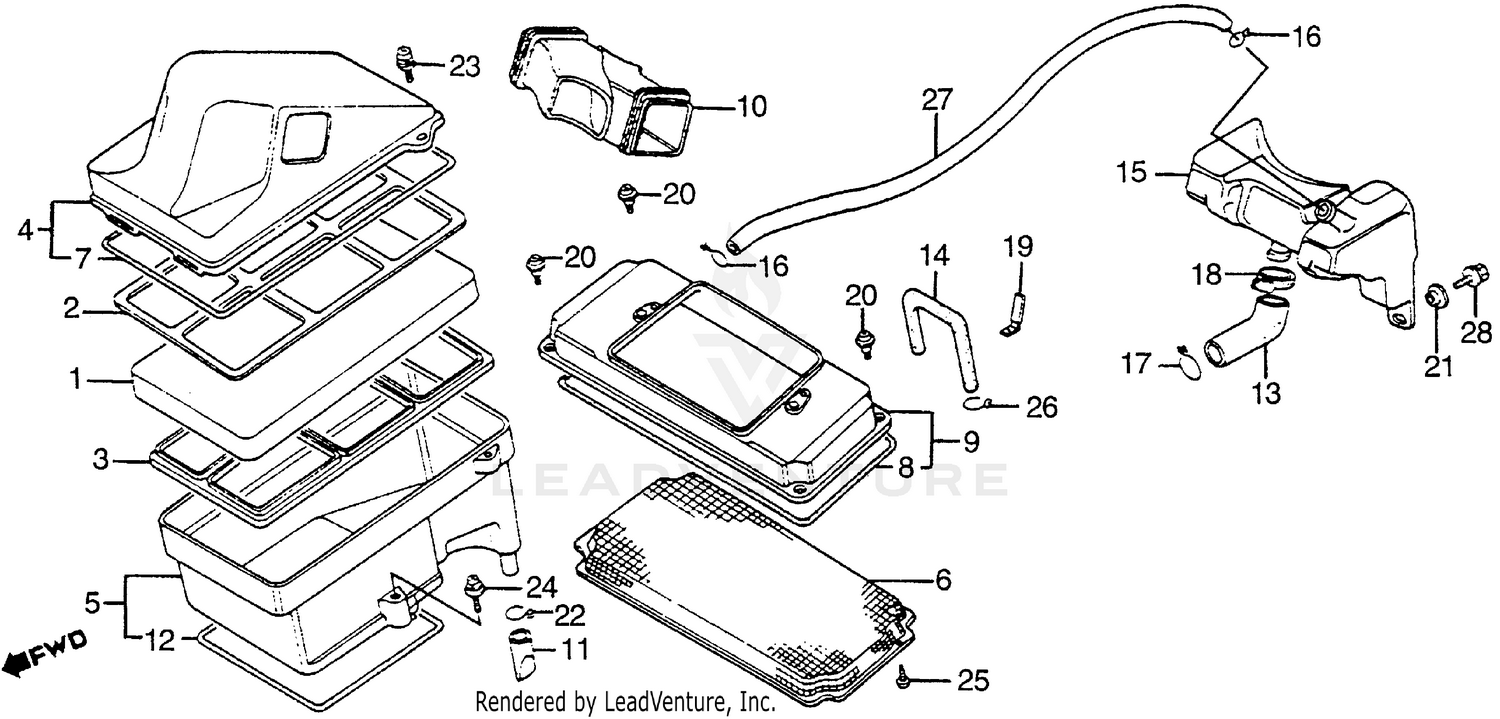

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, AIR CLEANER
17210-MB3-000
|
$13.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE A, ELEMENT SETTING (NOT AVAILABLE)
17211-MB3-000
|
$13.37 | ||
|
Unavailable |
|||
|
#3
PLATE B, ELEMENT SETTING (NOT AVAILABLE)
17212-MB3-000
|
$13.27 | ||
|
Unavailable |
|||
|
#4
COVER, AIR CLEANER HOUSING (NOT AVAILABLE)
17220-MB3-000
|
$48.69 | ||
|
Unavailable |
|||
|
#5
HOUSING, AIR CLEANER (NOT AVAILABLE)
17230-MB3-000
|
$89.86 | ||
|
Unavailable |
|||
|
#6
TRAP, FLAME (NOT AVAILABLE)
17231-MB3-000
|
$36.85 | ||
|
Unavailable |
|||
|
#7
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, AIR CLEANER COVER
17232-MB4-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#8
GASKET
17239-MB3-300
Superseded by 17293-MB3-300
|
$5.67 | ||
|
Unavailable |
|||
|
#9
COVER, AIR CLEANER CHAMBER BASE (NOT AVAILABLE)
17250-MB3-000
|
$30.80 | ||
|
Unavailable |
|||
|
#10
DUCT, AIR CLEANER INLET (NOT AVAILABLE)
17254-MB3-300
|
$27.93 | ||
|
Unavailable |
|||
|
#11
TUBE, AIR CLEANER
17259-MB1-000
|
$3.69 | ||
|
Unavailable |
|||
|
#12
GASKET B, AIR CLEANER HOUSING (NOT AVAILABLE)
17292-MB3-300
|
$5.73 | ||
|
Unavailable |
|||
|
#13
TUBE, BREATHER (NOT AVAILABLE)
17360-MB3-770
|
$7.61 | ||
|
Unavailable |
|||
|
#14
TUBE, VENT (OUTER) (NOT AVAILABLE)
17364-MB3-000
|
$6.08 | ||
|
Unavailable |
|||
|
#15
CHAMBER, BREATHER (NOT AVAILABLE)
17556-MB3-000
|
$22.73 | ||
|
Unavailable |
|||
|
#16
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, AIR HOSE (21.5)
18532-634-670
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, WATER HOSE
19503-MB1-870
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, TUBE
90106-KJ6-740
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (4X15)
90141-MB0-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER (6X9)
90513-323-000
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP, TUBE
90652-MB1-000
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (5X16)
93893-05016-08
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (6X32)
93893-06032-08
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING (5X12) (NOT AVAILABLE)
93901-35220
|
$0.47 | ||
|
Unavailable |
|||
|
#26
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BULK HOSE, VACUUM (14X3000) (14X385)
95005-14003-20M
|
$60.75 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
