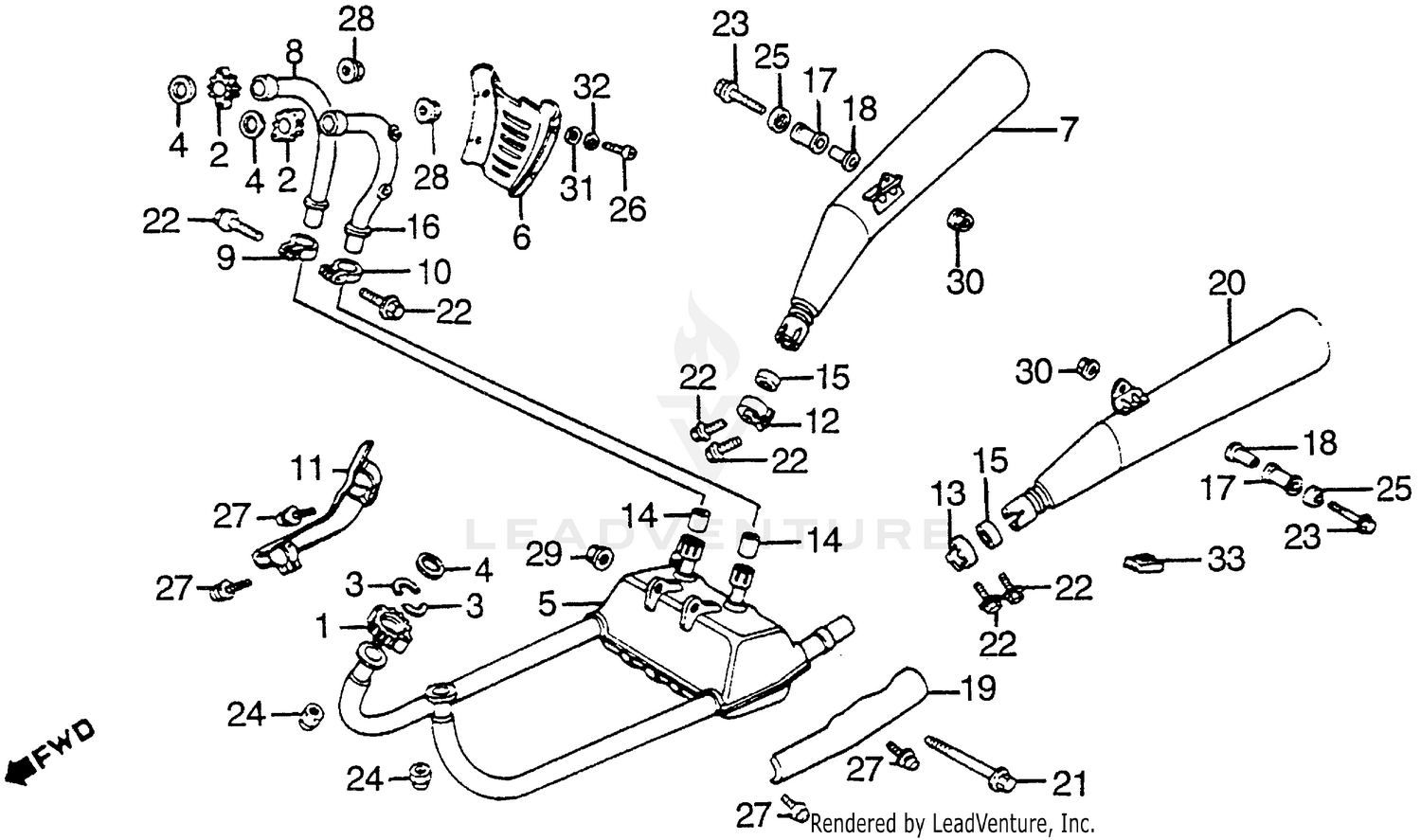

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EX. PIPE (NOT AVAILABLE)
18231-MB3-000
|
$33.33 | ||
|
Unavailable |
|||
|
#2
JOINT, EX. PIPE (NOT AVAILABLE)
18231-MB4-000
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, EX. PIPE JOINT (NOT AVAILABLE)
18232-MB3-000
|
$6.28 | ||
|
Unavailable |
|||
|
#4
GASKET, EX. PIPE
18291-MN4-920
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, EX. PIPE
18291-236-000
Superseded by 18291-MN4-920
|
$6.67 | ||
|
Unavailable |
|||
|
#5
MUFFLER, EX. (NOT AVAILABLE)
18300-MB3-003
|
$508.83 | ||
|
Unavailable |
|||
|
#6
PROTECTOR, RR. EX. PIPE (NOT AVAILABLE)
18316-MB3-003
|
$66.48 | ||
|
Unavailable |
|||
|
#7
MUFFLER, R. (NOT AVAILABLE)
18330-MB3-003
|
$217.19 | ||
|
Unavailable |
|||
|
#8
PIPE, R. RR. EX. (NOT AVAILABLE)
18370-MB3-003
|
$121.92 | ||
|
Unavailable |
|||
|
#9
BAND, R. EX. PIPE
18373-MB6-003
|
$30.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, L. EX. PIPE
18374-MB6-003
|
$38.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR, R. CHAMBER (NOT AVAILABLE)
18375-MB3-003
|
$29.97 | ||
|
Unavailable |
|||
|
#12
BAND, R. MUFFLER
18376-MB4-003
|
$49.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, L. MUFFLER
18377-MB4-003
|
$49.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, EX.
18391-MJ4-000
Superseded by 18392-ML0-000
|
$22.98 | ||
|
Unavailable |
|||
|
#14
GASKET, EX.
18391-425-000
Superseded by 18392-ML0-000
|
$22.98 | ||
|
Unavailable |
|||
|
#14
GASKET, EX.
18392-ML0-000
|
$22.98 | ||
|
Unavailable |
|||
|
#15
GASKET, RR. MUFFLER
18392-MJ4-670
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, RR. MUFFLER
18392-449-000
Superseded by 18392-MJ4-670
|
$19.45 | ||
|
Unavailable |
|||
|
#16
PIPE, L. RR. EX. (NOT AVAILABLE)
18420-MB3-003
|
$114.91 | ||
|
Unavailable |
|||
|
#17
RUBBER, MUFFLER SETTING
18421-438-000
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, MUFFLER MOUNTING
18422-438-000
|
$10.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTECTOR, L. CHAMBER (NOT AVAILABLE)
18425-MB3-003
|
$29.97 | ||
|
Unavailable |
|||
|
#20
MUFFLER, L. (NOT AVAILABLE)
18430-MB3-003
|
$225.61 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (8X70) (NOT AVAILABLE)
90112-MB4-000
|
$4.09 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (8X37)
90118-MB4-000
Superseded by 90118-471-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X37)
90118-471-000
|
$4.00 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (10X50)
90176-MA5-000
Superseded by 96400-10050-00
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X50)
90176-422-000
Superseded by 96400-10050-00
|
$2.38 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (10X50)
96400-10050-00
|
$2.38 | ||
|
Unavailable |
|||
|
#24
NUT, CAP (6MM)
90304-438-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPECIAL (10MM) (NOT AVAILABLE)
90557-438-000
|
$2.76 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN (6X8)
93500-06008-4J
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-WASHER (6X16)
93891-06016-00
|
$0.55 | ||
|
Unavailable |
|||
|
#28
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#31
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
RUBBER A, STAND STOPPER
95011-61000
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
