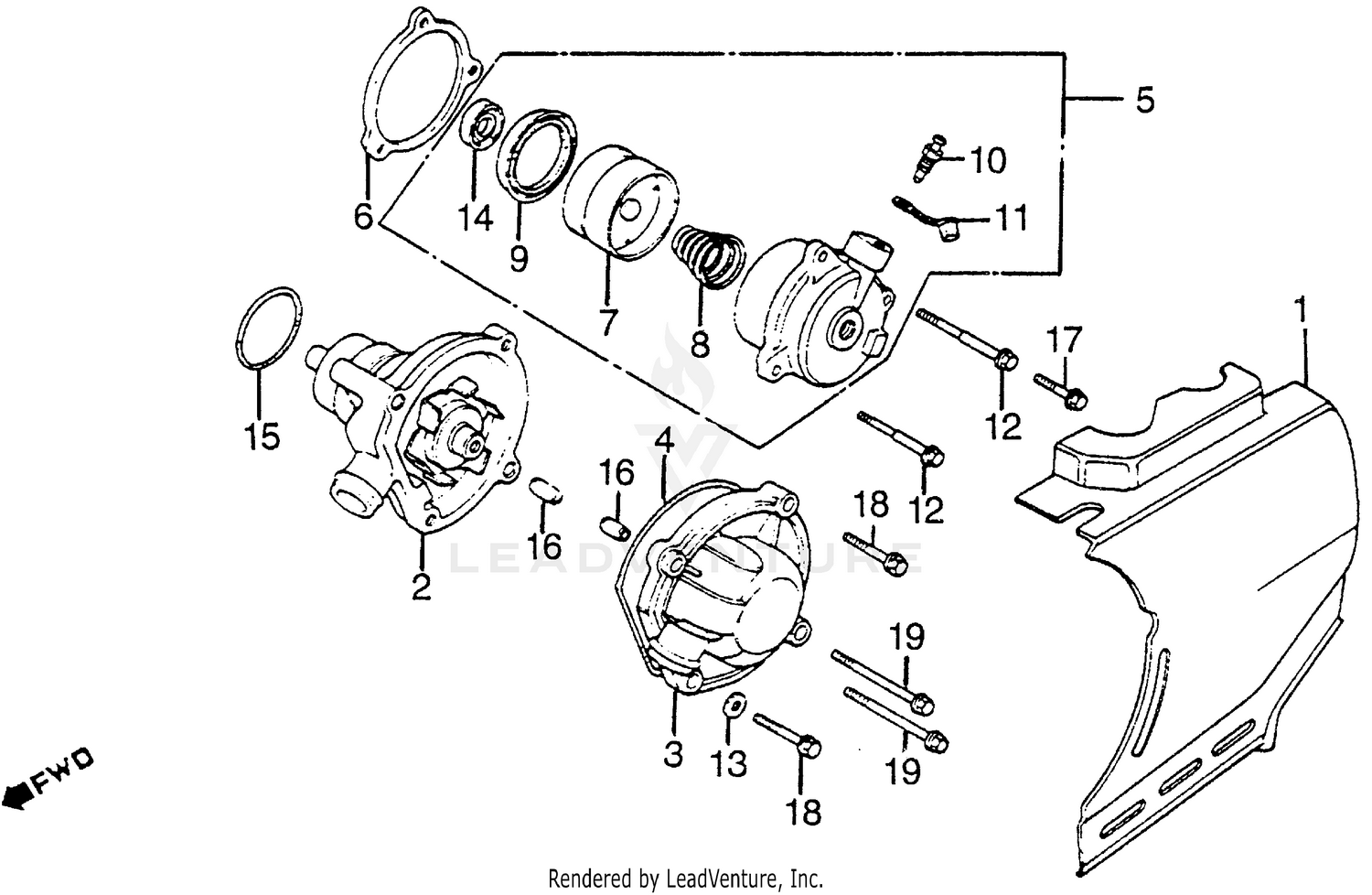

Rear Cover + Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. (NOT AVAILABLE)
11341-MB3-000
|
$31.16 | ||
|
Unavailable |
|||
|
#2
WATER PUMP
19200-MB4-000
Superseded by 19200-MB4-010
|
$148.35 | ||
|
Unavailable |
|||
|
#2
WATER PUMP (NOT AVAILABLE)
19200-MB4-010
|
$148.35 | ||
|
Unavailable |
|||
|
#3
COVER, WATER PUMP (NOT AVAILABLE)
19220-MB4-000
|
$70.84 | ||
|
Unavailable |
|||
|
#4
GASKET, WATER PUMP COVER
19226-MB0-000
|
$4.82 | ||
|
Unavailable |
|||
|
#5
CYLINDER ASSY., CLUTCH SLAVE
22860-MB0-770
|
$140.70 | ||
|
Unavailable |
|||
|
#6
INSULATOR, CLUTCH SLAVE
22862-MB0-307
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, CLUTCH SLAVE
22862-MB0-770
Superseded by 22862-MB0-307
|
$7.25 | ||
|
Unavailable |
|||
|
#7
PISTON, SLAVE CYLINDER
22863-MB0-003
|
$38.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SLAVE CYLINDER
22864-MB0-003
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUP, PISTON
22865-MB0-003
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X55)
90051-MB0-000
|
$2.92 | ||
|
Unavailable |
|||
|
#13
WASHER (11MM)
90425-300-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
OIL SEAL (8X18X5)
91209-MB0-003
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14)
90501-MB0-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X28)
96000-06028-00
Superseded by 96001-06028-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.27 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X70)
96000-06070-00
Superseded by 96001-06070-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X70)
96001-06070-00
|
$2.24 | ||
|
Unavailable |
|||
