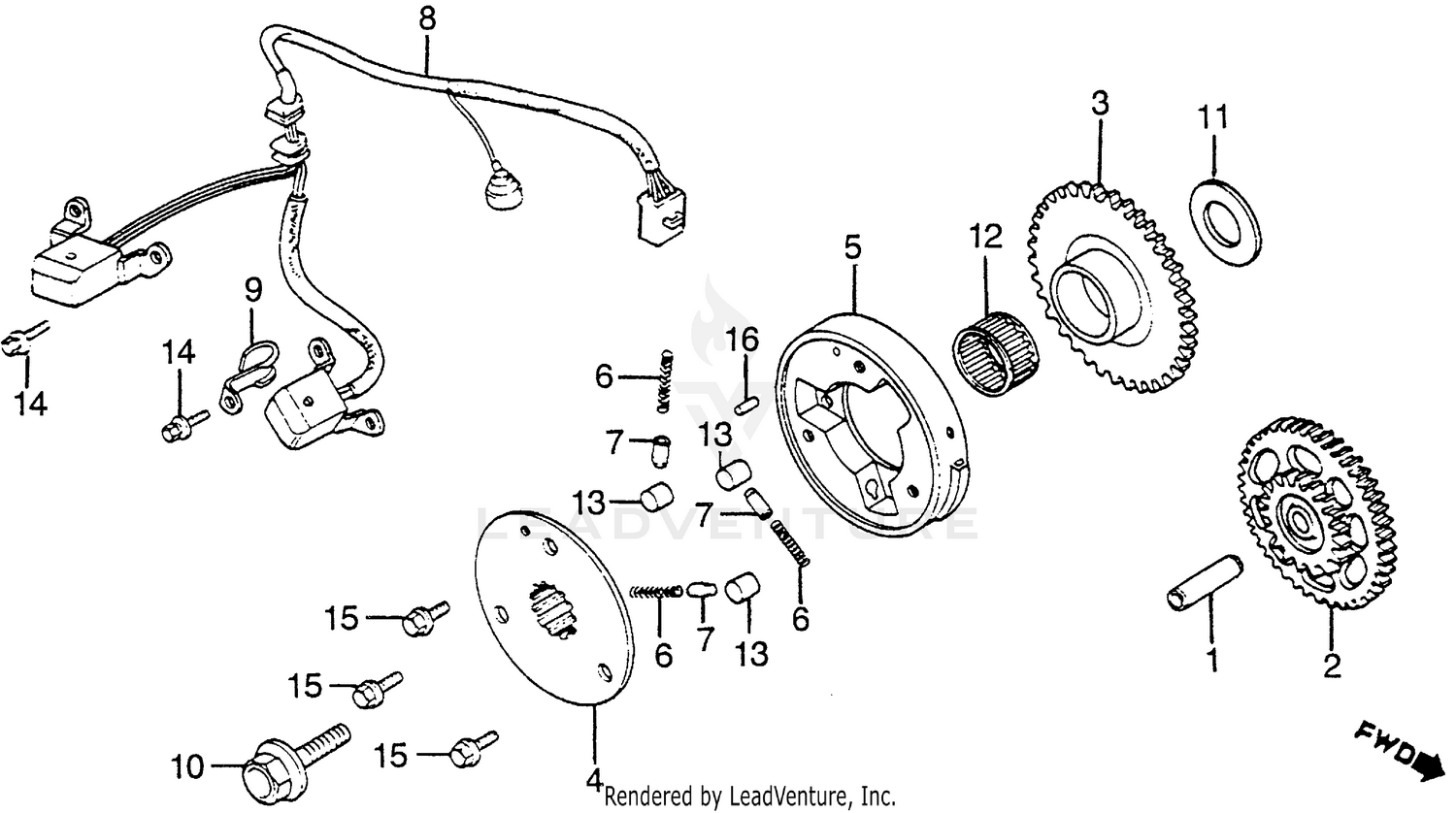

Pulse Generator + Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, PISTON
13111-GK8-000
Superseded by 13111-GS7-000
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#1
PIN, PISTON
13111-GS7-000
|
$11.57 | ||
|
Unavailable |
|||
|
#1
PIN, PISTON
13111-122-000
Superseded by 13111-GS7-000
|
$11.57 | ||
|
Unavailable |
|||
|
#2
GEAR, STARTER REDUCTION (88/21T) (NOT AVAILABLE)
28101-MB4-000
|
$87.55 | ||
|
Unavailable |
|||
|
#3
GEAR, STARTER CLUTCH (NOT AVAILABLE)
28110-MB4-000
Superseded by 28110-MB4-830
|
$126.81 | ||
|
Unavailable |
|||
|
#3
GEAR, STARTER CLUTCH (NOT AVAILABLE)
28110-MB4-830
|
$126.81 | ||
|
Unavailable |
|||
|
#4
FLANGE, STARTER CLUTCH (NOT AVAILABLE)
28115-MB4-000
|
$100.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH, STARTER (OUTER) (NOT AVAILABLE)
28120-MB4-000
|
$195.96 | ||
|
Unavailable |
|||
|
#6
SPRING, STARTER CLUTCH ROLLER
28125-516-030
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, STARTER CLUTCH ROLLER SPRING
28126-415-000
|
$22.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
GENERATOR ASSY., PULSE (NOT AVAILABLE)
30300-MB4-164
Superseded by 30300-MB4-174
|
$87.16 | ||
|
Unavailable |
|||
|
#8
GENERATOR ASSY., PULSE (NOT AVAILABLE)
30300-MB4-174
|
$87.16 | ||
|
Unavailable |
|||
|
#9
CLIP, PULSER WIRE (NOT AVAILABLE)
30301-MB4-010
|
$5.98 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (12X40)
90017-MB4-000
Superseded by 90017-MB6-680
|
$7.49 | ||
|
Unavailable |
|||
|
#11
WASHER, THRUST (25MM) (NOT AVAILABLE)
90461-723-911
|
$9.09 | ||
|
Unavailable |
|||
|
#12
BEARING, NEEDLE (32X38X20) (NTN)
91011-PG4-003
|
$28.56 | ||
|
Unavailable |
|||
|
#12
BEARING, NEEDLE (32X38X20) (NTN)
91022-MB4-000
Superseded by 91011-PG4-003
|
$28.56 | ||
|
Unavailable |
|||
|
#13
ROLLER (15X13)
91101-516-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X16)
93401-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-WASHER (6X16)
93491-06016-00
Superseded by 93401-06016-00
|
$1.70 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (8X14)
95700-08014-08
Superseded by 95701-08014-08
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X14)
95701-08014-08
|
$1.83 | ||
|
Unavailable |
|||
|
#16
ROLLER (6X15)
96220-60150
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
