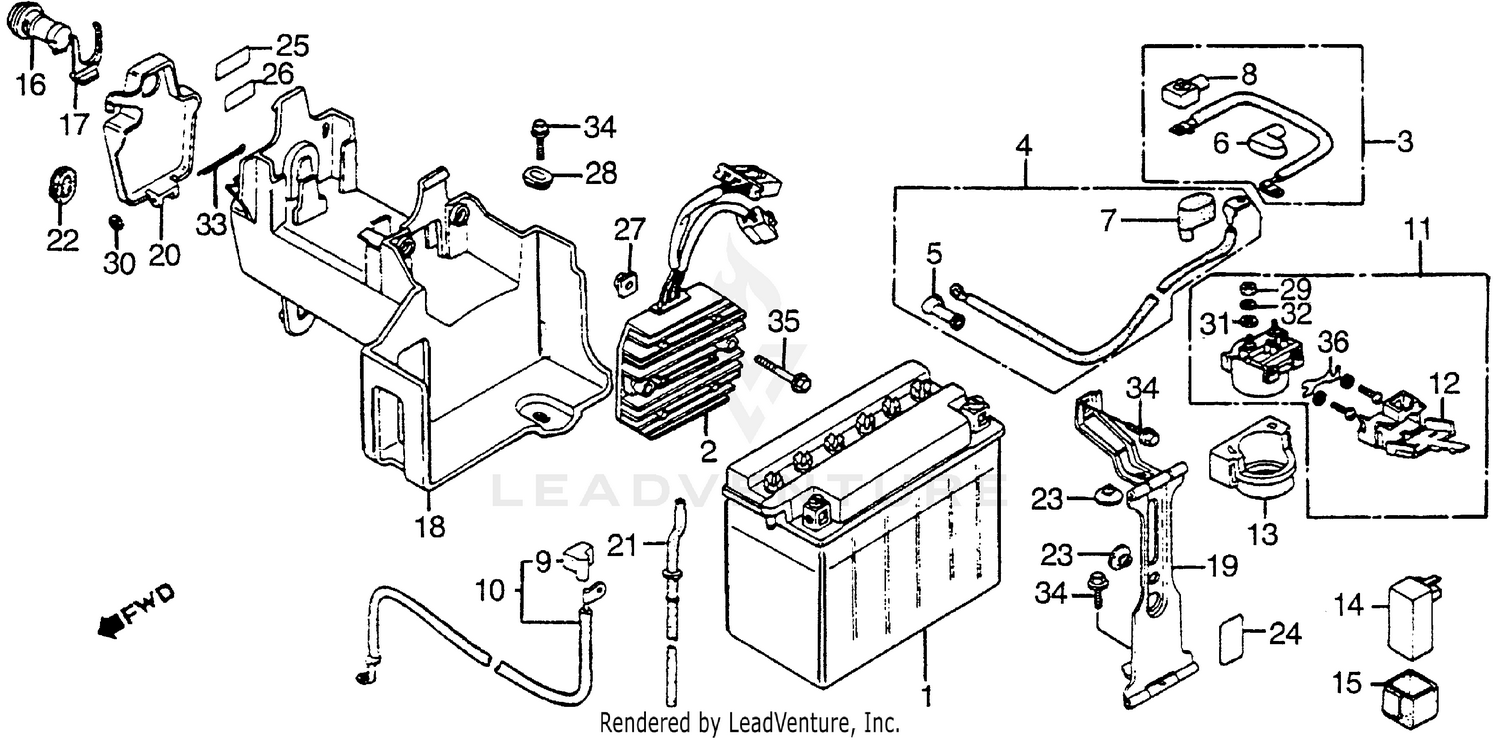

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY (YB18L-A) (YUASA)
31500-MB3-671
Superseded by 31500-ZB7-633
|
$73.16 | ||
|
Unavailable |
|||
|
#1
BATTERY (YB18L-A) (YUASA)
31500-ZB7-632
Superseded by 31500-ZB7-633
|
$73.16 | ||
|
Unavailable |
|||
|
#1
BATTERY (YB18L-A) (YUASA)
31500-ZB7-633
|
$73.16 | ||
|
Unavailable |
|||
|
#1
BATTERY (YB18L-A) (YUASA)
31500-ZB7-633AH
|
$86.89 | ||
|
Unavailable |
|||
|
#1
BATTERY (YB18L-A) (YUASA)
31500-422-671
Superseded by 31500-ZB7-633
|
$73.16 | ||
|
Unavailable |
|||
|
#2
RECTIFIER ASSY., REGULATE
31600-MB3-670
|
$293.54 | ||
|
Unavailable |
|||
|
#3
CABLE, STARTER BATTERY (NOT AVAILABLE)
32401-MB3-000
|
$17.34 | ||
|
Unavailable |
|||
|
#4
CABLE, STARTER MOTOR (NOT AVAILABLE)
32402-MB4-000
Superseded by 32402-MB4-830
|
$39.20 | ||
|
Unavailable |
|||
|
#5
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$8.04 | ||
|
Unavailable |
|||
|
#6
COVER, MAGNETIC SWITCH TERMINAL (NOT AVAILABLE)
32411-MB0-000
|
$5.04 | ||
|
Unavailable |
|||
|
#6
COVER, MAGNETIC SWITCH TERMINAL
32412-MB0-000
Superseded by 32411-MB0-000
|
$5.04 | ||
|
Unavailable |
|||
|
#7
COVER A, MAGNETIC SWITCH (NOT AVAILABLE)
32412-443-900
|
$4.09 | ||
|
Unavailable |
|||
|
#8
COVER B, TERMINAL
32414-MB0-000
Superseded by 32414-MW3-000
|
$3.33 | ||
|
Unavailable |
|||
|
#8
COVER B, TERMINAL
32414-MW3-000
|
$3.33 | ||
|
Unavailable |
|||
|
#8
COVER, BATTERY TERMINAL
32412-MJ1-670
|
$4.69 | ||
|
Unavailable |
|||
|
#9
COVER, BATTERY GROUND (NOT AVAILABLE)
32415-MB3-000
|
$3.04 | ||
|
Unavailable |
|||
|
#10
CABLE, BATTERY GROUND (NOT AVAILABLE)
32601-MB3-000
|
$16.53 | ||
|
Unavailable |
|||
|
#11
SWITCH ASSY., STARTER MAGNETIC
35850-MB0-007
|
$159.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FUSE (NOT AVAILABLE)
35852-MB0-007
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, SHOCK ABSORBER
35856-MB0-007
|
$8.89 | ||
|
Unavailable |
|||
|
#14
RELAY, FUEL CUT
36100-MB1-701
|
$110.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SUSPENSION, FUEL CUT RELAY
36101-MB1-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK, FILLER LID
37220-439-007
|
$65.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, LOCK KEY SETTING
37222-463-000
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOX, BATTERY & TOOL (NOT AVAILABLE)
50321-MB3-300
|
$50.32 | ||
|
Unavailable |
|||
|
#19
PLATE, BATTERY SUPPORT (NOT AVAILABLE)
50322-MB3-000
|
$31.14 | ||
|
Unavailable |
|||
|
#20
COVER, TOOL BOX (NOT AVAILABLE)
50323-MB3-300
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, BATTERY (NOT AVAILABLE)
50328-MB3-000
|
$9.34 | ||
|
Unavailable |
|||
|
#22
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
RUBBER, BATTERY BOX
83618-323-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#24
LABEL, BATTERY CAUTION (NOT AVAILABLE)
87506-MB3-670
|
$3.81 | ||
|
Unavailable |
|||
|
#25
LABEL, RR. RUBBER CAUTION
87518-MB9-780
|
$4.32 | ||
|
Unavailable |
|||
|
#26
LABEL, RR. DAMPING FORCE ADJUSTING (NOT AVAILABLE)
87519-MJ0-300
|
$2.52 | ||
|
Unavailable |
|||
|
#27
NUT, SPECIAL (6MM)
90302-MB1-000
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (6X9)
90513-323-000
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
NUT, HEX. (6MM)
94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#29
NUT, HEX. (6MM)
94002-06080-00
Superseded by 94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#30
WASHER, PLAIN (3MM)
94101-03700
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING (6MM)
94111-06800
|
$1.18 | ||
|
Unavailable |
|||
|
#33
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (6X35)
95700-06035-00
Superseded by 95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Unavailable |
|||
|
#36
FUSE F (30A)
98200-53000
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
