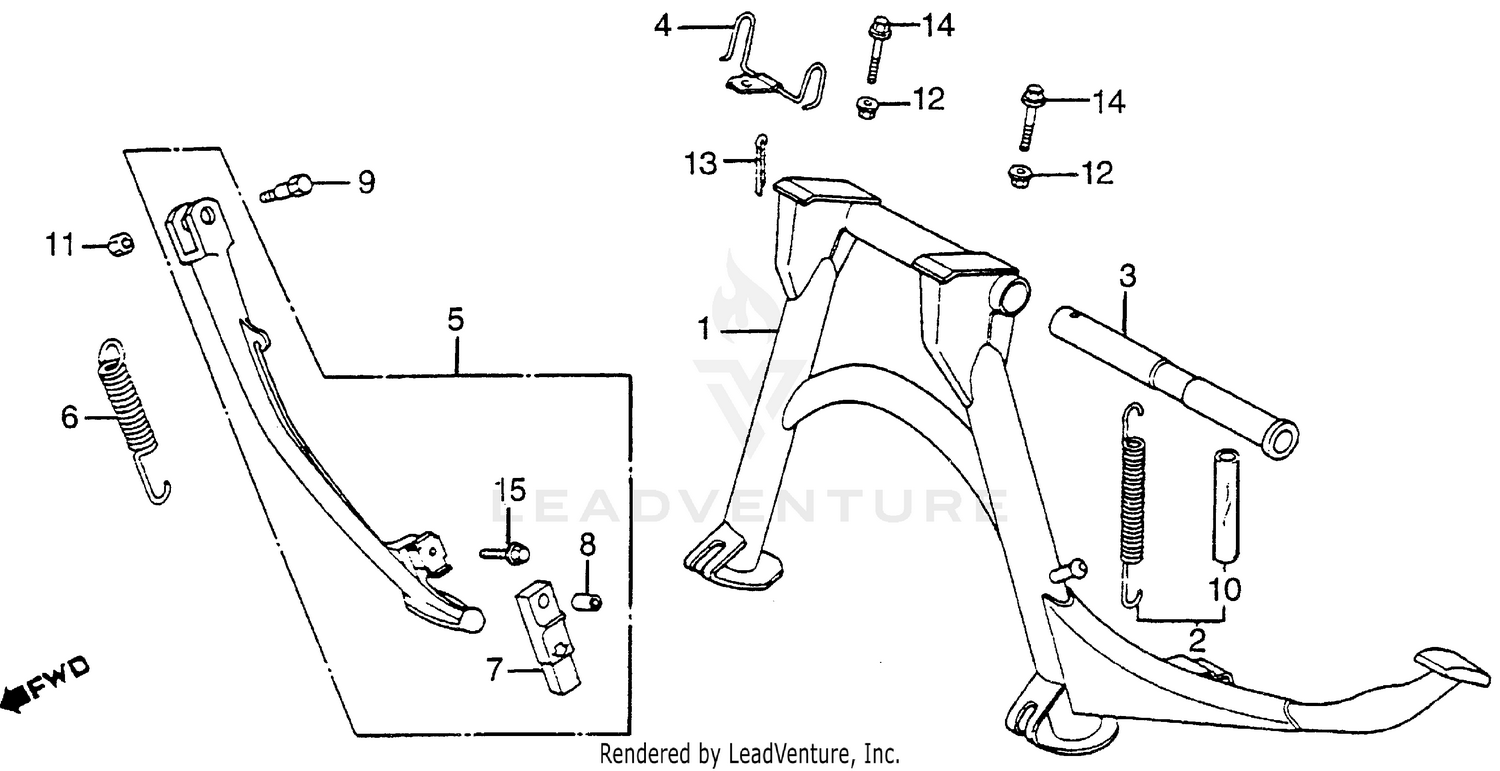

Main Stand + Side Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN (NOT AVAILABLE)
50500-MB3-000
|
$106.38 | ||
|
Unavailable |
|||
|
#2
SPRING ASSY., MAIN STAND
50525-MB3-000
|
$10.42 | ||
|
Unavailable |
|||
|
#3
PIPE, MAIN STAND PIVOT (NOT AVAILABLE)
50526-MB3-000
|
$15.63 | ||
|
Unavailable |
|||
|
#4
CLAMP, OVERFLOW TUBE (NOT AVAILABLE)
50528-MB3-000
|
$6.09 | ||
|
Unavailable |
|||
|
#5
BAR ASSY., SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)
50540-MB3-000ZA
|
$79.11 | ||
|
Unavailable |
|||
|
#6
SPRING, SIDE STAND (NOT AVAILABLE)
50541-445-010
|
$6.75 | ||
|
Unavailable |
|||
|
#7
RUBBER, STAND
50548-356-700
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SIDE STAND PIVOT (NOT AVAILABLE)
90112-MB3-000
|
$5.66 | ||
|
Unavailable |
|||
|
#10
COVER, MAIN STAND SPRING
90125-410-000
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEX. (10MM)
94031-10070
|
$0.89 | ||
|
Unavailable |
|||
|
#12
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, SPLIT (2.5X30)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (8X40)
95700-08040-00
Superseded by 95701-08040-00
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X40)
95701-08040-00
|
$1.44 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X25)
96000-06025-07
Superseded by 96001-06025-07
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X25)
96001-06025-07
|
$1.53 | ||
|
Unavailable |
|||
