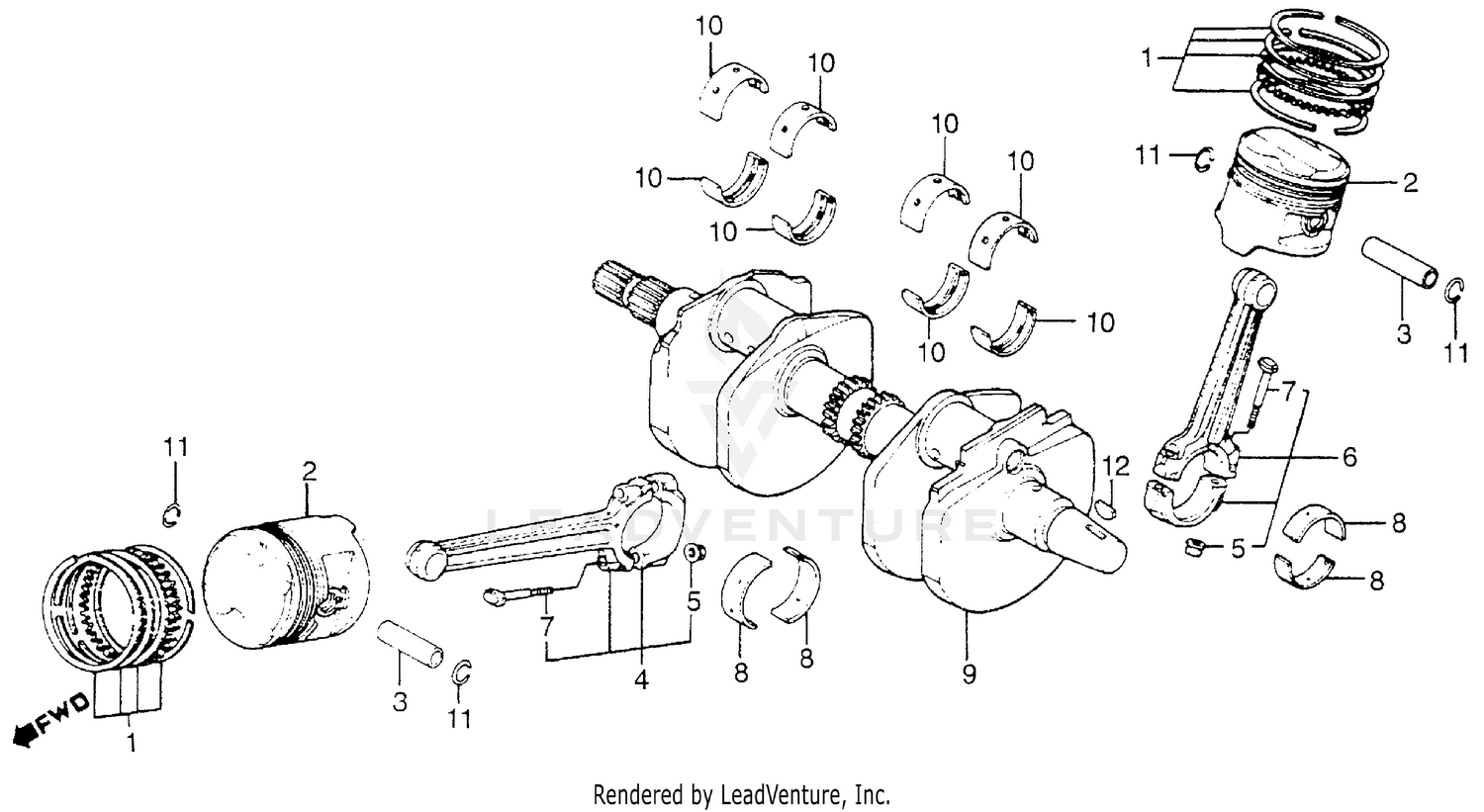

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, PISTON (STD) (TEIKOKU) (NOT AVAILABLE)
13011-MB4-005
|
$60.67 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (STD) (RIKEN)
13011-ME9-004
|
$74.91 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) (NOT AVAILABLE)
13021-MB4-005
|
$54.76 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) (NOT AVAILABLE)
13021-ME9-004
|
$62.12 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) (NOT AVAILABLE)
13031-MB4-005
|
$54.76 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) (NOT AVAILABLE)
13031-ME9-004
|
$59.95 | ||
|
Unavailable |
|||
|
#2
PISTON (STD) (NOT AVAILABLE)
13101-MB4-000
|
$62.27 | ||
|
Unavailable |
|||
|
#2
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
13102-MB4-000
|
$69.64 | ||
|
Unavailable |
|||
|
#2
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
13103-MB4-000
|
$73.87 | ||
|
Unavailable |
|||
|
#3
PIN, PISTON
13111-ME9-000
|
$20.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD ASSY. B, FR.
13201-MB4-000
Superseded by 13202-MB4-405
|
$185.42 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. B, FR.
13202-MB4-000
Superseded by 13202-MB4-405
|
$185.42 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. B, FR.
13203-MB4-000
Superseded by 13202-MB4-405
|
$185.42 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. B, FR.
13204-MB4-000
Superseded by 13202-MB4-405
|
$185.42 | ||
|
Unavailable |
|||
|
#5
NUT, CONNECTING ROD
13205-634-010
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY. B, RR.
13206-MB4-000
Superseded by 13207-MB4-405
|
$150.89 | ||
|
Unavailable |
|||
|
#6
ROD ASSY. B, RR.
13207-MB4-000
Superseded by 13207-MB4-405
|
$150.89 | ||
|
Unavailable |
|||
|
#6
ROD ASSY. B, RR.
13208-MB4-000
Superseded by 13207-MB4-405
|
$150.89 | ||
|
Unavailable |
|||
|
#6
ROD ASSY. B, RR.
13209-MB4-000
Superseded by 13207-MB4-405
|
$150.89 | ||
|
Unavailable |
|||
|
#7
BOLT, CONNECTING ROD
13213-MC7-004
Superseded by 13213-MS2-610
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CONNECTING ROD
13213-MS2-610
|
$11.33 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD
13224-MB4-003
Superseded by 13224-MJ4-010
|
$10.11 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD
13224-MJ4-010
|
$10.11 | ||
|
Unavailable |
|||
|
#8
BEARING B, CONNECTING ROD
13225-MB4-003
Superseded by 13225-MJ4-010
|
$10.11 | ||
|
Unavailable |
|||
|
#8
BEARING B, CONNECTING ROD
13225-MJ4-010
|
$10.11 | ||
|
Unavailable |
|||
|
#8
BEARING C, CONN ROD
13226-MB4-003
Superseded by 13226-MJ4-010
|
$8.12 | ||
|
Unavailable |
|||
|
#9
CRANKSHAFT (NOT AVAILABLE)
13300-MB4-000
Superseded by 13300-MB4-010
|
$1,002.29 | ||
|
Unavailable |
|||
|
#9
CRANKSHAFT (NOT AVAILABLE)
13300-MB4-010
|
$1,002.29 | ||
|
Unavailable |
|||
|
#10
BEARING A, CRANKSHAFT (BROWN) (NOT AVAILABLE)
13314-MB4-003
Superseded by 13314-MB4-013
|
$11.61 | ||
|
Unavailable |
|||
|
#10
BEARING A, CRANKSHAFT (BROWN) (NOT AVAILABLE)
13314-MB4-013
|
$11.61 | ||
|
Unavailable |
|||
|
#10
BEARING B, CRANKSHAFT (GREEN)
13315-MB4-003
Superseded by 13315-MB4-013
|
$10.54 | ||
|
Unavailable |
|||
|
#10
BEARING B, CRANKSHAFT (GREEN)
13315-MB4-013
|
$10.54 | ||
|
Unavailable |
|||
|
#10
BEARING C, CRANKSHAFT (YELLOW) (NOT AVAILABLE)
13316-MB4-003
Superseded by 13316-MB4-013
|
$9.06 | ||
|
Unavailable |
|||
|
#10
BEARING C, CRANKSHAFT (YELLOW) (NOT AVAILABLE)
13316-MB4-013
|
$9.06 | ||
|
Unavailable |
|||
|
#11
CLIP, PISTON PIN (1.2X20)
90601-KA5-000
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
KEY, WOODRUFF (25X14)
90741-413-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
