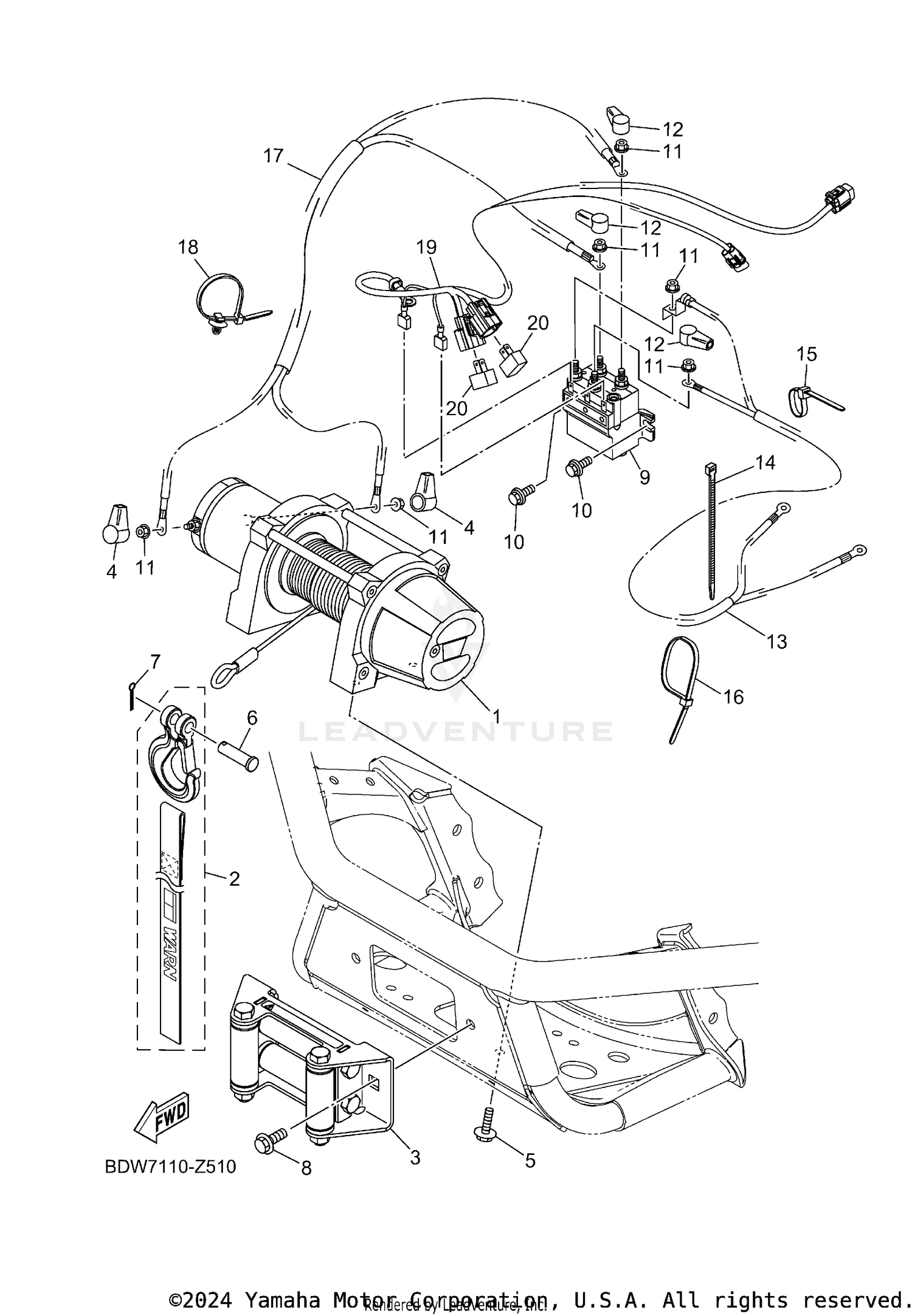

Winch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINCH
BAS-F845V-00-00
|
$653.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOOK
BAS-F8488-02-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROLLER
BAS-F178G-03-00
|
$103.99 | ||
|
Unavailable |
|||
|
#4
PROTECTOR
BAS-F3472-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE DEEP RECESS
95D32-08016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
BAS-F818A-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, COTTER
91402-30020-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE
95812-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONTACTOR
BAS-H232W-00-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06133-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR
BAS-F3472-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#13
WIRE, INNER 1
BDW-F633K-01-00
|
$130.99 | ||
|
Unavailable |
|||
|
#14
CLAMP
90464-51800-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-31827-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90464-48800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE, INNER 2
BAS-F633L-02-00
|
$101.99 | ||
|
Unavailable |
|||
|
#18
CLAMP
5B4-F1338-00-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WIRE HARNESS
BDW-H2105-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#20
DIODE ASSY
4WA-81980-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
