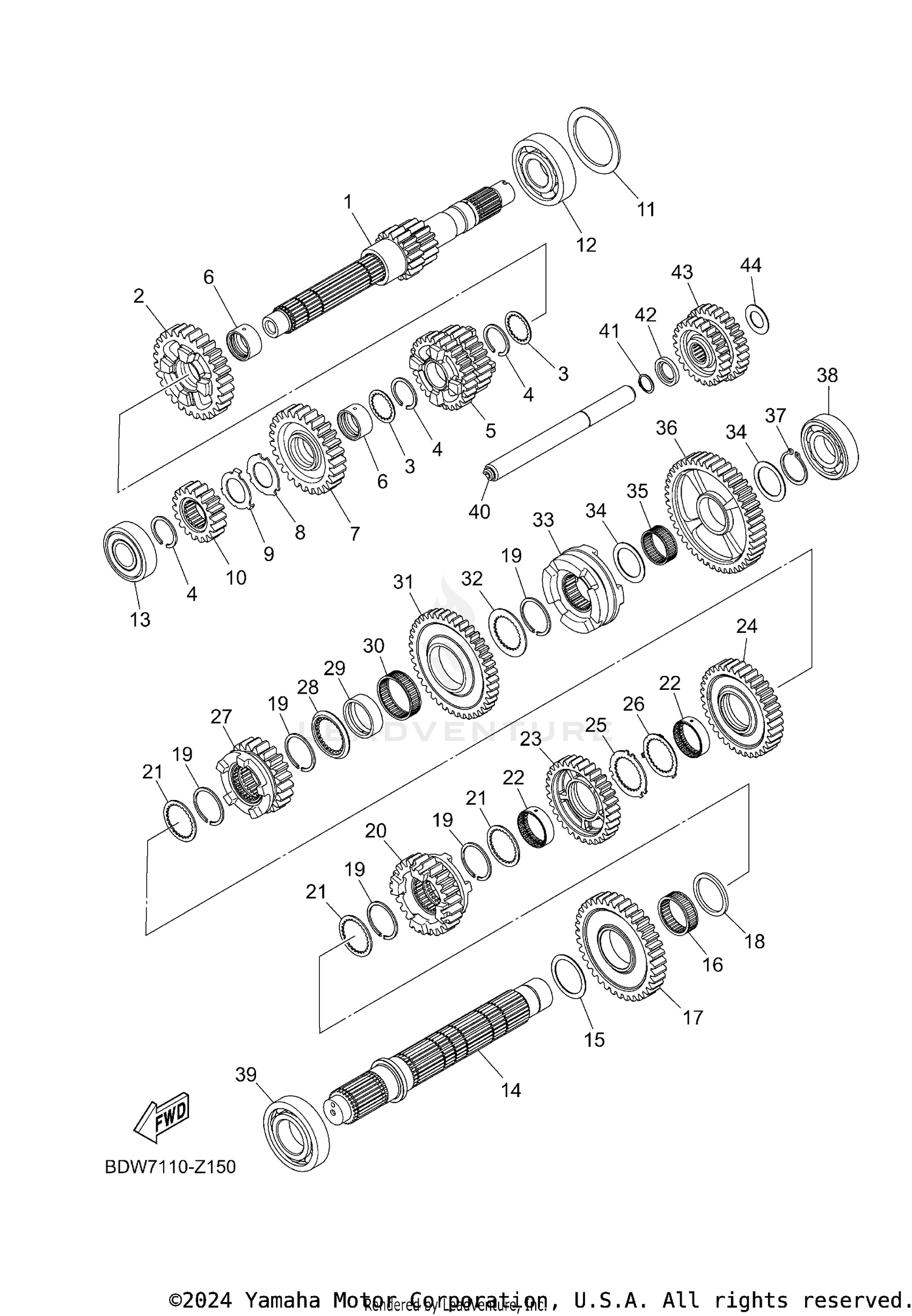

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSY
BDW-17401-00-00
|
$663.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 6TH PINION (28T)
BDW-17161-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#3
WASHER
90209-25011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CIRCLIP
93440-28184-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD PINION (24T/28T)
BDW-17131-00-00
|
$214.99 | ||
|
Unavailable |
|||
|
#6
COLLAR
90387-25023-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH PINION (27T)
BDW-17151-00-00
|
$133.99 | ||
|
Unavailable |
|||
|
#8
WASHER, CLAW
90214-25004-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, CLAW
90214-25003-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 2ND PINION (18T)
BDW-17121-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-51013-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-37817-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37215-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, DRIVE
BDW-17421-00-00
|
$231.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-35018-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
BEARING
93310-33599-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 2ND WHEEL (36T)
BDW-17221-00-00
|
$144.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-35015-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93440-34025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 5TH WHEEL (24T)
BDW-17251-00-00
|
$184.99 | ||
|
Unavailable |
|||
|
#21
WASHER
90209-33008-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-32008-00
|
$99.99 | ||
|
Unavailable |
|||
|
#23
GEAR, 4TH WHEEL (31T)
BDW-17241-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#24
GEAR, 3RD WHEEL (35T)
BDW-17231-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#25
WASHER, CLAW
90214-33002-00
|
$10.49 | ||
|
Unavailable |
|||
|
#26
WASHER, CLAW
90214-33003-00
|
$12.49 | ||
|
Unavailable |
|||
|
#27
GEAR, 6TH WHEEL (21T)
BDW-17261-00-00
|
$149.99 | ||
|
Unavailable |
|||
|
#28
RETAINER
BDW-18658-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#29
RACE, INNER
BDW-46122-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#30
BEARING
93310-340C1-00
|
$42.99 | ||
|
Unavailable |
|||
|
#31
GEAR, REVERSE WHEEL 2 (41T)
BDW-17253-00-00
|
$150.99 | ||
|
Unavailable |
|||
|
#32
WASHER, CLAW
90214-33004-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
CLUTCH, DOG
BDW-17285-00-00
|
$223.99 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-30018-00
|
$3.85 | ||
|
Unavailable |
|||
|
#35
BEARING
93310-330S2-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
GEAR, 1ST WHEEL (45T)
BDW-17211-00-00
|
$164.99 | ||
|
Unavailable |
|||
|
#37
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BEARING
93306-20664-00
|
$53.99 | ||
|
Unavailable |
|||
|
#39
BEARING
93306-20726-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
AXLE, IDLE
BDW-17432-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#41
CIRCLIP
93410-17037-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
RETAINER, SPRING
2HC-18473-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
REVERSE WHEEL ASSY (24T/28T)
BDW-1724A-00-00
|
$223.99 | ||
|
Unavailable |
|||
|
#44
WASHER, PLATE
90201-17257-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
