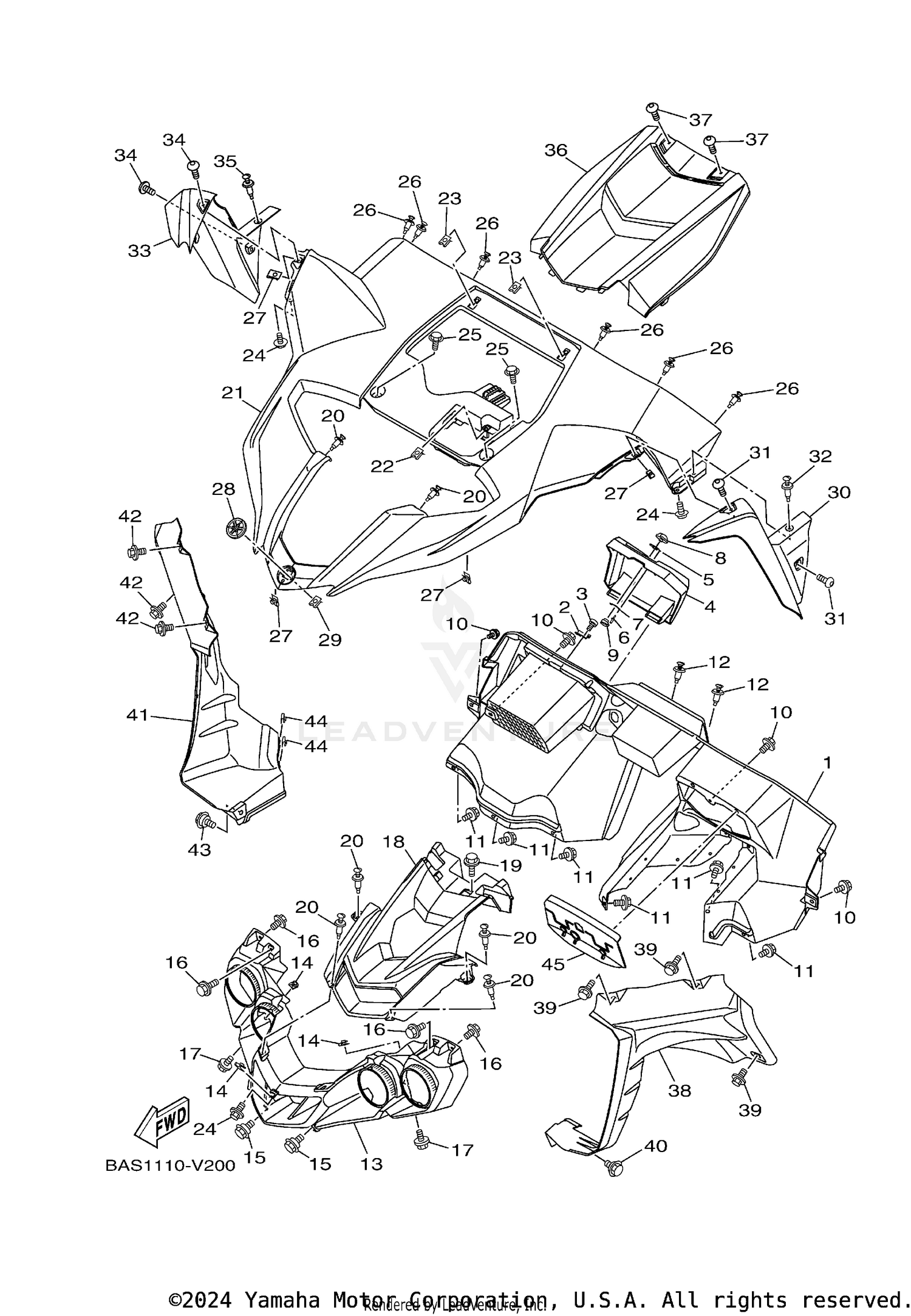

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL, INSTRUMENT
2HC-K7711-31-00
|
$214.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, COVER
B5H-F139T-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TAPPING
90164-04800-00
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
LID
2HC-F160F-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
1XD-F1515-00-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET, BLIND
90267-24143-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL 2
1XD-F1516-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK 1
B5H-F837G-00-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK 2
B5H-F837H-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
90269-07805-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GRILLE, FRONT
2HC-F8309-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#17
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#18
COVER 1
BAS-F5715-30-00
|
$207.99 | ||
|
Unavailable |
|||
|
#19
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#20
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#21
FRONT FENDER COMP.
2HC-F1510-20-00
|
$657.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
|
#23
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
|
#24
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#25
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#26
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#27
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
|
#28
TUNING FORK MARK
1XD-F175B-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SPRING
90183-06071-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
FLAP, FRONT FENDER
2HC-K8187-20-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#33
FLAP, FRONT FENDER
2HC-K818K-20-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#35
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#36
HOOD 2
BAS-F835F-30-00
|
$152.99 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#38
COVER 1
2HC-E246A-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#40
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#41
COVER 2
2HC-E246E-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#43
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#44
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
|
#45
COVER, SEAL 3
2HC-F338G-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
