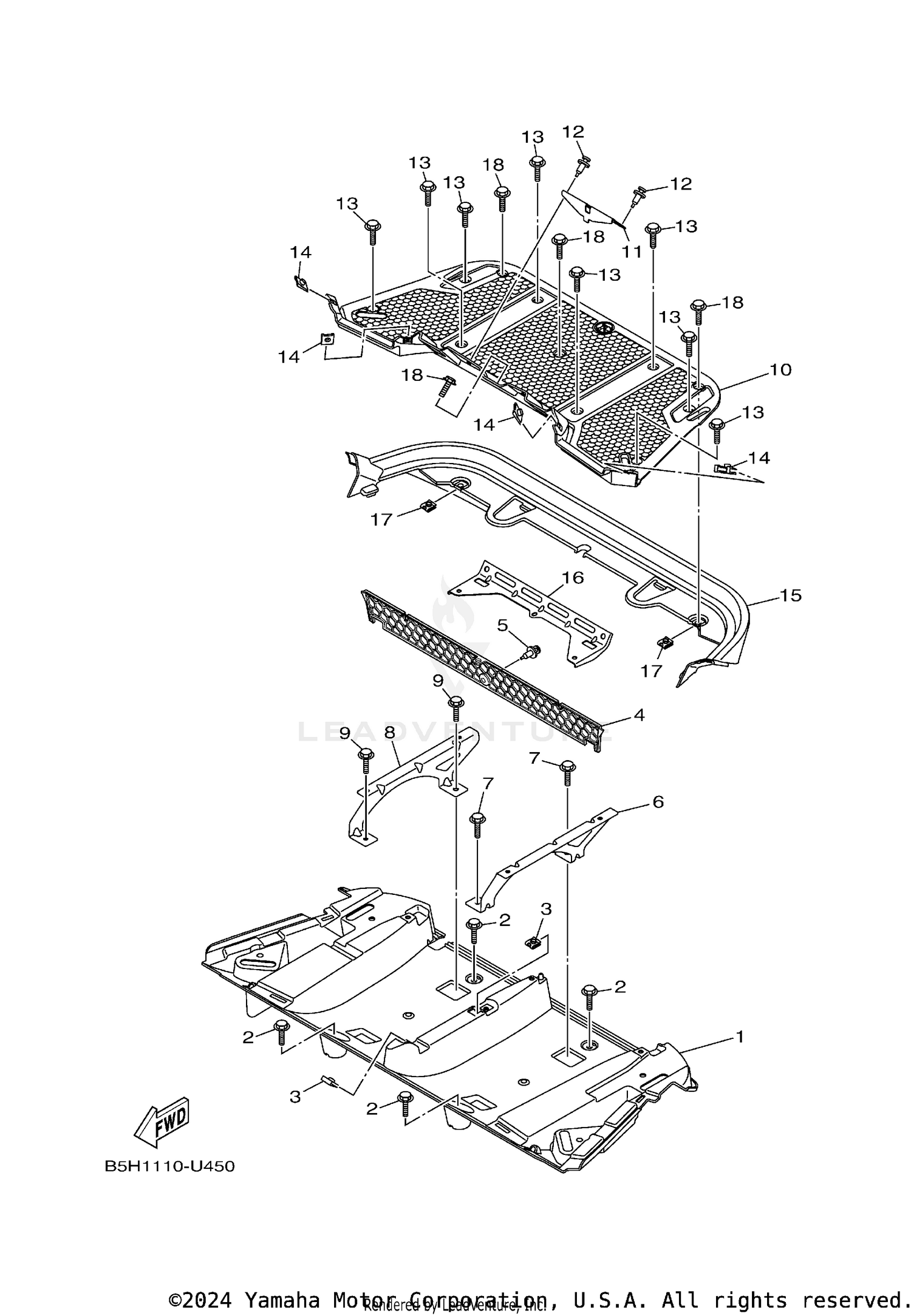

Carrier Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX, CARRIER UNDER
B5H-F4852-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-06011-00
Superseded by 90119-06096-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRILL, AIR INTAKE
B5H-F837R-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIVET
90269-07805-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
STAY, CARRIER
B5H-F1271-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06011-00
Superseded by 90119-06096-00
|
$4.30 | ||
|
Unavailable |
|||
|
#8
STAY CARRIER 2
B5H-F137H-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06011-00
Superseded by 90119-06096-00
|
$4.30 | ||
|
Unavailable |
|||
|
#10
CARRIER, FRONT
B5H-F4841-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET 1
B5H-F8426-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#13
BOLT, WITH WASHER
90119-06011-00
Superseded by 90119-06096-00
|
$4.30 | ||
|
Unavailable |
|||
|
#14
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
|
#15
PANEL, FRAME RR.
B5H-F1235-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, SUPPORT 2
B5H-F832T-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
BOLT, WITH WASHER
90119-06011-00
Superseded by 90119-06096-00
|
$4.30 | ||
|
Unavailable |
|||
