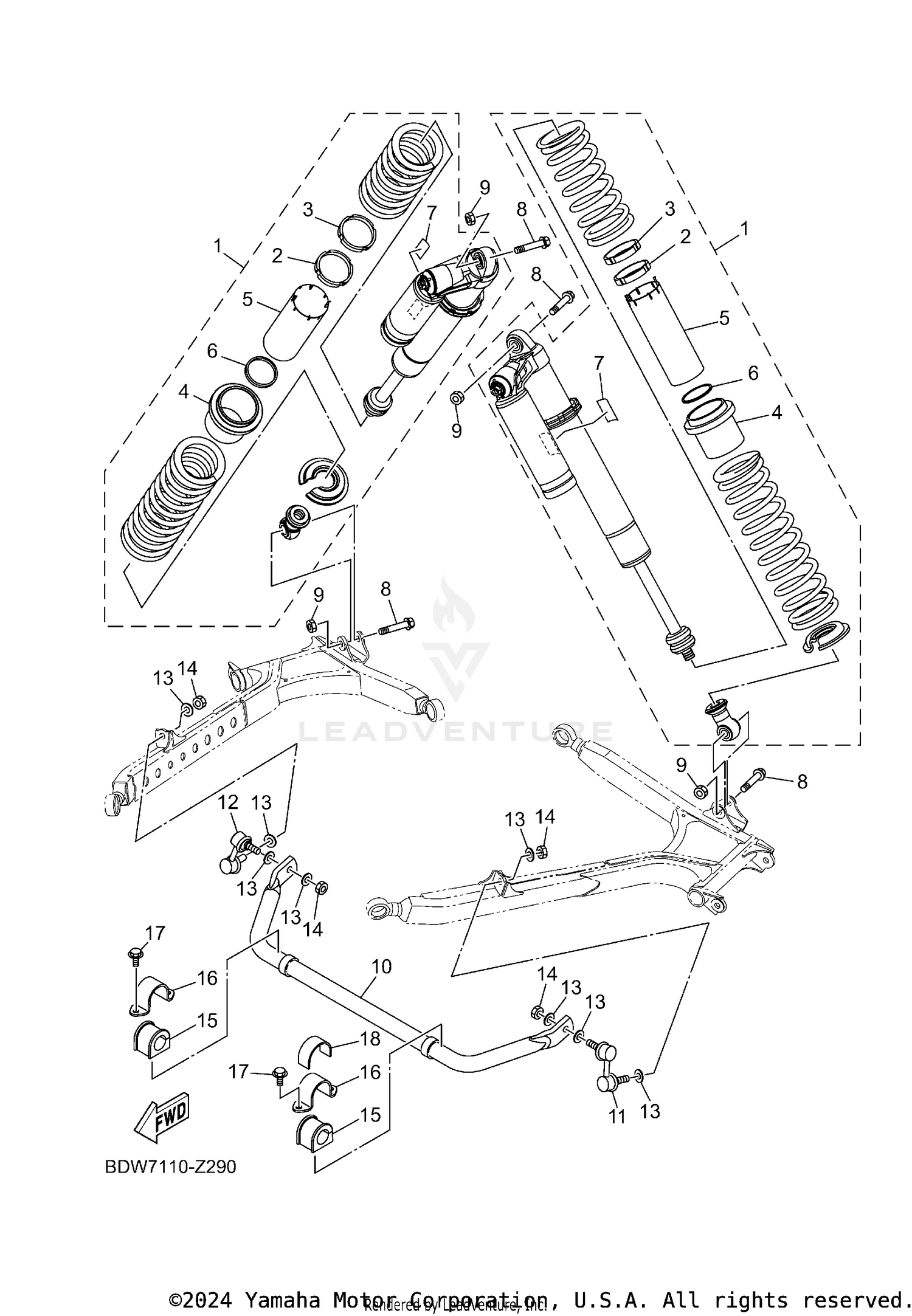

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR SHOCK ABSORBER COMP. 2
BDW-F220H-00-00
Superseded by BDW-F220H-01-00
|
$1,548.99 | ||
|
Unavailable |
|||
|
#2
. .RING, HOLD
BDW-F2973-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#3
. .RING, HOLD 2
BDW-F2981-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#4
. .SLIDER 1
BDW-F388D-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#5
. .SLEEVE
BDW-F2922-00-00
|
$424.99 | ||
|
Unavailable |
|||
|
#6
. RING
2HC-F4629-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, WARNING
B4J-F2259-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-12051-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
90185-12007-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, STABILIZER
2HC-G7491-21-00
|
$138.99 | ||
|
Unavailable |
|||
|
#11
JOINT, STABILIZER 1
BAS-F385L-04-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, STABILIZER 2
BAS-F385M-05-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-12045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, STABILIZER FRONT
2HC-F386G-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, STABILIZER FRONT
2HC-F386H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-10020-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, DAMPER 1
2HC-23421-00-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
