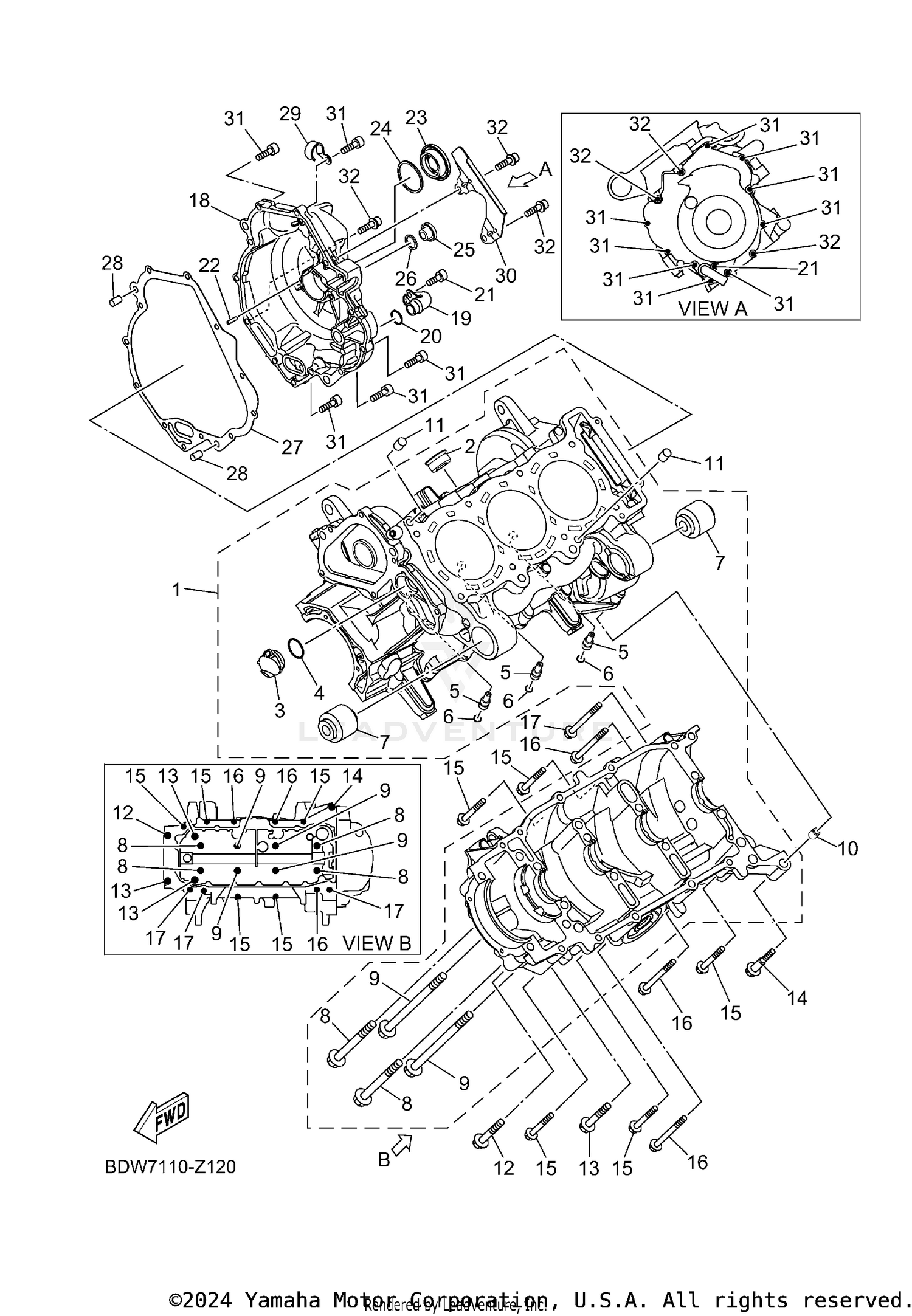

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
BDW-15109-09-00
|
$2,517.99 | ||
|
Unavailable |
|||
|
#2
PLUG, STRAIGHT SCREW
90340-27129-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, BLIND 1
8ES-15167-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-24709-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
N/A PER YMC
4XV-15155-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#6
O-RING
93210-04092-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR
2HC-15541-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-09004-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-09011-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95812-08055-00
Superseded by 95817-08055-00
|
$4.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
95812-08070-00
Superseded by 95817-08070-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-06185-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95812-06055-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95812-06080-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06123-00
Superseded by 95817-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CRANKCASE 2
BDW-15421-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#19
CONNECTOR, SUCTION PIPE
2HC-13115-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-14003-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
99480-03012-00
|
$2.15 | ||
|
Unavailable |
|||
|
#23
PLUG, STRAIGHT SCREW
90340-36004-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-357A3-00
Superseded by 93210-35804-00
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PLUG, STRAIGHT SCREW
90340-14016-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
GASKET, CRANKCASE COVER 2
2HC-15461-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90462-08225-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE
B5H-15191-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
90110-06390-00
Superseded by 90110-06387-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
