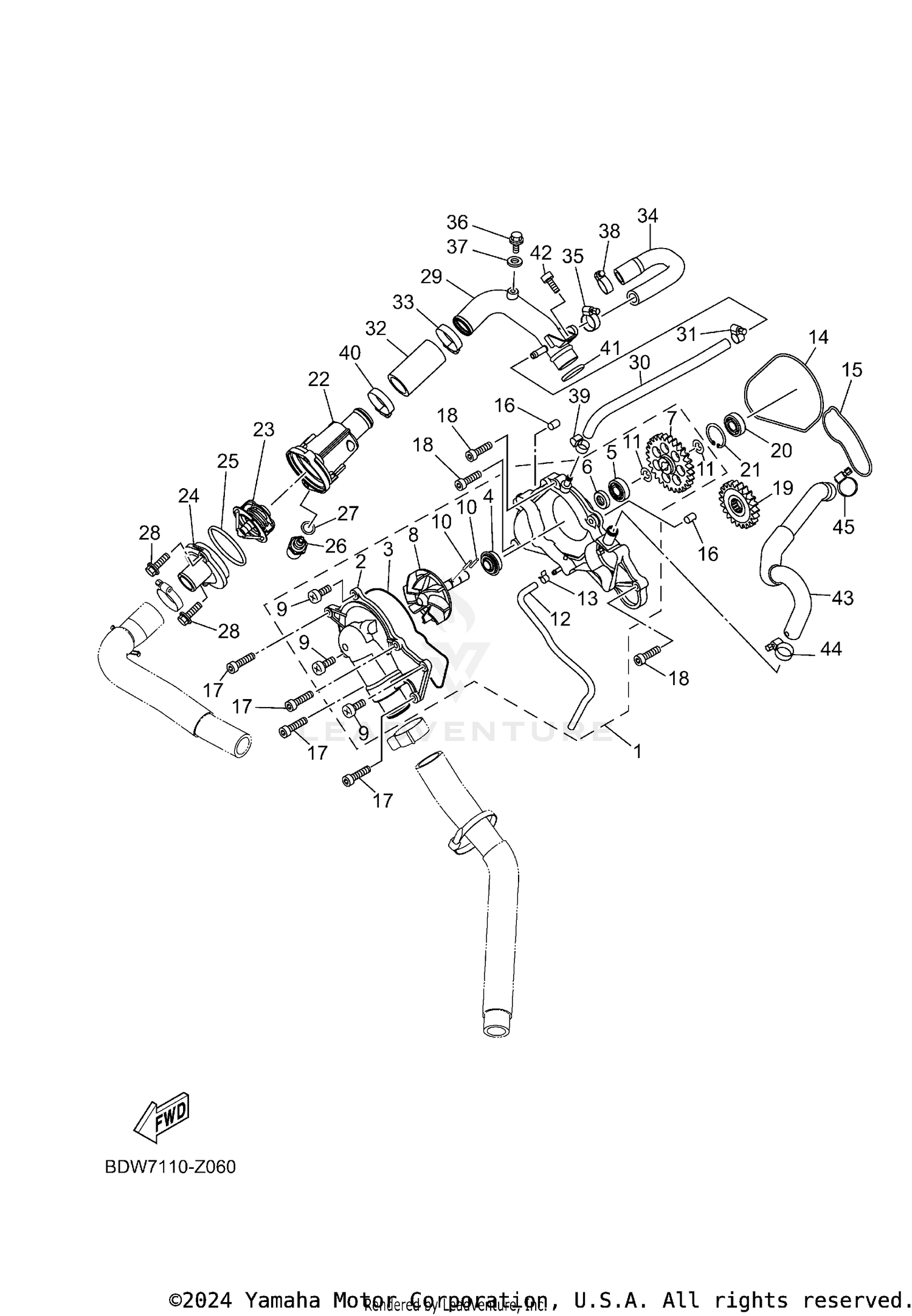

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
2HC-12420-00-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, HOUSING
2HC-12422-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, HOUSING COVER 1
8ES-12427-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
8ES-12438-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-00006-00
Superseded by 93306-00004-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (SD 10-21-5 HS)
93102-10207-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, IMPELLER SHAFT
8ES-12459-01-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
IMPELLER SHAFT ASSY
8ES-12450-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98502-06016-00
Superseded by 98580-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93604-16092-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CIRCLIP
99002-08600-00
Superseded by 99001-08600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 1
2HC-1243A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-07093-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
8ES-12435-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
8ES-12434-00-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91312-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GEAR, DRIVE
8ES-12436-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93306-00018-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
93420-26077-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOUSING, THERMOSTAT
2HC-12417-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
THERMOSTAT
5LP-12411-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, THERMOSTAT
4NX-12413-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-49046-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
THERMOSENSOR ASSY
5YP-85790-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-12790-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95022-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE 2
BDW-12482-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#30
PIPE 5
8GL-12485-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE CLAMP ASSY
90450-17001-00
Superseded by 90450-14M05-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE 7
8FA-12551-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
HOSE 6
BDW-12589-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#35
HOSE CLAMP ASSY
90450-19001-00
Superseded by 90450-18M09-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HOSE CLAMP ASSY
90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HOSE CLAMP ASSY
90450-17001-00
Superseded by 90450-14M05-00
|
$19.49 | ||
|
Unavailable |
|||
|
#40
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#41
O-RING
93210-235A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BOLT, HEXAGON SOCKET HEAD
90110-06310-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOSE 5
BDW-12588-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#44
HOSE CLAMP ASSY
90450-19001-00
Superseded by 90450-18M09-00
|
$11.49 | ||
|
Unavailable |
|||
|
#45
HOSE CLAMP ASSY
90450-22M14-00
|
$16.99 | ||
|
Unavailable |
|||
