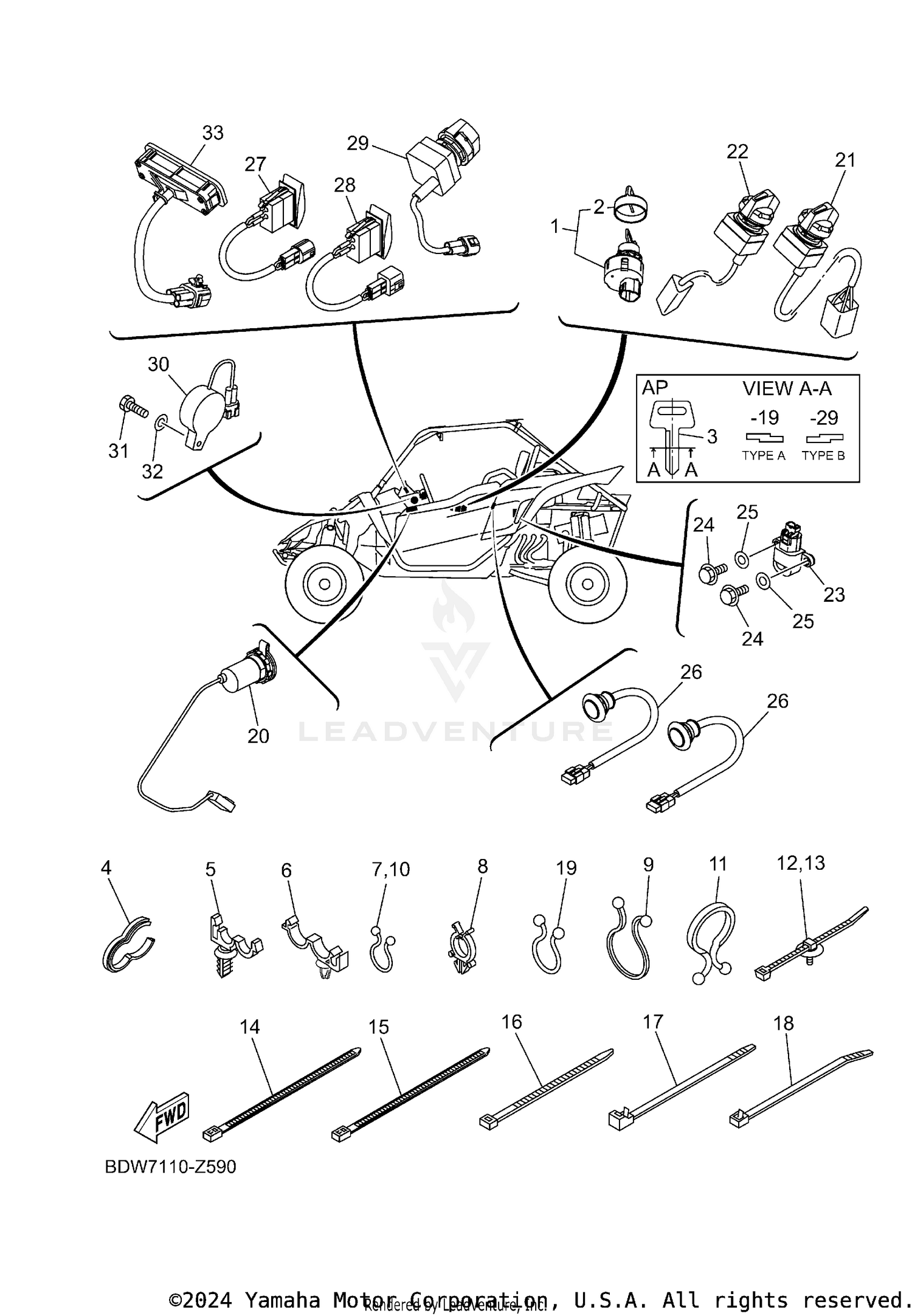

Electrical 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN SWITCH ASSY
1XD-H2510-10-00
Superseded by 1XD-H2510-11-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, KEY
1XD-H2579-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#3
KEY, MAIN SWITCH
1XD-H2511-19-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
KEY, MAIN SWITCH
1XD-H2511-29-00
|
$7.99 | ||
|
Unavailable |
|||
|
#4
CLAMP
90464-15065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-20010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-14800-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-25826-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-30040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-20804-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-37257-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
5B4-F1338-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
1NS-F1338-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-31827-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90464-48800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-51800-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-76800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-44109-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
TERMINAL COMP.
1HP-H254B-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH, LAMP
2HC-82526-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#22
SWITCH, SELECT
2HC-87280-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#23
SENSOR, LEAN ANGLE
3B4-82576-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97002-05016-00
Superseded by 97095-05016-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
ROOM LIGHT ASSY
2HC-H5440-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SWITCH
BAS-H2917-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#28
SWITCH ASSY
BAS-H259E-02-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SWITCH, SELECT
2HC-87280-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#30
BUZZER
2MB-83383-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
Unavailable |
|||
|
#33
PILOT LIGHT ASSY
BDW-83530-00-00
|
$146.99 | ||
|
Unavailable |
|||
