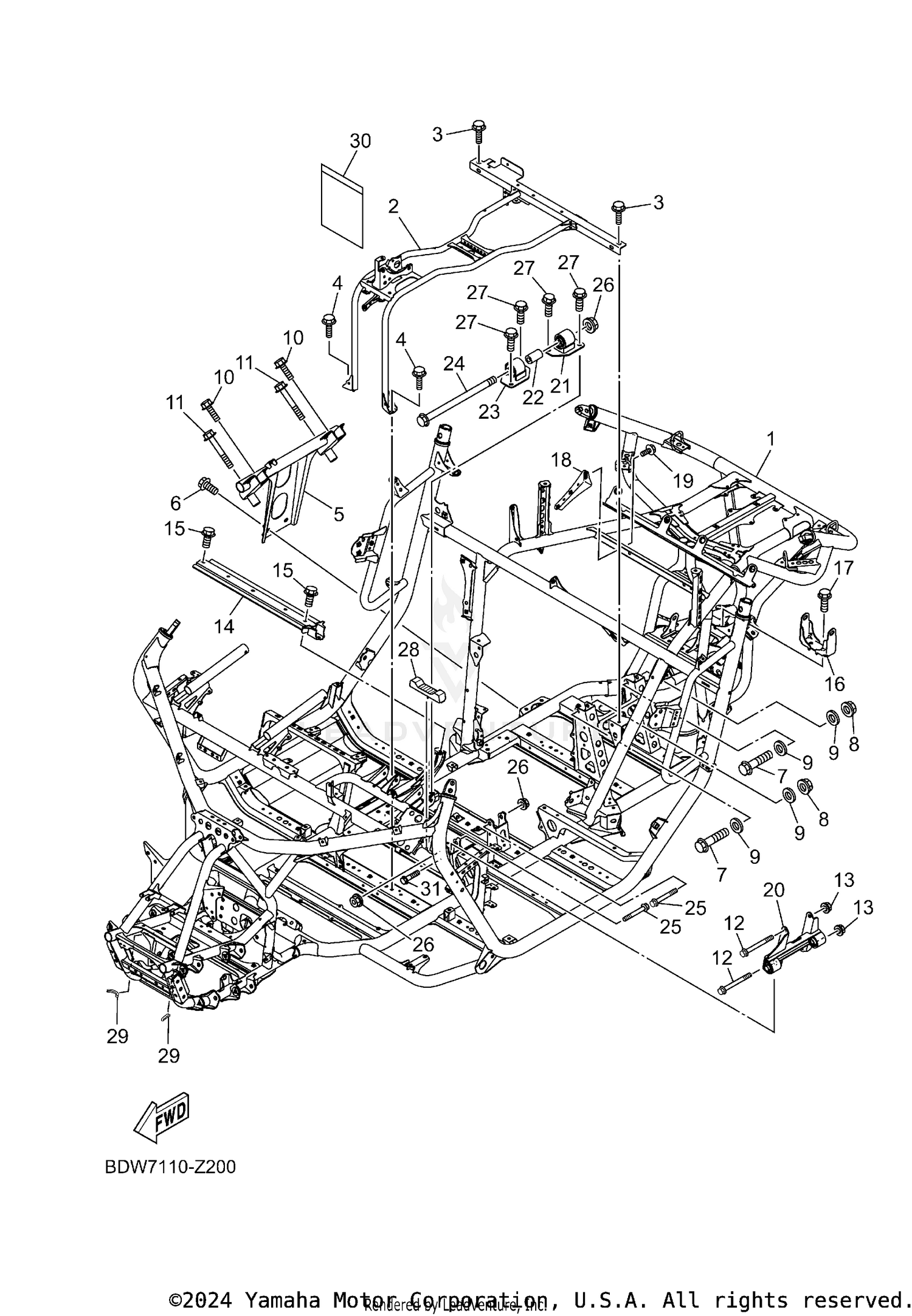

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
BDW-F1110-00-00
|
$5,365.99 | ||
|
Unavailable |
|||
|
#2
FRAME SUB COMP.
BDW-F111B-00-00
|
$250.99 | ||
|
Unavailable |
|||
|
#3
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
ENG. MOUNT COMP.
BDW-F110A-00-00
|
$85.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
95812-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95812-12070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92902-12200-00
Superseded by 92990-12200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95812-08020-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-08055-00
Superseded by 95817-08055-00
|
$4.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10176-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BRACKET, SEAT
BDW-F1349-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95812-08025-00
Superseded by 95817-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, MUFFLER
2HC-F194J-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-10016-00
|
$10.49 | ||
|
Unavailable |
|||
|
#18
BRACKET
B5H-F115C-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
STAY ASSY. ,1
BDW-F1880-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#21
STAY ASSY. ,2
BDW-F1890-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#22
COLLAR
90387-12873-00
|
$4.95 | ||
|
Unavailable |
|||
|
#23
STAY ASSY.
BDW-F465A-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-12098-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WASHER BASED
90105-12252-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
95607-12200-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95812-10016-00
|
$10.49 | ||
|
Unavailable |
|||
|
#28
DAMPER
BDW-F113B-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
MOLD, FUEL TANK
5VN-24188-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
POUCH
1P0-F8186-01-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-06833-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
