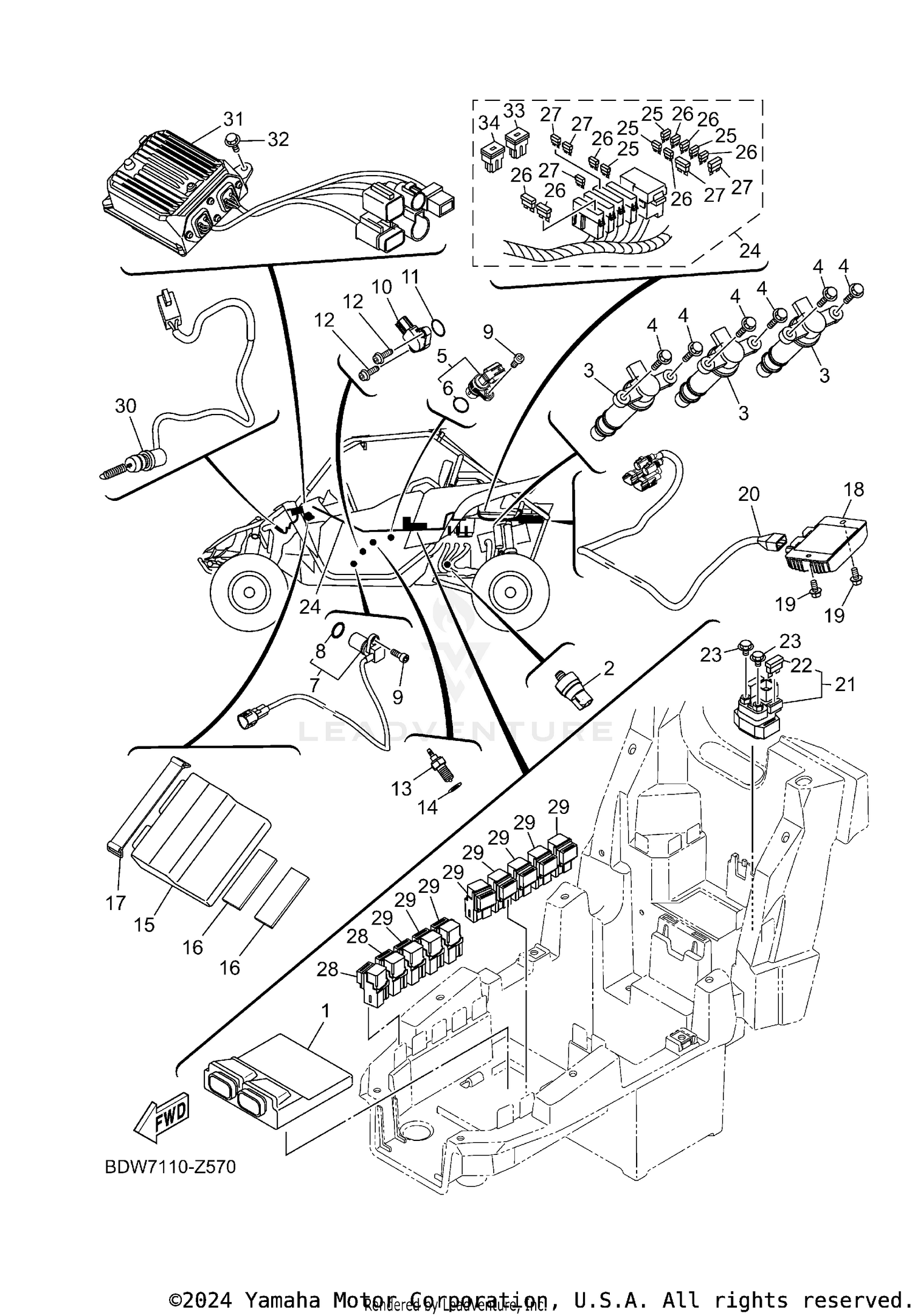

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNIT ASSY
BDW-8591A-00-00
|
$262.99 | ||
|
Unavailable |
|||
|
#2
OIL PRESSURE SWITCH ASSY
8FP-82504-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
2HC-82310-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE DEEP RECESS
95D32-06025-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, SPEED
1TP-83755-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Sensor Speed
3D8-83755-01-00
|
$144.99 | ||
|
Unavailable |
|||
|
#8
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
BOLT (4MY)
90110-06193-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR, GEAR POSITION
BDW-85899-00-00
|
$105.99 | ||
|
Unavailable |
|||
|
#11
O-RING
93210-17008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
MOTOR CONTROL UNIT ASSY
BDW-86510-10-00
|
$933.99 | ||
|
Unavailable |
|||
|
#16
DAMPER
34D-82176-00-00
Superseded by 1HP-H2176-01-00
|
$2.40 | ||
|
Unavailable |
|||
|
#17
BAND, BATTERY
2T4-82131-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GENERATOR CONTROL UNIT
BDW-81963-00-00
|
$596.99 | ||
|
Unavailable |
|||
|
#19
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WIRE, SUB LEAD
BDW-82583-00-00
|
$367.99 | ||
|
Unavailable |
|||
|
#21
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE (15A-BLUE)
36Y-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE HARNESS ASSY
BDW-H2590-11-00
Superseded by BDW-H2590-10-00
|
$685.99 | ||
|
Unavailable |
|||
|
#25
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE (30A-BL)
5JJ-82151-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RELAY ASSY (8DM-11)
8DM-81950-11-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
STOP SWITCH ASSY
B90-82530-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#31
POWER STRG. CONT. UNIT ASSY
B5H-859A0-00-00
Superseded by B5H-859A0-01-00
|
$875.99 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
. . FUSE (40A)
BDW-82151-A0-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
. . FUSE (70A)
BDW-82151-D0-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
