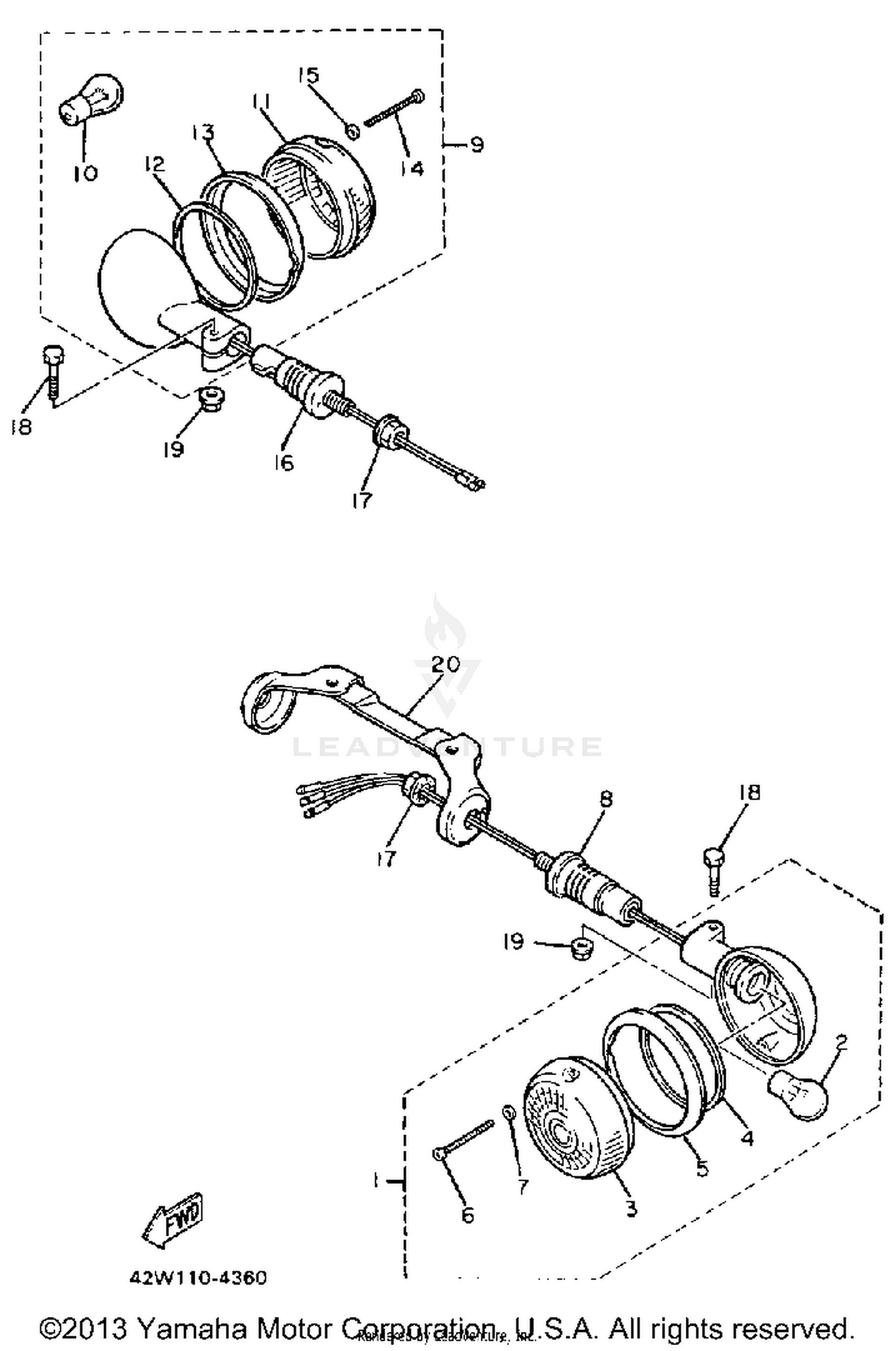

Turnsignal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
42X-83310-K0-00
Superseded by 42X-83310-K1-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, FLASHER
42X-83312-00-00
Superseded by 42X-83312-09-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, FLASHER LENS
42X-83313-00-00
Superseded by 1D6-83313-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
LENS, RIM
42X-83363-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
SCREW, COUNTERSUNK
341-83333-70-00
Superseded by 90151-03003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
42X-83359-00-00
Superseded by 3AA-84327-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
STAY,FLASHER 1
1AA-83318-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
REAR FLASHER LIGHT ASSY 1
1AA-83330-K0-00
Superseded by 1AA-83330-K9-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
LENS, FLASHER
42X-83312-00-00
Superseded by 42X-83312-09-00
|
$15.49 | ||
|
Unavailable |
|||
|
#12
GASKET, FLASHER LENS
42X-83313-00-00
Superseded by 1D6-83313-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
LENS, RIM
42X-83363-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#14
SCREW, COUNTERSUNK
341-83333-70-00
Superseded by 90151-03003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
WASHER, SPECIAL
42X-83359-00-00
Superseded by 3AA-84327-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
STAY, FLASHER 2 (24M-83318-00)
1AA-83328-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
STAY, FLASHER 2
42X-83328-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
