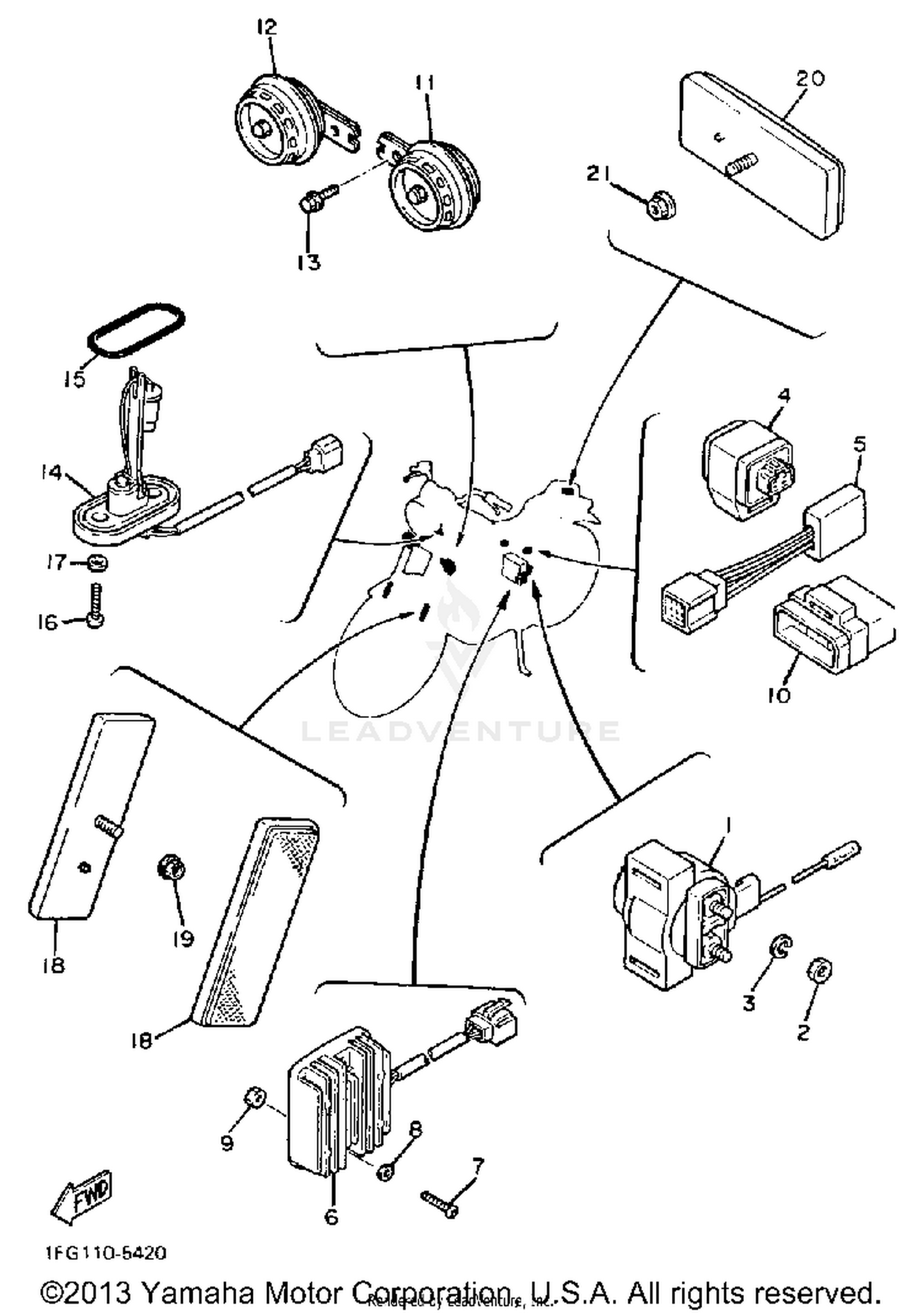

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER RELAY ASSY
36Y-81940-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT
95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$101.99 | ||
|
Unavailable |
|||
|
#5
DIODE ASSY
4U8-81980-M0-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER/REG ASSEMBLY
12R-81960-A1-00
Superseded by 3G1-81960-A1-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT
95380-06700-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
FLASHER RELAY ASSY
41R-83350-71-00
Superseded by 41R-83350-72-00
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HORN
26H-83371-20-00
Superseded by 2AE-83371-01-00
|
$185.99 | ||
|
Unavailable |
|||
|
#12
HORN
26H-83371-30-00
Superseded by 2AE-83371-11-00
|
$171.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (SMALL HEAD)
95023-08012-00
Superseded by 95024-08012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENDER UNIT ASSY, FU
1FG-85752-00-00
Superseded by 1FK-85752-02-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, SENDER UNIT
42X-85753-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
REFLECTOR ASSEMBLY
42X-85110-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
REAR REFLECTOR ASSEMBLY
55R-85130-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#21
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$9.49 | ||
|
Unavailable |
|||
