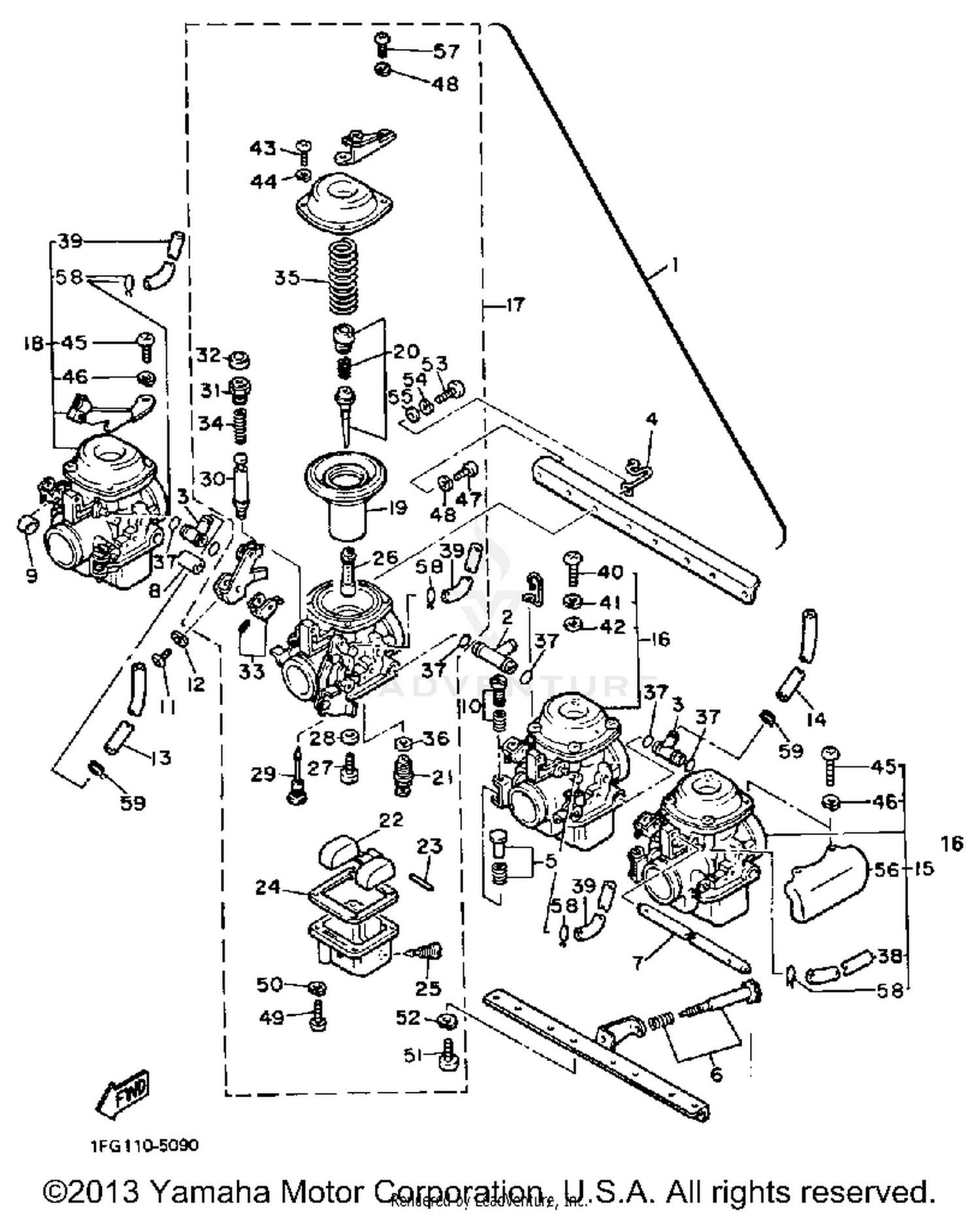

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOKASSEMB
1FG-14900-00-00
|
|||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOKASSEMB
1J-J1490-00-00
|
|||
|
Unavailable |
|||
|
#2
CONNECTOR
29R-1410G-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#3
CONNECTOR
29R-1410F-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#4
CLIP
4H7-14919-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#5
THROTTLE ADJUST SCREW 2 SET 2
5G2-W1492-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
THROTTLE ADJUST SCREW 3 SET 3
5G2-W1493-00-00
|
$25.60 | ||
|
Unavailable |
|||
|
#7
UNAVAILABLE IN PRICE BOOK
29-R1417-70-00
|
|||
|
Unavailable |
|||
|
#8
UNAVAILABLE IN PRICE BOOK
29-R1414-90-00
|
|||
|
Unavailable |
|||
|
#9
WASHER
4H7-14973-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#10
THROTTLE ADJUST SCREW 1 SET 1
5G2-W1491-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98501-03016-00
Superseded by 98507-03016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-03100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
UNAVAILABLE IN PRICE BOOK
1FG-14197-00-00
|
|||
|
Unavailable |
|||
|
#14
PIPE
1FG-14147-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#15
UNAVAILABLE IN PRICE BOOKASSE
1J-J1490-10-00
|
|||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
1FG-14901-00-00
|
$366.99 | ||
|
Unavailable |
|||
|
#16
CARBURETOR ASSEMBLY 2ASSEMBLY
1FG-14902-00-00
|
$452.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOKASSE
1J-J1490-20-00
|
|||
|
Unavailable |
|||
|
#17
CARBURETOR ASSEMBLY 3ASSEMBLY
1FG-14903-00-00
|
$505.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOKASSE
1J-J1490-30-00
|
|||
|
Unavailable |
|||
|
#18
CARBURETOR ASSEMBLY 4ASSEMBLY
1FG-14904-00-00
|
$482.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 4
1JJ-14904-00-00
|
$277.99 | ||
|
Unavailable |
|||
|
#19
DIAPHRAGM ASSEMBLY
29R-14170-00-00
|
$148.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE SET
1FG-1490J-00-00
|
$35.94 | ||
|
Unavailable |
|||
|
#21
NEEDLE VALVE ASSY
10L-14390-02-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLOAT
4H7-14985-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#23
PIN, FLOAT
4H7-14186-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#24
GASKET, FLOAT CHMBR (4H7-14
4H7-14984-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#25
PLUG, DRAIN
4X7-14191-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
NOZZLE, MAIN
29R-14921-32-00
|
$29.38 | ||
|
Unavailable |
|||
|
#27
JET, MAIN #107
4H7-14925-07-00
|
$11.39 | ||
|
Unavailable |
|||
|
#28
WASHER, MAIN JET
4H7-14945-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
JET, PILOT #36.5 (#36.5)
4H7-14948-36-00
|
$6.26 | ||
|
Unavailable |
|||
|
#30
PLUNGER, STARTER
4H7-14171-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#31
CAP, PLUNGER
4H7-14174-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#32
COVER, PLUNGER CAP
4H7-14173-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
STARTER LEVER SET
5G2-W1495-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, PLUNGER
4H7-14135-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#35
SPRING, DIAPHRAGM
29R-14933-00-00
|
$9.50 | ||
|
Unavailable |
|||
|
#36
WASHER
4H7-14952-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
3J3-14147-00-00
Superseded by 93210-07180-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
UNAVAILABLE IN PRICE BOOK
1F-G1414-80-0
|
|||
|
Unavailable |
|||
|
#39
UNAVAILABLE IN PRICE BOOK
1F-G1414-90-0
|
|||
|
Unavailable |
|||
|
#40
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, PAN HEAD
98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#45
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Unavailable |
|||
|
#46
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#47
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
Unavailable |
|||
|
#51
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#52
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW, PAN HEAD
98580-05012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
Unavailable |
|||
|
#55
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
COVER, CARB 1
1FG-14283-00-00
|
$21.12 | ||
|
Unavailable |
|||
|
#57
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#59
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
