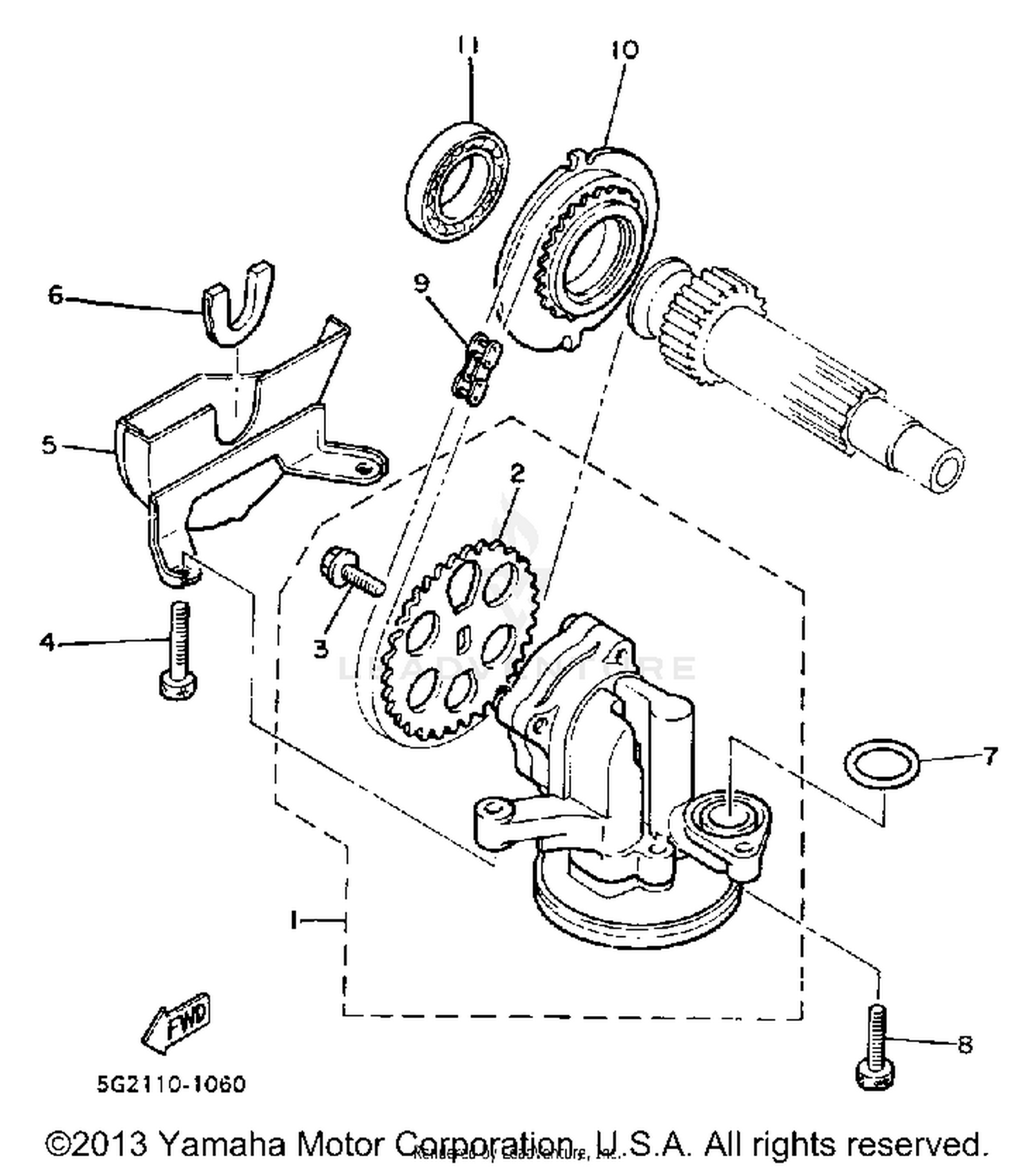

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSEMBLY
5G2-13300-00-00
|
$208.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, DRIVEN
5G2-13355-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
90105-06154-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06035-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, PUMP GEAR
4H7-13327-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#6
GROMMET, GEAR COVER
4H7-13328-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-18319-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CHAIN (DID25 62L)
94580-25062-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET, DRIVE
4H7-13354-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93315-23208-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
