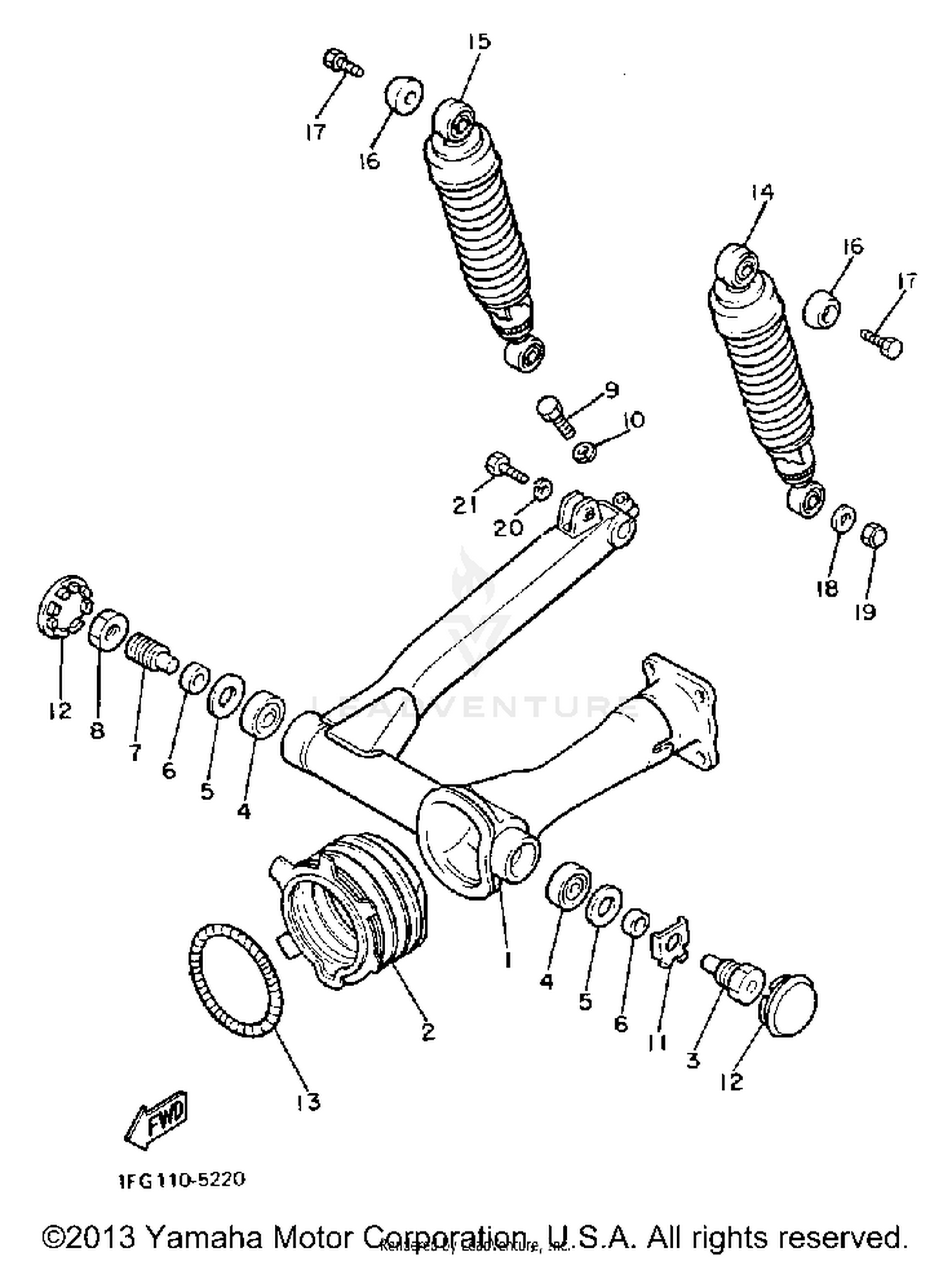

Swing Arm Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM (4H7-22110-00-98)
16G-22110-00-98
|
$421.99 | ||
|
Unavailable |
|||
|
#2
BOOT, RUBBER
1AA-22189-00-00
|
$32.70 | ||
|
Unavailable |
|||
|
#3
SHAFT, PIVOT
4H7-22141-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93332-00010-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-25017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-17543-00
Superseded by 90387-17011-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, PIVOT
1J7-22141-00-00
Superseded by 15B-22141-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
1J7-22143-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97026-08035-00
Superseded by 97017-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, LOCK
90215-22238-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER
2H7-2219X-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90506-07136-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHK/ABS ASSEMBLY, REAR
1FG-22210-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#15
SHK/ABS ASSEMBLY, REAR
1FG-22210-10-00
|
$92.80 | ||
|
Unavailable |
|||
|
#16
WASHER 1
42X-22243-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (SMALL HEAD)
95023-08020-00
Superseded by 95024-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-100A1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT
90106-10030-00
Superseded by 90106-10052-00
|
$8.49 | ||
|
Unavailable |
|||
