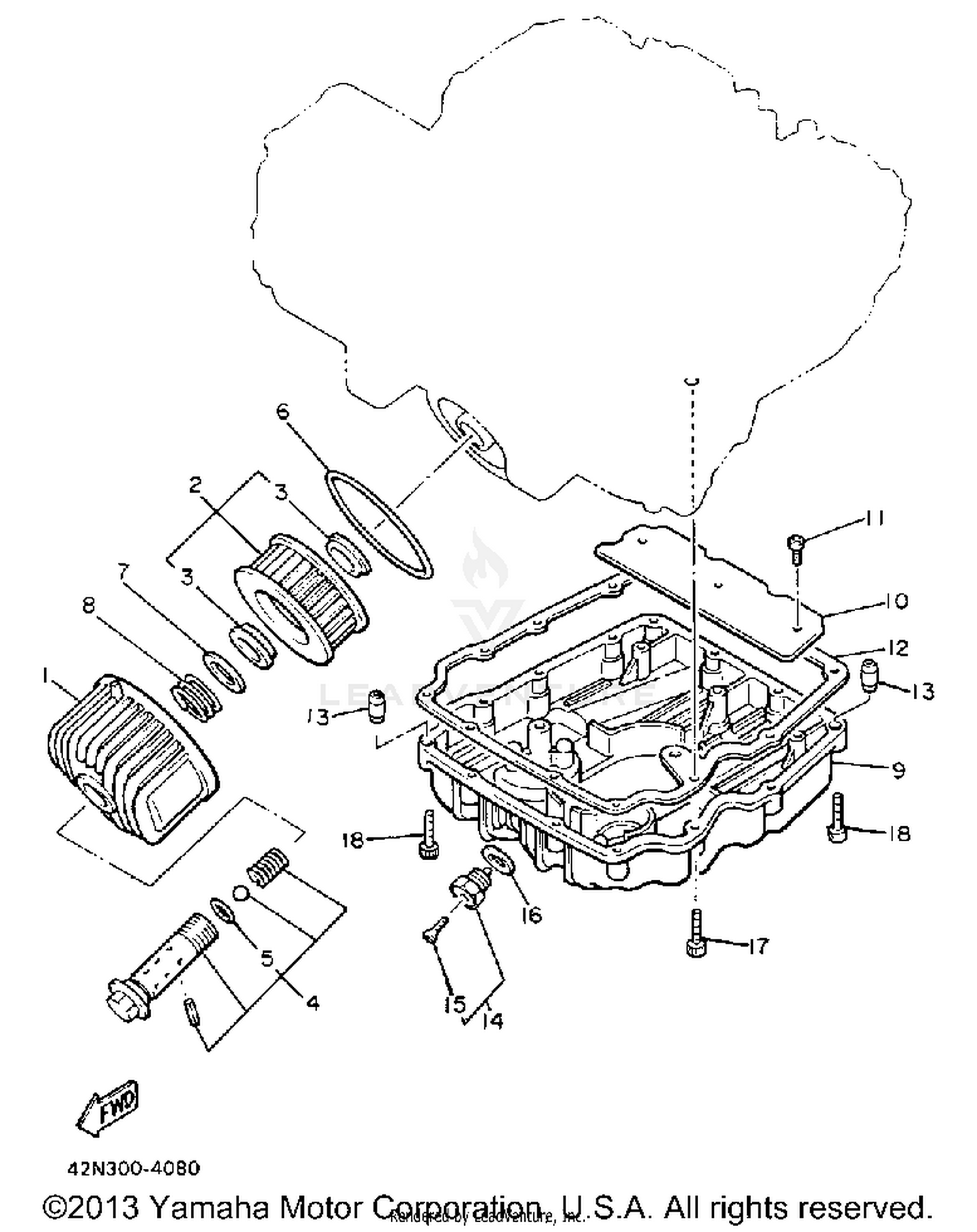

Oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL ELEMENT
4H7-13447-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ELEMENT, OIL CLEANER
1L9-13441-11-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-23193-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BY-PASS VALVE ASSY
1L9-13340-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-16629-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-87723-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-21608-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-20422-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, STRAINER
31A-13417-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#10
PLATE, BAFFLE LOWER
4H7-13337-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, STRNR COVER
4BB-13414-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98901-06008-00
Superseded by 98980-06008-00
|
$0.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
