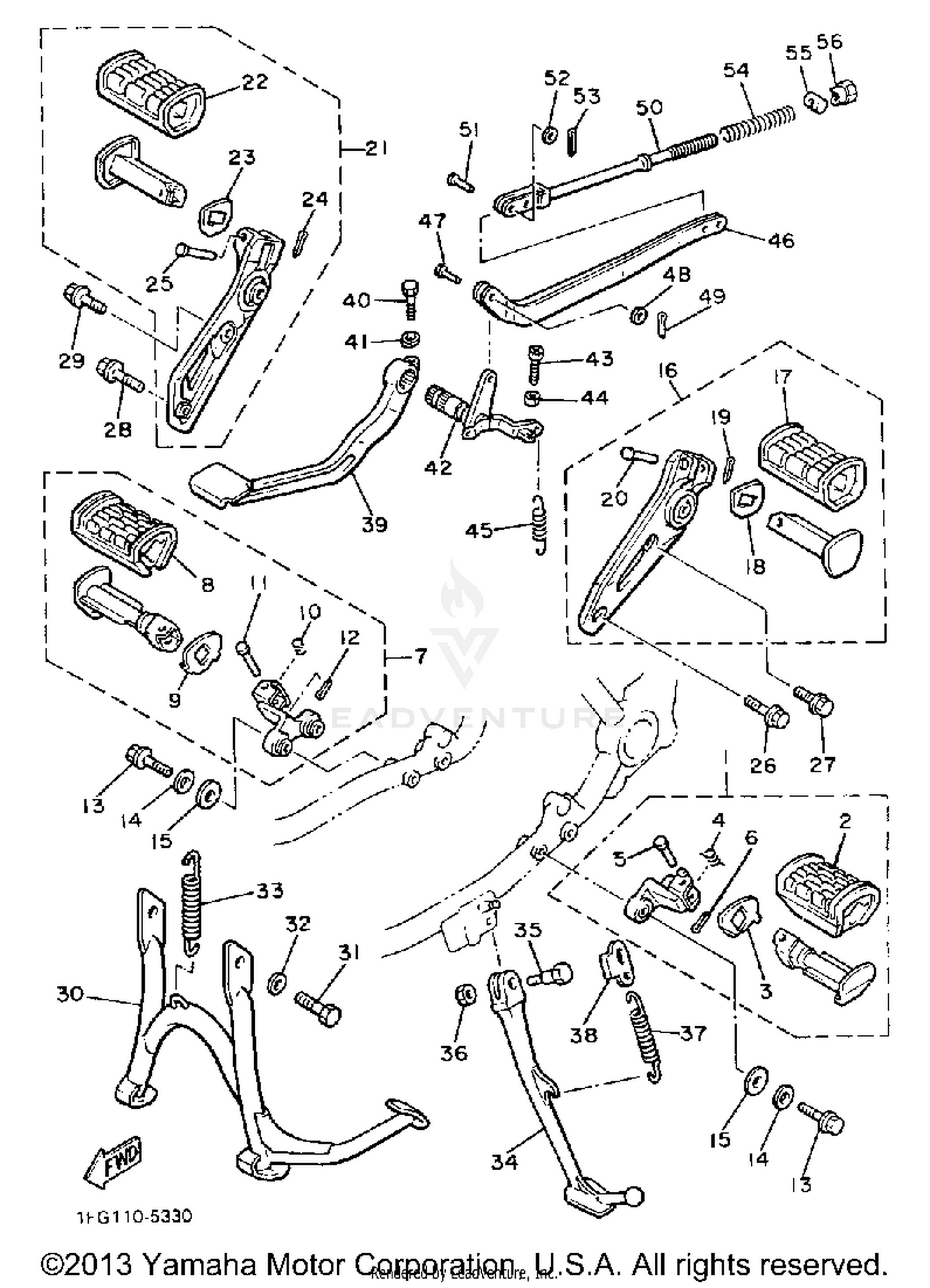

Stand-footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FOOTREST ASSEMBLY L
1AA-27410-00-R4
|
$127.99 | ||
|
Unavailable |
|||
|
#2
COVER, FOOTREST
26H-27413-02-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, FOOTREST
26H-27417-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#4
SPRING, TORSION
90508-20154-00
|
$3.65 | ||
|
Unavailable |
|||
|
#5
PIN
91701-08038-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FRT FOOTREST ASSEMBLY R
1AA-27420-00-R4
|
$143.99 | ||
|
Unavailable |
|||
|
#8
COVER, FOOTREST
26H-27413-02-00
|
$46.99 | ||
|
Unavailable |
|||
|
#9
WASHER, FOOTREST
26H-27417-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
SPRING, TORSION
90508-20155-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
91701-08038-00
|
$4.45 | ||
|
Unavailable |
|||
|
#12
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-08211-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, FOOTREST
1AA-27415-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90202-13149-00
|
$4.90 | ||
|
Unavailable |
|||
|
#16
REAR FTRST ASSEMBLY 1
1AA-Y2743-00-00
|
$224.99 | ||
|
Unavailable |
|||
|
#17
COVER, RR FOOTREST
3H5-27433-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPECL SHAP
90209-18190-00
|
$4.15 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER
91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, CLEVIS
91701-06038-00
Superseded by 91702-06038-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
REAR FTRST ASSEMBLY 2
1AA-Y2744-00-00
|
$218.99 | ||
|
Unavailable |
|||
|
#22
COVER, RR FOOTREST
3H5-27444-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#23
WASHER, SPECL SHAP
90209-18190-00
|
$4.15 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER
91490-16020-00
|
$6.70 | ||
|
Unavailable |
|||
|
#25
PIN, CLEVIS
91701-06038-00
Superseded by 91702-06038-00
|
$2.60 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (SMALL HEAD)
95023-08035-00
Superseded by 95024-08035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (SMALL HEAD)
95023-08020-00
Superseded by 95024-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (SMALL HEAD)
95023-08035-00
Superseded by 95024-08035-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (SMALL HEAD)
95023-08020-00
Superseded by 95024-08020-00
|
$9.49 | ||
|
Unavailable |
|||
|
#30
STAND, MAIN
1AA-27111-00-R4
|
$166.99 | ||
|
Unavailable |
|||
|
#31
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-10752-00
Superseded by 90201-100A1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPRING, TENSION
90506-35149-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
STAND, SIDE
1AA-27311-01-R4
Superseded by 1UF-27311-00-R4
|
$121.99 | ||
|
Unavailable |
|||
|
#35
BOLT
90109-10590-00
Superseded by 90109-10473-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCKING
90185-10037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, TENSION
90506-29266-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
LINK, SIDE STAND
2KT-27315-00-00
Superseded by 3VD-27315-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PEDAL, BRAKE
1AA-27211-00-93
|
$76.99 | ||
|
Unavailable |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#42
SHAFT, BRAKE PEDAL
1AA-27212-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#43
SCREW, HEXAGON
90153-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
90170-06184-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
SPRING, TENSION
90506-20193-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
ROD, JOINT
1AA-27241-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#47
PIN, CLEVIS
90240-06006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
ROD, BRAKE
1AA-27231-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#51
PIN, CLEVIS
90240-06103-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
Unavailable |
|||
|
#53
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#54
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
NUT
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
