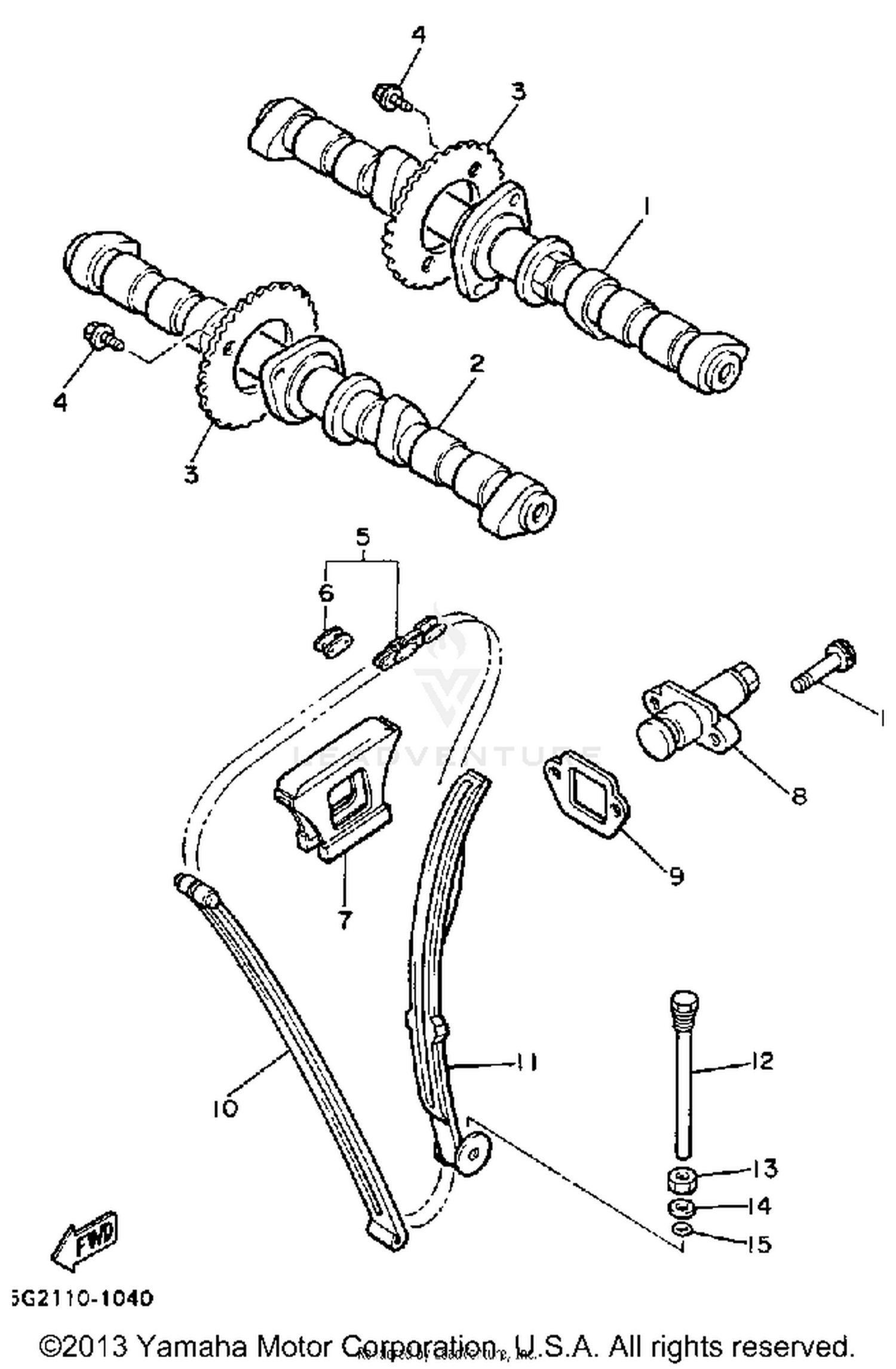

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
4K0-12171-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#2
CAMSHAFT 2
22N-12181-00-00
|
$166.99 | ||
|
Unavailable |
|||
|
#3
SPROCKET, CAM CHAIN (4G0-12176-
4G0-12176-01-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-07087-00
Superseded by 90105-07004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN (BF05M-120L)
94500-02120-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CHAIN (BF05M)
94600-02001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, STOPPER 2
4H7-12241-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER ASSY, CAM CHAIN
12R-12210-00-00
Superseded by 4KM-12210-01-00
|
$98.99 | ||
|
Unavailable |
|||
|
#9
GASKET, TENSONER CASE (5G2-1221
3YX-12213-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, CHAIN 1
4H7-12251-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, CHAIN 2
4H7-12252-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-10570-00
|
$18.99 | ||
|
Unavailable |
|||
|
#13
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING
93210-08006-00
Superseded by 93210-08003-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
