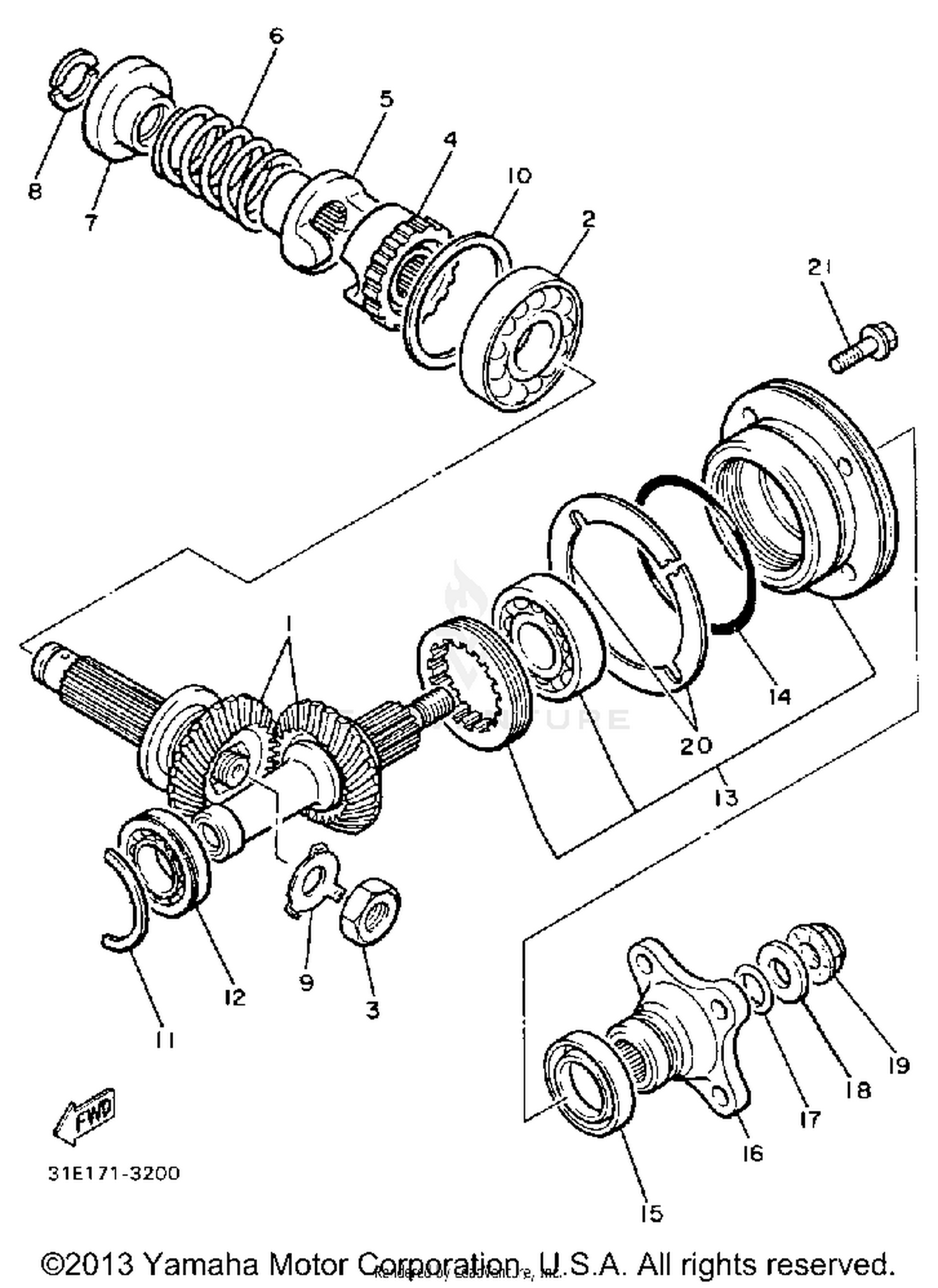

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MIDDLE GEAR
31A-W1751-01-00
Superseded by 31A-W1751-02-00
|
$655.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20709-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPEC''L SHAPE
90179-18360-00
|
$4.16 | ||
|
Unavailable |
|||
|
#4
CAM,DRIVE
31A-17526-00-00
Superseded by 31A-17526-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAM, DRIVEN
31A-17527-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-70762-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER
4H7-17524-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#8
WASHER, THRUST
3H5-17529-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, LOCK
90215-23265-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SHIM, THRUST (0.40T)
4H7-17537-00-40
|
$6.99 | ||
|
Unavailable |
|||
|
#
SHIM, THRUST (0.30T)
4H7-17537-00-30
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.20T)
4H7-17537-00-20
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93440-47081-00
Superseded by 93440-45144-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-00519-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING
31A-W1752-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-71360-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93101-35097-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FLANGE, MIDDLE GEAR
4H7-17555-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#17
O-RING
93210-14359-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-14633-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-14317-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.20T)
3JB-17531-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.40T)
3JB-17531-40-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.15T)
3JB-17531-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.30T)
3JB-17531-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION
4H7-17531-00-15
|
$8.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-08030-00
Superseded by 95817-08030-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
