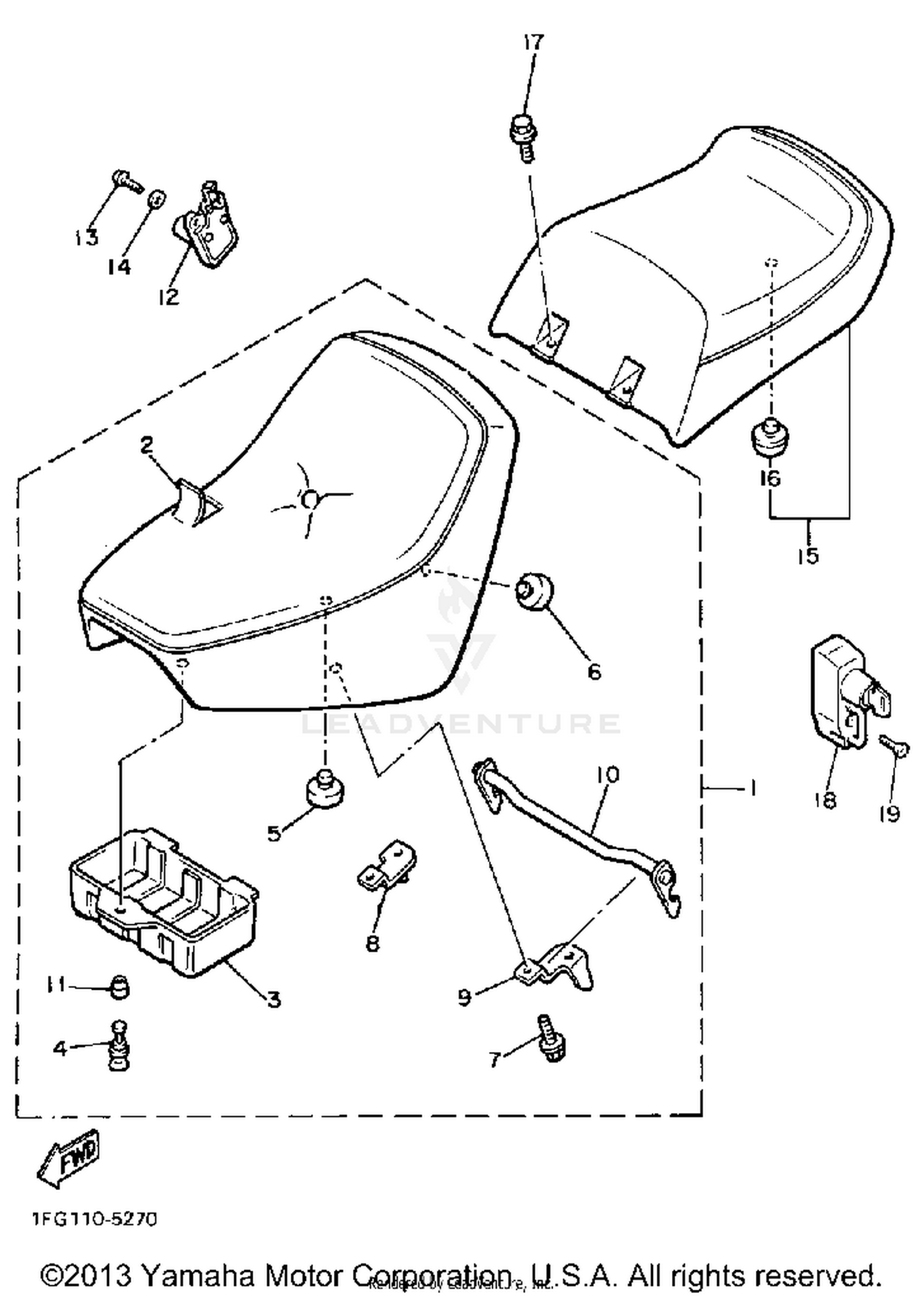

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY (1AA-24710
1AA-24710-11-00
|
$231.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
1AA-24711-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#3
BOX 1
1AA-2473R-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#4
PLUNGER
4X7-2473V-02-00
|
$4.75 | ||
|
Unavailable |
|||
|
#5
STOPPER, MAIN STAND
371-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, SEAT
22W-24741-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, SEAT
1AA-24738-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#9
BRACKET, SEAT
1AA-24728-00-00
|
$3.70 | ||
|
Unavailable |
|||
|
#10
LEVER, SEAT
1AA-24776-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#11
GROMMET
4X7-24742-02-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
SEAT LOCK ASSEMBLY (10L-24705-0
23W-24705-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#13
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
TANDEM SEAT ASSEMBLY
1NH-24750-00-00
|
$278.99 | ||
|
Unavailable |
|||
|
#16
PAD, SEAT
1L9-24741-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-06088-00
Superseded by 90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06154-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
