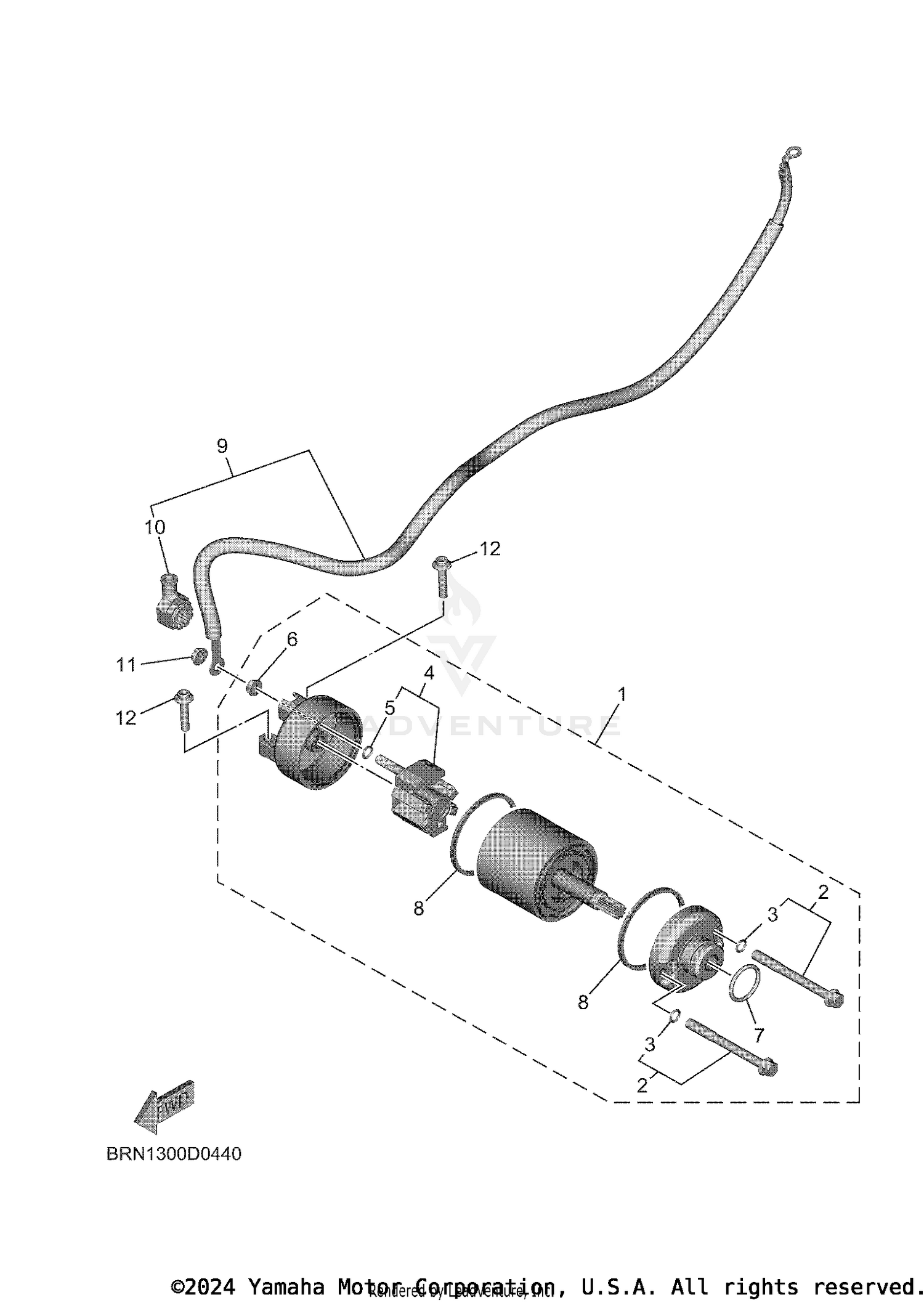

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
BFD-81890-00-00
|
$265.99 | ||
|
Unavailable |
|||
|
#2
BOLT
28P-81826-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
3TB-81847-00-00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRUSH HOLDER ASSY
4B5-81840-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
3TB-81847-00-00
|
$2.49 | ||
|
Unavailable |
|||
|
#6
NUT
4XV-8182A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1FK-81847-00-00
Superseded by 93210-24235-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET
11H-81844-00-00
Superseded by 35C-81844-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CORD, STARTER MOTOR
BME-81815-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#10
CAP
4B5-81871-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
4XV-8182A-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06388-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
