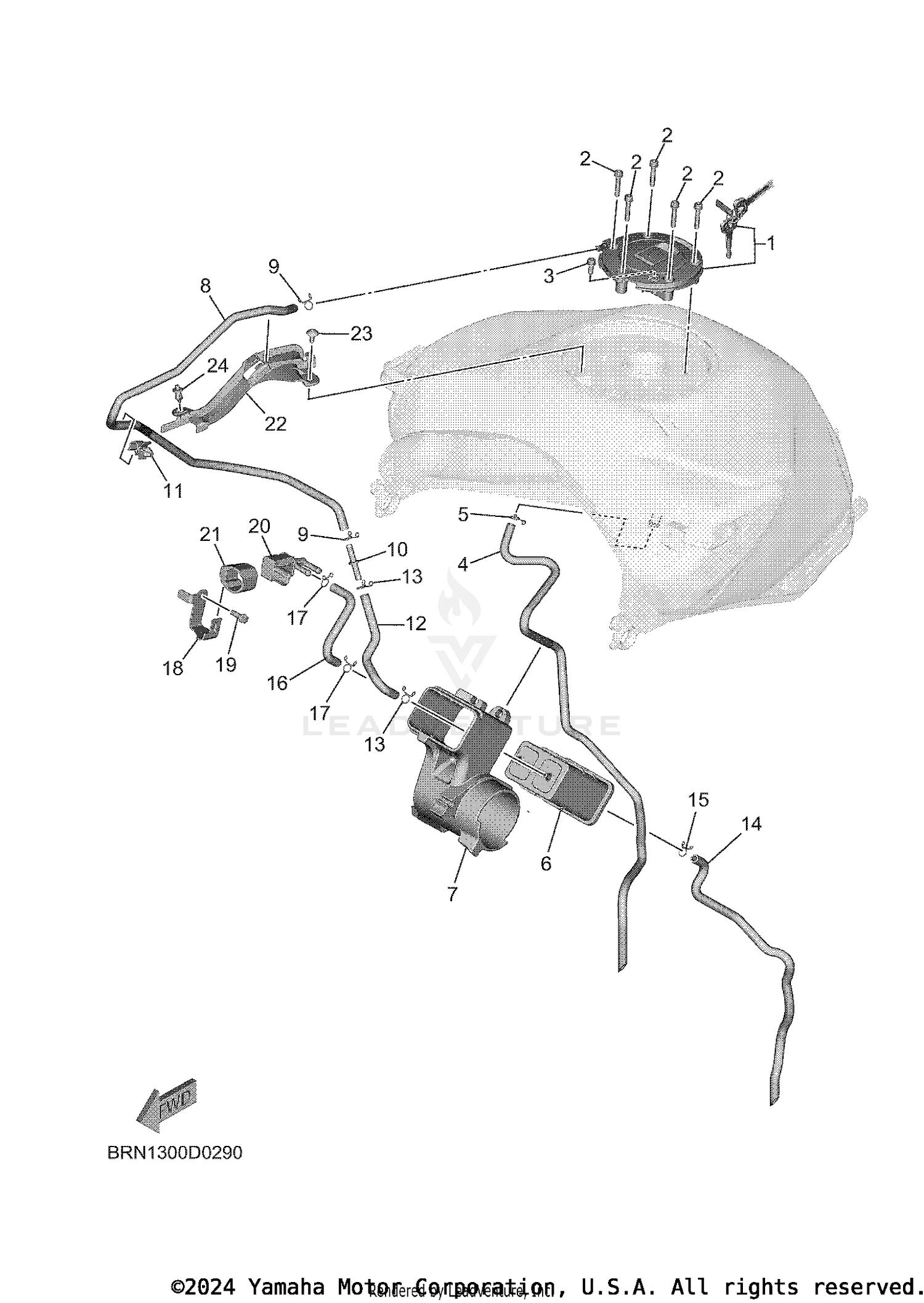

Fuel Tank 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP ASSY
BME-24602-00-00
|
$275.99 | ||
|
Unavailable |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
90110-05082-00
|
$2.70 | ||
|
Unavailable |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-05081-00
|
$2.65 | ||
|
Unavailable |
|||
|
#4
PIPE 5
BRN-24315-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
CLIP
90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CANISTER ASSY
B7N-24170-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 3
BME-24183-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#8
PIPE 2
BRN-24312-10-00
|
|||
|
Unavailable |
|||
|
#9
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#10
JOINT
4XY-14568-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-10M32-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE 3
BME-24313-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#13
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#14
PIPE 6
BME-24316-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#15
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIPE 7
BME-24317-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#18
BRACKET
BRN-2612E-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
90105-06187-00
Superseded by 95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SOLENOID VALVE ASS
B7N-86120-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND 1
BME-24398-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
HOLDER
BRN-2419A-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
BOLT
90109-05022-00
|
$1.45 | ||
|
Unavailable |
|||
|
#24
RIVET
90269-06001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
