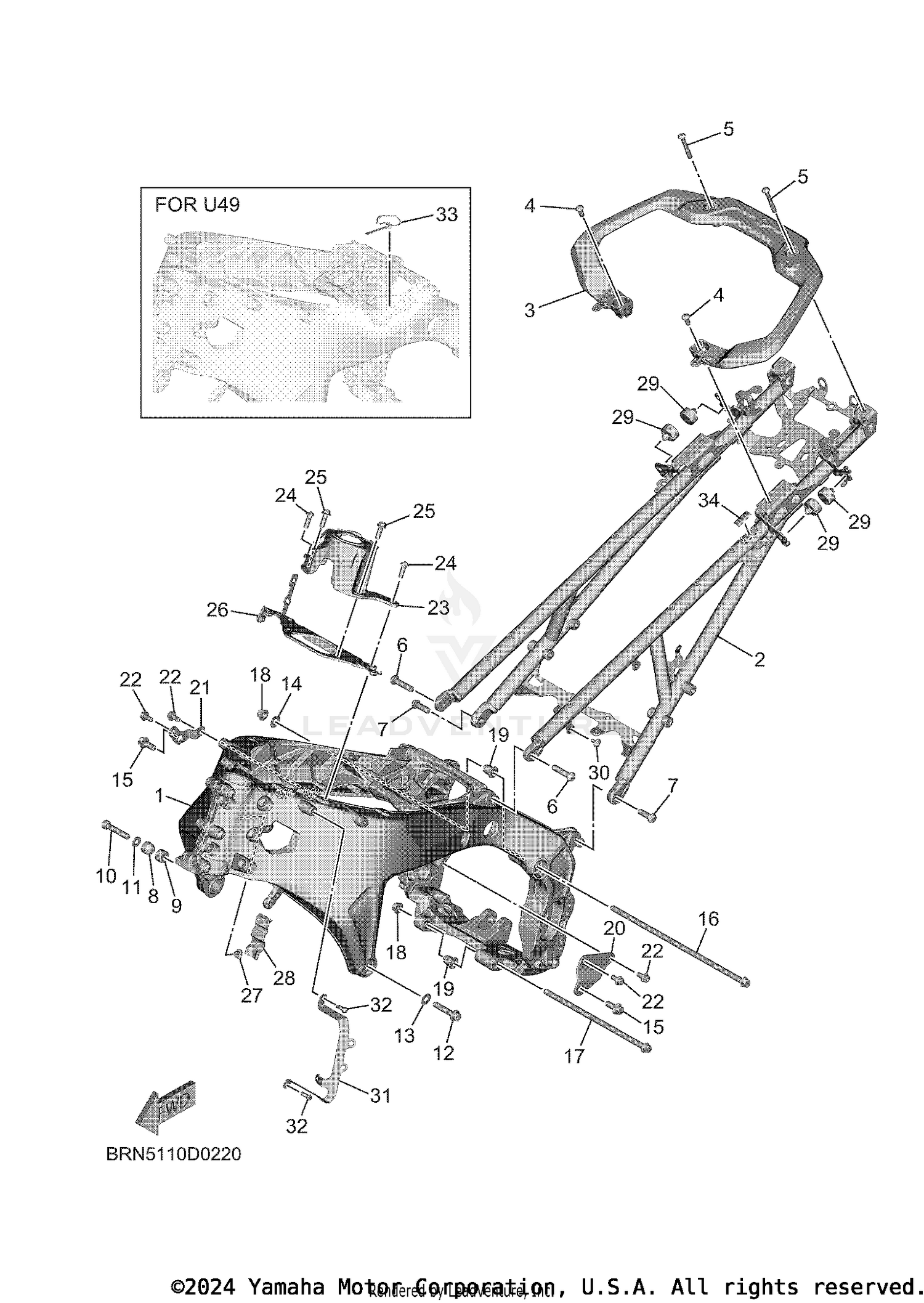

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SUB COMP.
BRN-2111B-09-00
|
|||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
BRN-21190-09-00
|
$945.99 | ||
|
Unavailable |
|||
|
#3
HANDLE, SEAT
BRN-24773-09-00
|
$170.99 | ||
|
Unavailable |
|||
|
#4
SCREW, WITH WASHER
90159-08005-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, WITH WASHER
90159-08006-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
90149-10076-00
Superseded by 90149-10077-00
|
$4.20 | ||
|
Unavailable |
|||
|
#7
SCREW
90149-10074-00
Superseded by 90149-10060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOSS, ENGINE MOUNT
2C0-21414-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOSS, ENGINE MOUNT
5VY-21424-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCK
90110-10058-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10083-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCK
90110-10058-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
WASHER PLATE
90201-10084-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE DEEP RE
95D37-10025-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT FLANGE
90105-10487-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10437-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, ENGINE 1
B5U-21315-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, ENGINE 2
B5U-21316-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-085E2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY 1
BME-2137F-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#24
BOLT
90109-08246-00
Superseded by 90109-08247-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
BOLT
90110-08126-00
Superseded by 91312-08030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY 2
BRN-2137G-00-00
|
$105.99 | ||
|
Unavailable |
|||
|
#27
PLUG, BLIND
5VX-21289-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER
34D-82176-00-00
Superseded by 1HP-H2176-01-00
|
$2.40 | ||
|
Unavailable |
|||
|
#29
WEIGHT
B5U-27913-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. SOCKET BUTTON
90111-06119-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET 4
BRN-2161E-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#32
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
LABEL, CAUTION
3TB-24877-A1-00
|
$5.99 | ||
|
Unavailable |
|||
