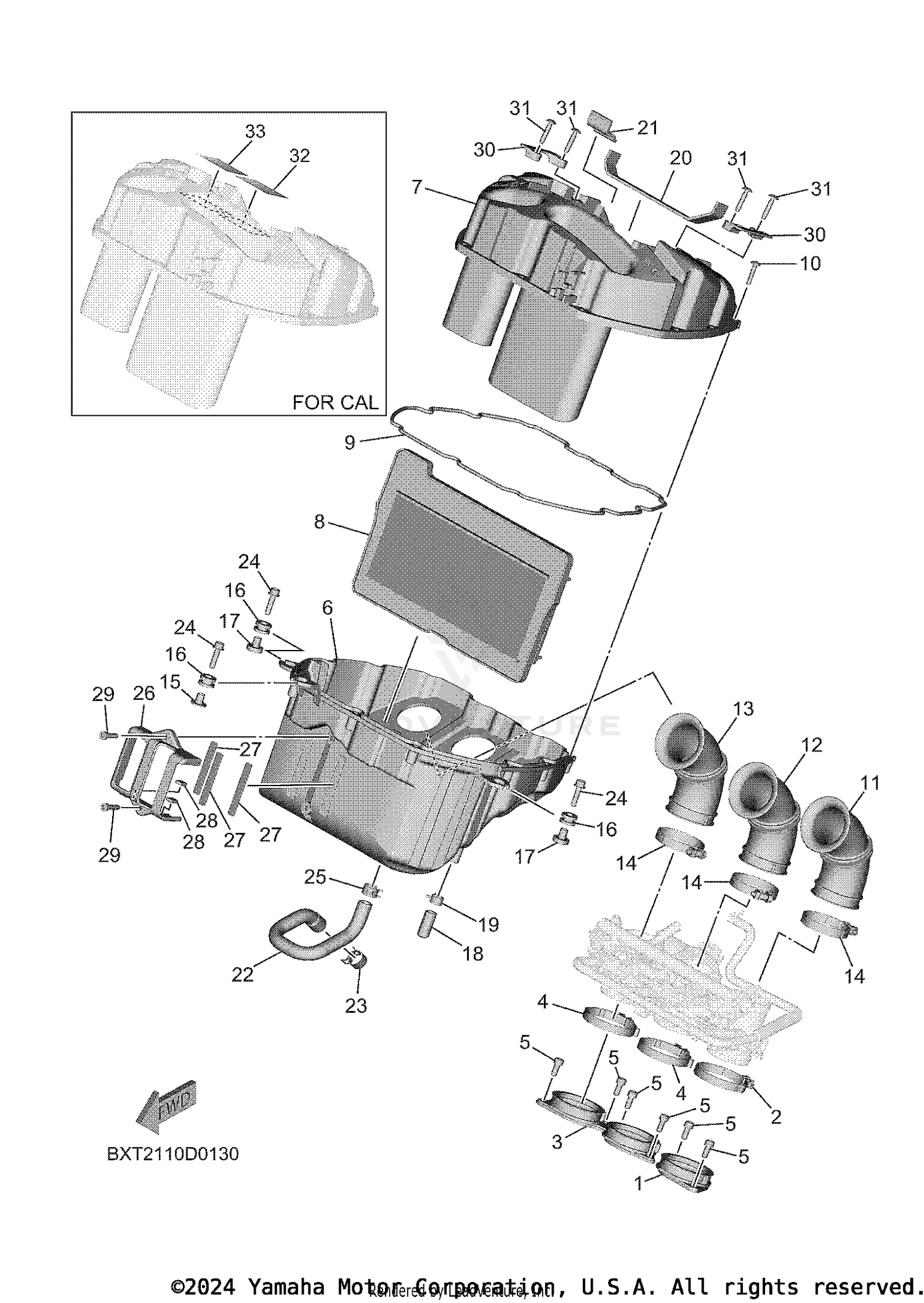

Intake 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT INTAKE 1
B7N-13635-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90450-58008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, INTAKE 2
B7N-13636-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90450-58008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
BOLT
90110-06168-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, AIR CLEANER 1
BME-14411-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#7
CASE, AIR CLEANER 2
BME-14421-20-00
|
$64.99 | ||
|
Unavailable |
|||
|
#8
ELEMENT, AIR CLEANER
BME-14451-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#9
SEAL
BME-14452-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, ROUND TAPPING
90160-05013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, AIR CLEANER
B7N-14453-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, AIR CLEANER
B7N-14463-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
B7N-14454-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE CLAMP ASSY
90450-53007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06205-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-12314-00
Superseded by 90480-12X00-00
|
$1.25 | ||
|
Unavailable |
|||
|
#17
COLLAR
BRN-14449-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
PIPE, DRAIN
1WS-1443E-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-13083-00
Superseded by 90467-13133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER 1
B7N-14425-00-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER 2
B7N-14426-01-00
|
$1.25 | ||
|
Unavailable |
|||
|
#22
PIPE, BREATHER 2
B7N-15393-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-17003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06232-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-15001-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
COVER 1
BME-14417-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#27
DAMPER, PLATE
90520-03022-00
|
$0.95 | ||
|
Unavailable |
|||
|
#28
DAMPER, PLATE
90520-03021-00
|
$0.90 | ||
|
Unavailable |
|||
|
#29
BOLT
91312-05020-00
Superseded by 91317-05020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE
BME-14477-20-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
SCREW, ROUND TAPPING
90160-05013-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
PLATE, ROUTING
1RC-21684-01-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
PLATE, ROUTING 2
B7N-21686-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
