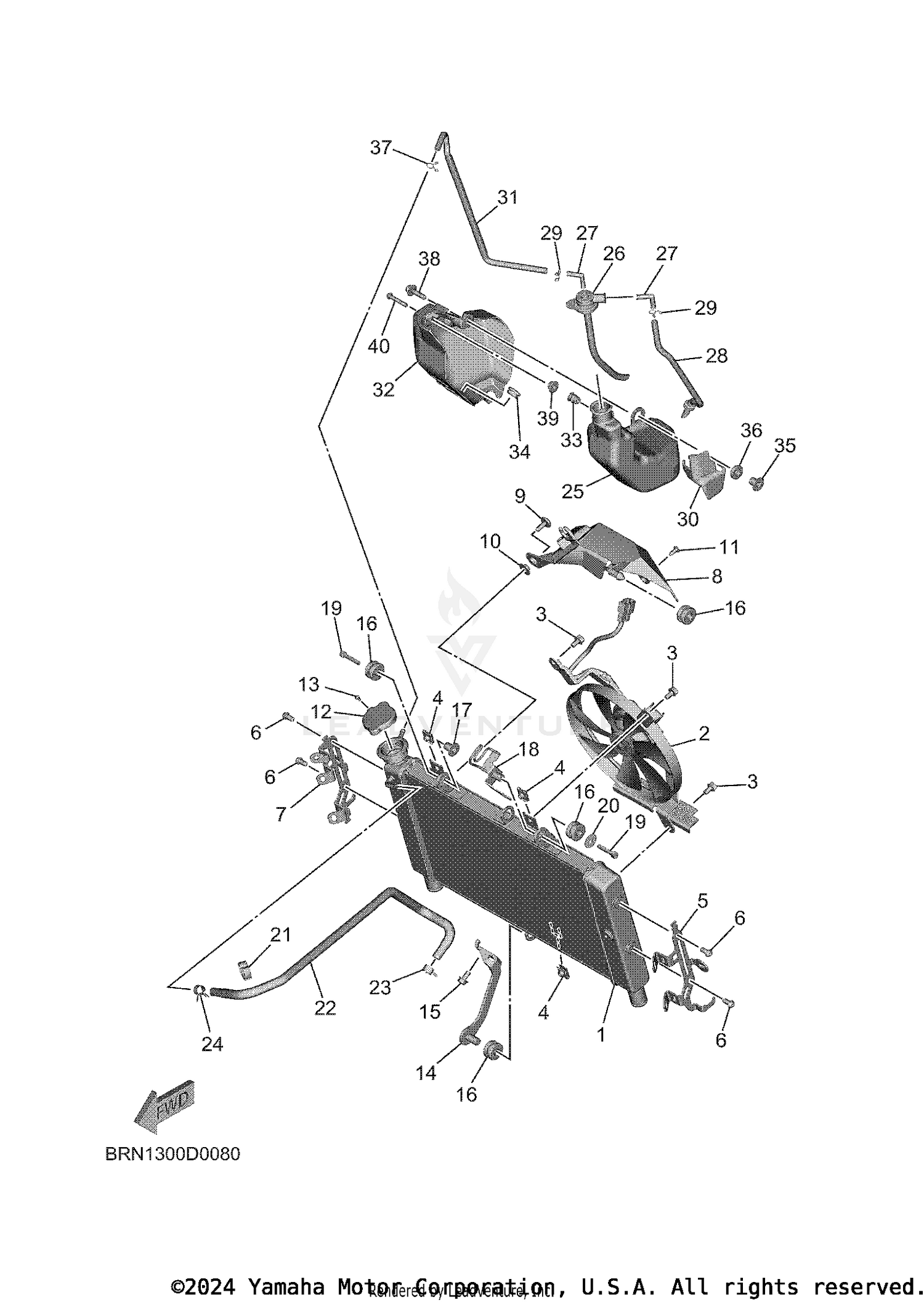

Radiator & Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR COMP
BME-12461-00-00
|
$326.99 | ||
|
Unavailable |
|||
|
#2
BLOWER ASSY
BME-12405-01-00
|
$372.99 | ||
|
Unavailable |
|||
|
#3
BOLT, BLOWER HOLDING
5GJ-12675-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT 1
5YP-E2671-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET 1
BRN-1244E-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#6
BOLT,HEX. SOCKET BUT
90111-06102-00
Superseded by 90111-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET 2
BRN-1244F-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#8
COVER RADIATOR
B7N-12467-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET BUTTON
90111-06161-00
Superseded by 90111-06151-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COLLAR
90387-07717-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIVET
90269-05005-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CAP, RADIATOR
B5Y-12462-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91317-03006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY 2
B7N-12638-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE DEEP RECESS
95D32-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-15363-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COLLAR
90387-06158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, CABLE 2
BRN-26132-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#19
BOLT
91342-06030-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-06033-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLAMP
90464-16003-00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE 1
B7N-1243A-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-10039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-10039-00
|
$10.49 | ||
|
Unavailable |
|||
|
#25
TANK, RECOVERY
1RC-21871-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP
B7N-21875-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
ELBOW
1RC-21828-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE, BREATHER
B7N-21826-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PROTECTOR 1
B7N-22825-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE 1
B7N-21816-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER
1RC-2172W-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
GROMMET
90480-13203-00
Superseded by 90480-14153-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
COLLAR
90387-06285-00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
1RC-21749-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
BOLT, HEXAGON SOCKET HEAD
90110-06434-00
Superseded by 90110-06233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
1RC-21748-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, BUTTON HEAD
92012-05030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
