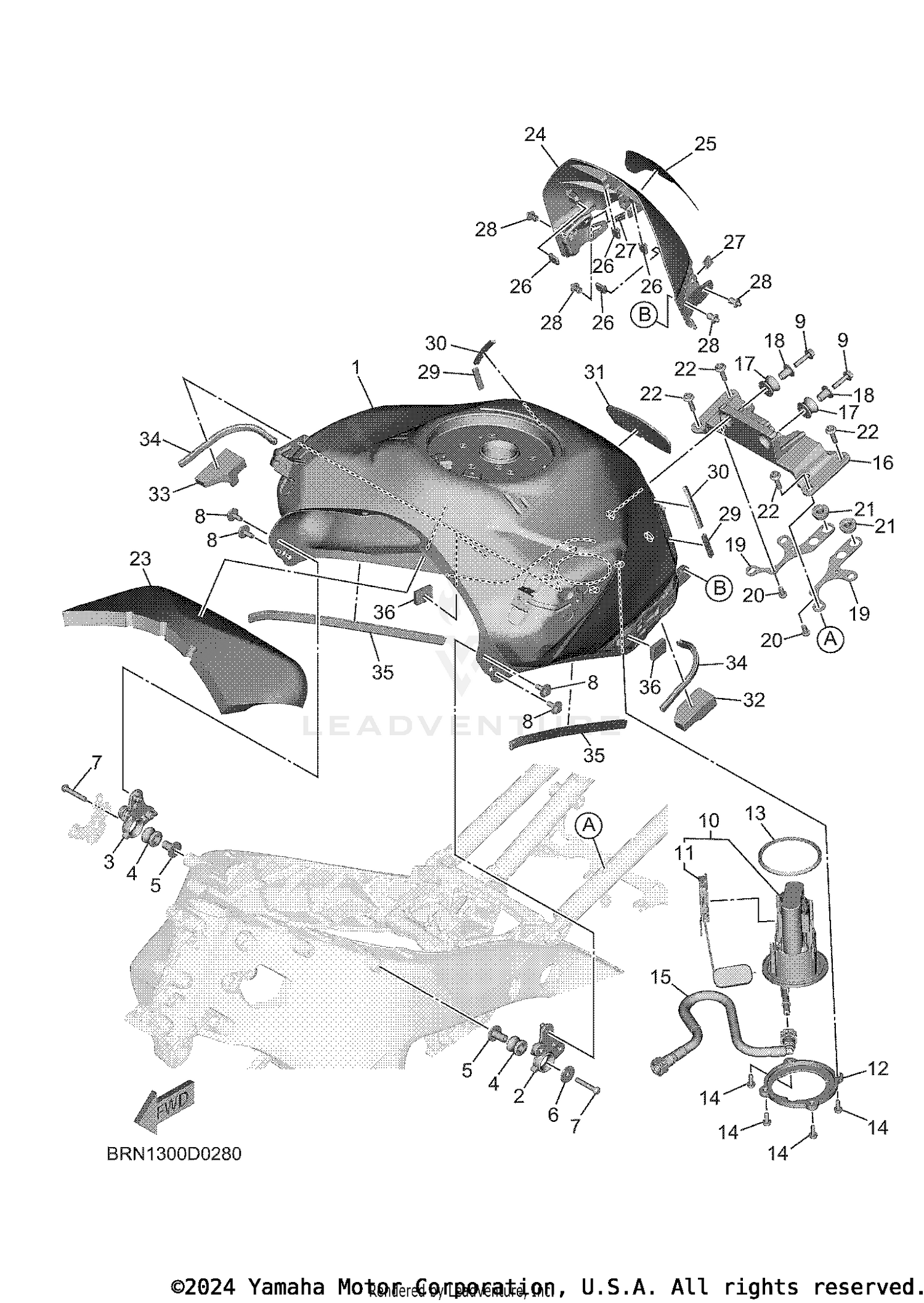

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BRN-YK241-00-P1
|
$591.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FUEL TANK
B7N-24191-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL TANK
B7N-24192-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-18008-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06266-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06072-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, BUTTON HEAD
92012-06035-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-06051-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUEL PUMP COMP.
BRN-13907-00-00
|
$309.99 | ||
|
Unavailable |
|||
|
#11
SENDER
BRN-85752-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#12
BRACKET, FUEL PUMP
1RC-24491-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
1RC-24486-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, FUEL 1
B7N-13971-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, TANK FITT
BLG-2413Y-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#17
GROMMET
3D7-24339-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-06136-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY
BRN-24662-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, PLATE 1
BRN-2414H-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#24
PROTECTOR, FUEL TANK
BRN-24141-00-P1
|
$80.99 | ||
|
Unavailable |
|||
|
#25
SEAT, TANK PROTECTOR
BRN-24193-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#26
DAMPER, SIDE COVER
5PW-2411J-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
RIVET
90269-06019-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, PLATE
90520-04021-00
|
$1.00 | ||
|
Unavailable |
|||
|
#30
DAMPER, PLATE
90520-05030-00
|
$1.00 | ||
|
Unavailable |
|||
|
#31
DAMPER, LOCATING 1
BRN-24181-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#32
DAMPER, LOCATING 4
BRN-24184-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#33
DAMPER, LOCATING 5
BRN-24185-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
MOLE, FUEL TANK 1
BRN-2418B-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#35
MOLD, FUEL TANK
BRN-24188-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#36
DAMPER, PLATE
90520-06010-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
