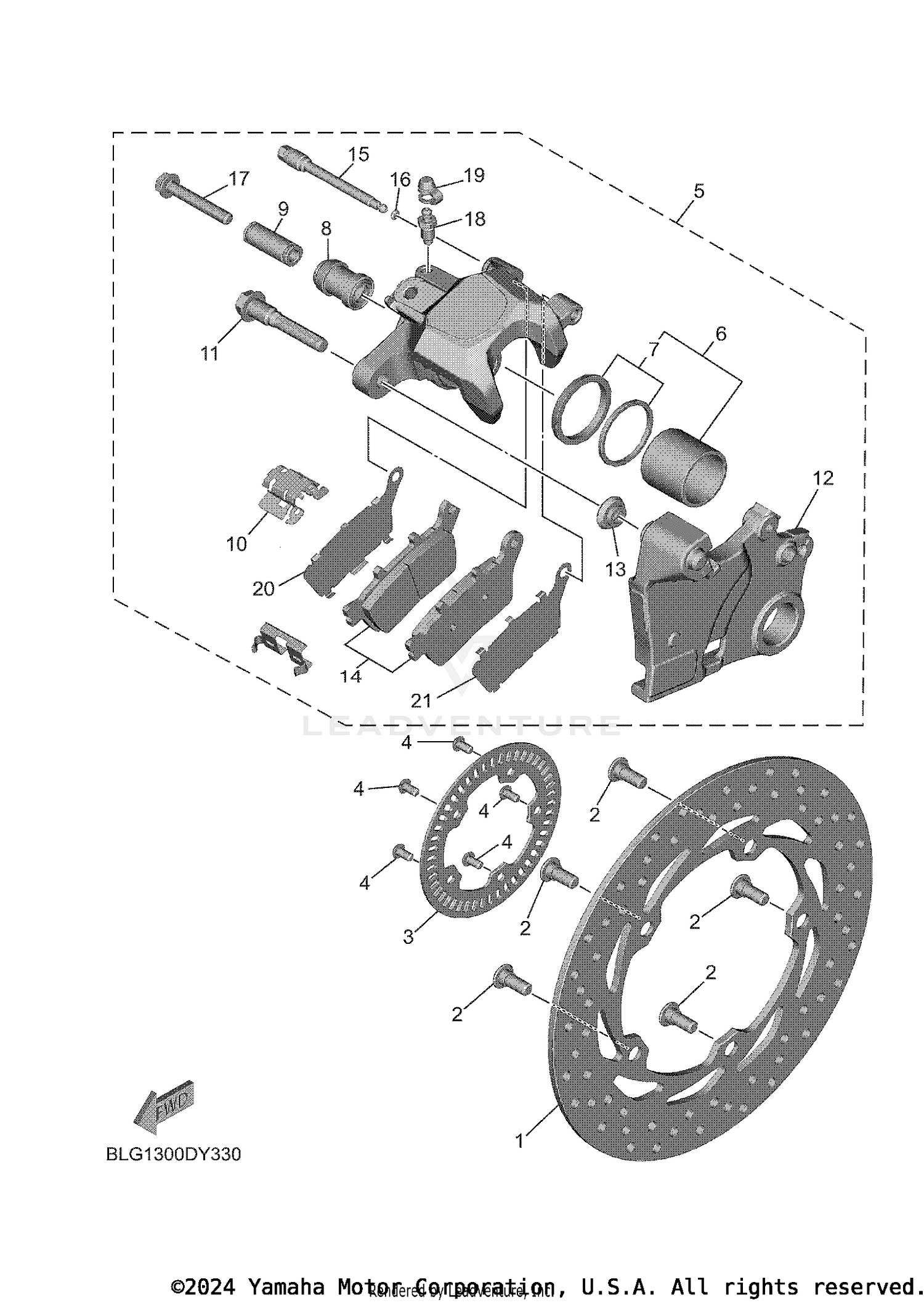

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISK, REAR BRAKE 2
BRN-2582W-00-00
|
$132.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-08045-00
Superseded by 90109-08046-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR, SENSOR
2PW-2517G-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-05029-00
Superseded by 90149-05030-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CALIPER ASSY, REAR
BLG-2580W-00-00
|
$422.99 | ||
|
Unavailable |
|||
|
#6
PISTON ASSY, CALIPER
BD5-25802-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
5SL-25803-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, CALIPER
5SL-25917-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SLEEVE, CALIPER
5SL-25838-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUPPORT, PAD
BD5-25919-50-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SLIDE
2DF-25914-50-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, SUPPORT
BLG-25921-50-00
|
$149.99 | ||
|
Unavailable |
|||
|
#13
BOOT, CALIPER
3JD-25917-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE PAD KIT 2
BD5-25806-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, PAD
2DF-25924-50-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER
3P6-25925-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
5SL-25926-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, BLEED
8CR-25824-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BLEED SCREW KIT
1UY-25825-51-00
Superseded by 36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, CALIPER
BD5-25827-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM, CALIPER
BD5-25827-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
