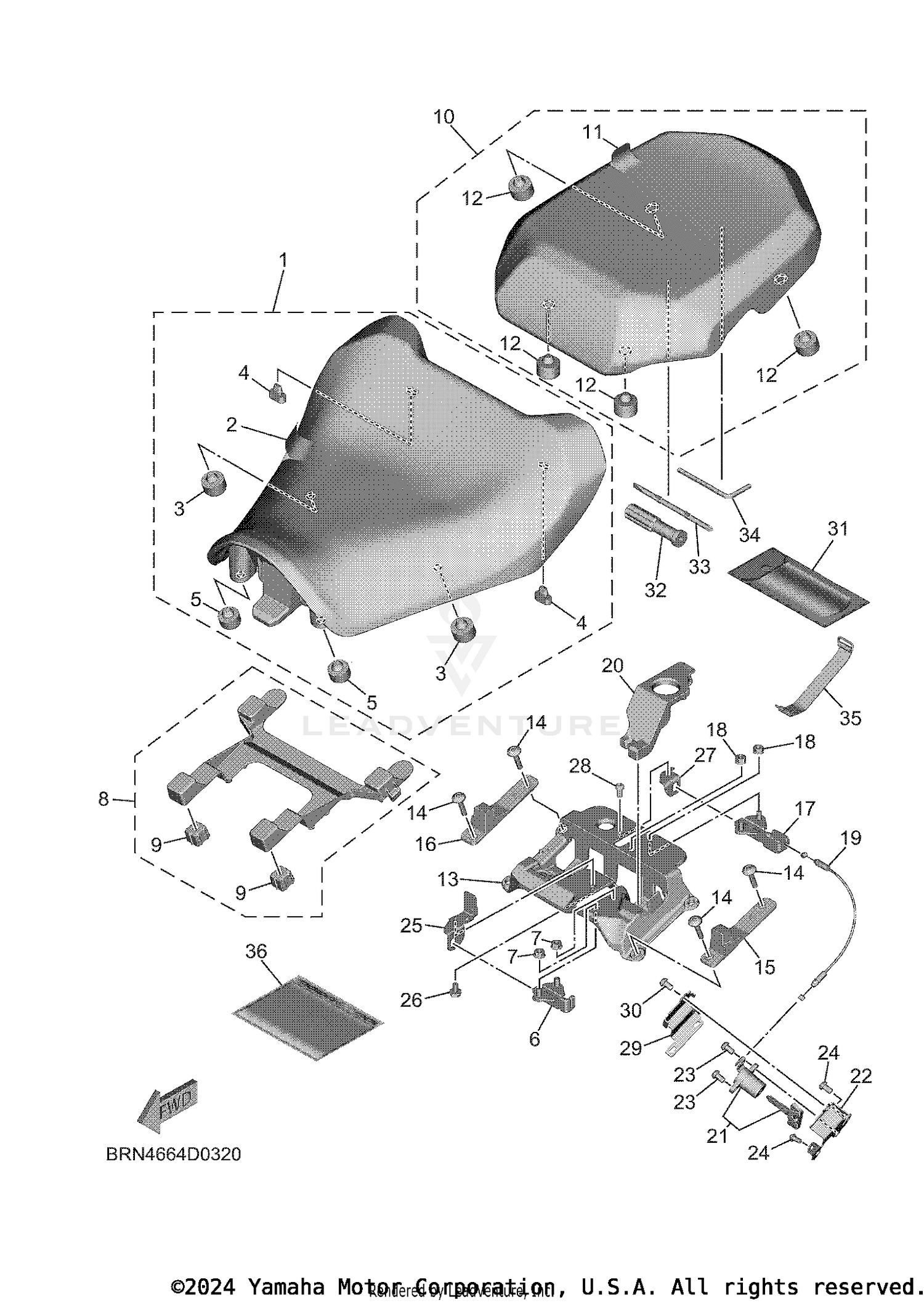

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
BRN-24710-00-00
|
$187.99 | ||
|
Unavailable |
|||
|
#2
SEAT COVER COMP.
BRN-2470F-00-00
|
$89.99 | ||
|
Unavailable |
|||
|
#3
STOPPER, MAIN STAND
371-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD, SEAT
B5C-24741-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
STOPPER, MAIN STAND
278-27114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT LOCK ASSY
3P6-24780-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SEAT BRACKET ASSY
B5U-24708-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, SEAT
2PP-24723-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANDEM SEAT ASSY
BRN-24750-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#11
SEAT COVER COMP. ,2
BRN-2470H-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#12
STOPPER, MAIN STAND
4GL-27114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SEAT LOCK
2PP-2478X-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,HEX. SOCKET BUT
90111-06053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, SEAT BACK
B5C-24797-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, SEAT BACK 2
B5C-2479L-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT LOCK ASSY
B5U-24780-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
Unavailable |
|||
|
#19
WIRE, SEAT LOCK 2
BRN-2479D-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#20
PLATE, COVER
B5U-2471P-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, LOCK
BRN-2479K-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#23
BOLT, BUTTON HEAD
92012-06010-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, BUTTON HEAD
92012-05010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, SEAT LEVER 1
2PP-2475H-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,FLANGE
90105-06057-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BRACKET, SEAT LEVER 2
2PP-2475J-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, BUTTON HEAD
90111-06065-00
Superseded by 92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE
BRN-24792-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#30
BOLT, BUTTON HEAD
92012-06010-00
|
$4.65 | ||
|
Unavailable |
|||
|
#31
TOOL KIT
B5U-28100-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#32
GRIP, DRIVER
2H7-28151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
DRIVER
2GV-28152-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WRENCH, HEXAGON 8
14B-28164-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
BAND, BATTERY
2T4-82131-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
POUCH
B9F-28186-00-00
|
$15.99 | ||
|
Unavailable |
|||
