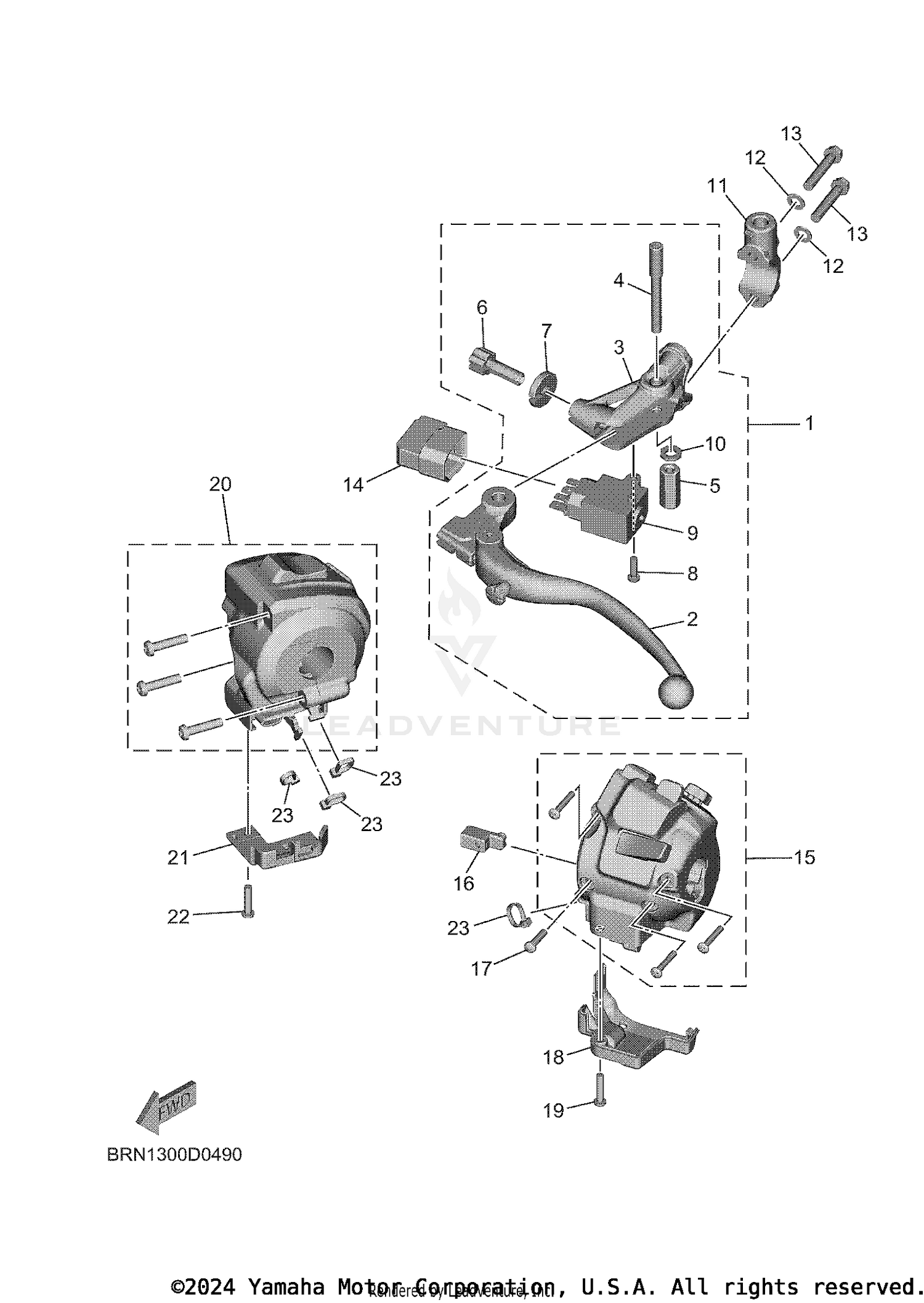

Handle Switch & Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER HOLDER ASSY (LEFT)
BRN-82910-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#2
LEVER 2
BME-83922-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, LEVER 1
BME-82911-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#4
. .BOLT, LEVER
BRN-2589F-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#5
NUT
90170-06017-00
Superseded by 90170-06249-00
|
$10.65 | ||
|
Unavailable |
|||
|
#6
BOLT, AJUSTING
BME-26382-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#7
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
BME-2632G-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#9
SWITCH
BME-82917-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-06105-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, MASTER CY
34B-25867-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-06037-00
Superseded by 90201-06431-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COVER, SWITCH
BME-8291G-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#15
SW., HANDLE LH
BRN-8291L-00-00
|
$408.99 | ||
|
Unavailable |
|||
|
#16
CLIP
BME-83525-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98507-04016-00
Superseded by 98517-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER 1
BME-8246B-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98507-04018-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SW., HANDLE RH
BME-8291R-00-00
|
$384.99 | ||
|
Unavailable |
|||
|
#21
COVER 2
BME-8249A-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98507-04018-00
|
$2.35 | ||
|
Unavailable |
|||
|
#23
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
