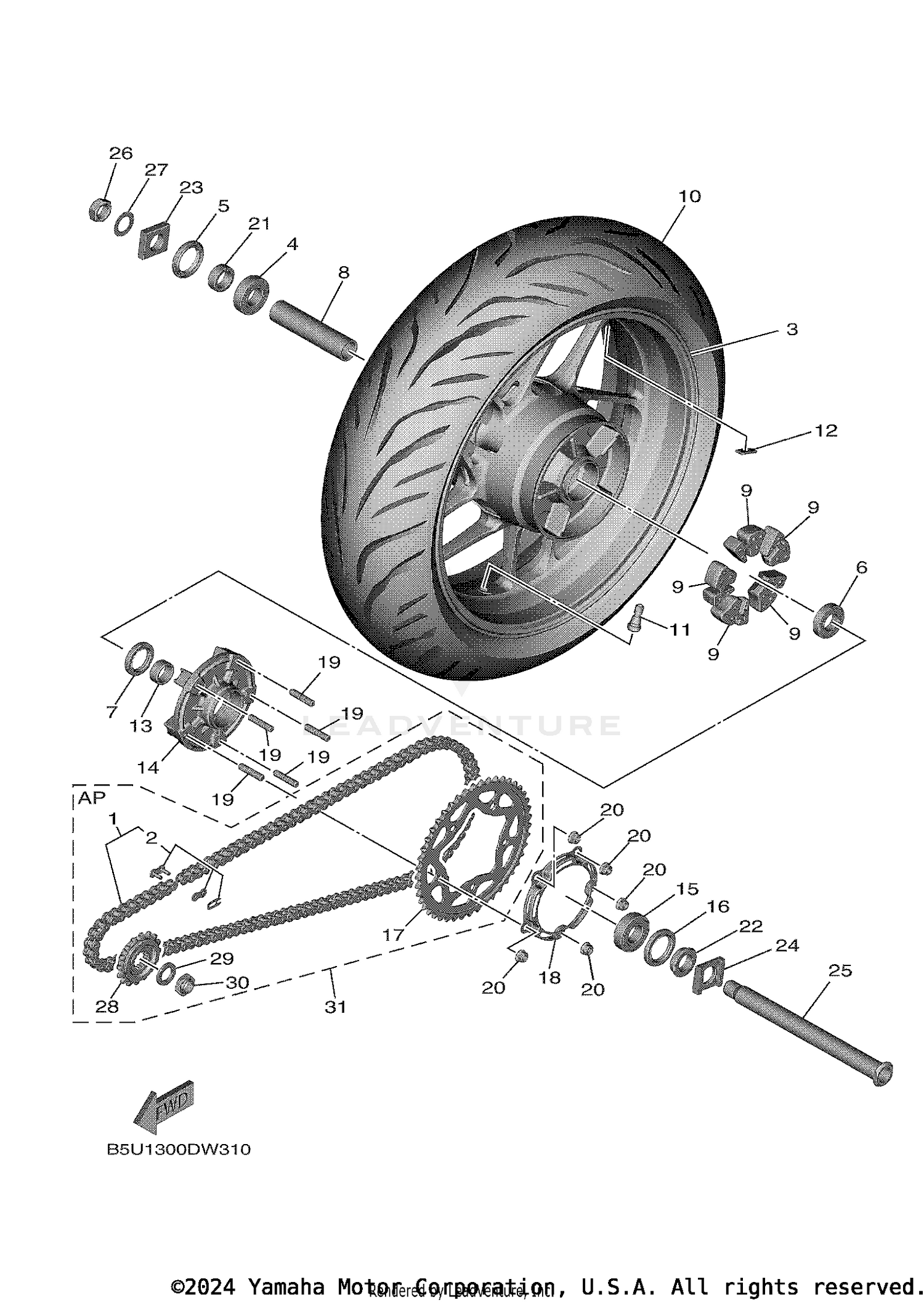

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SET, CHAIN
94A40-18118-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, CHAIN
94682-5502R-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAST WHEEL, REAR
BRN-25338-00-98
|
$566.99 | ||
|
Unavailable |
|||
|
#4
BEARING
93306-20531-00
|
$55.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
OIL SEAL
93106-40013-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING
93306-07806-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93106-35042-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-28031-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
BD5-25364-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE
94118-17096-00
|
$292.99 | ||
|
Unavailable |
|||
|
#11
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BALANCER, WHEEL
23P-25398-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, WHEEL
5EB-25377-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH, HUB
2CR-25366-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-20531-00
|
$55.99 | ||
|
Unavailable |
|||
|
#16
OIL SEAL
93106-40013-00
|
$16.49 | ||
|
Unavailable |
|||
|
#17
SPROCKET, DRIVEN (45T)
B7N-25445-00-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET 1
B7N-2537W-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, STUD
90116-10048-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR, WHEEL
13S-25376-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-28029-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PULLER, CHAIN 1
4XV-25388-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PULLER, CHAIN 2
4XV-25389-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
AXLE, WHEEL
4XV-25381-10-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT SELF-LOCKING
90185-24002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER PLATE
90201-25027-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET, DRIVE (16T)
2CR-17460-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, CONICAL SPRING
90208-22002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-22019-00
Superseded by 90179-22018-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN & SPROCKET KIT
B5U-W001A-00-00
|
$494.99 | ||
|
Unavailable |
|||
