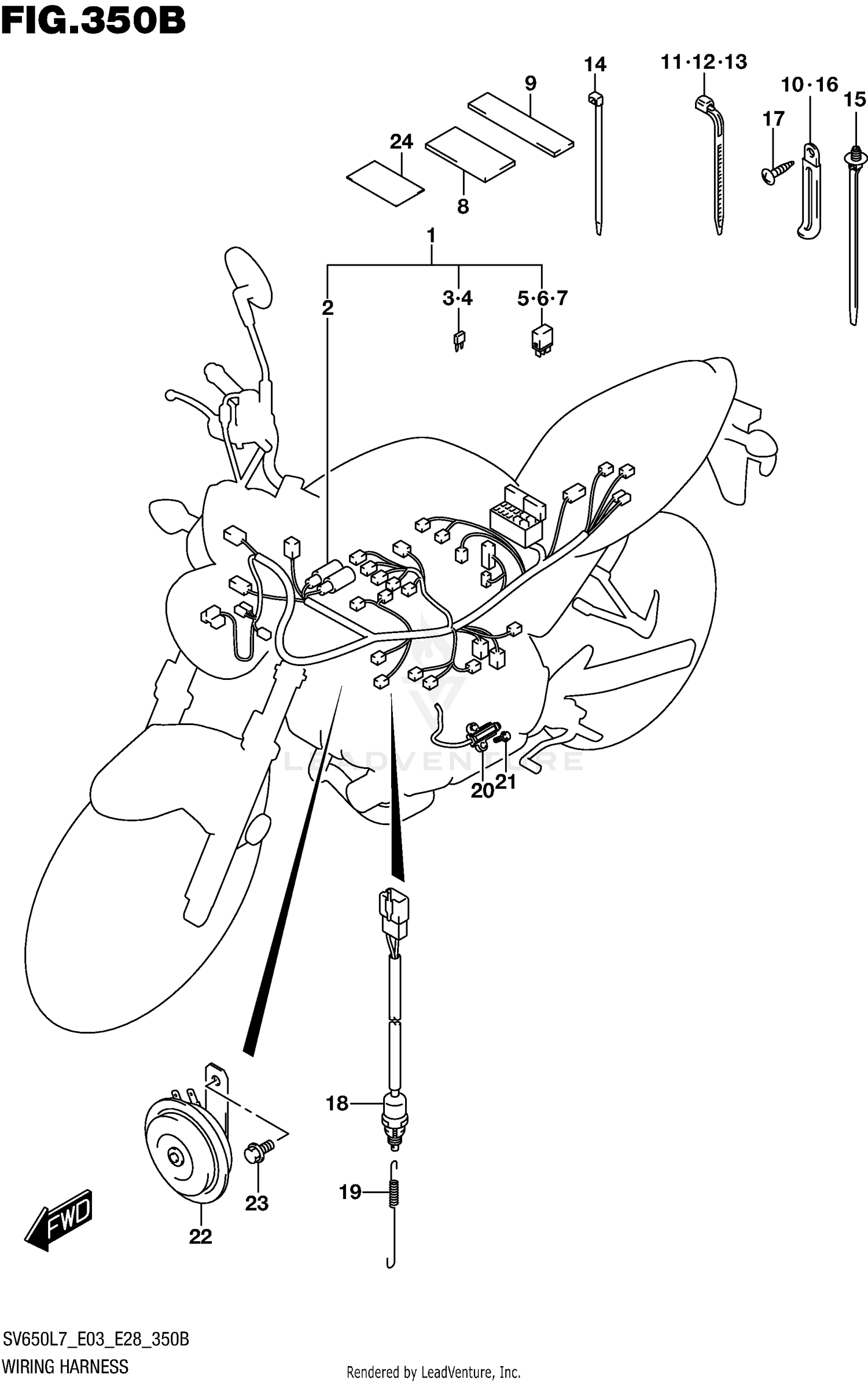

Wiring Harness (sv650l7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-18K10
|
$825.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER, SPEEDOMETER COUPLER
36618-35F00
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (15A)
09481-15501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
.RELAY ASSY
38860-76F01
|
$41.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
.RELAY ASSY
38860-76F01
|
$41.86 | ||
|
Unavailable |
|||
|
#7
.RELAY ASSY
38860-76F01
|
$41.86 | ||
|
Unavailable |
|||
|
#8
PROTECTOR (30X60X3)
36920-08D00
|
$2.03 | ||
|
Unavailable |
|||
|
#9
PROTECTOR (30X70)
94474-22D00
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (L:45)
09407-06429
|
|||
|
Unavailable |
|||
|
#11
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP (L:154)
09407-17403
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
03541-0412A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH ASSY,STOP LAMP
37740-44H01
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
09443-06016
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SWITCH ASSY,SIDE STAND
37840-25D00
Superseded by 37840-25D02
|
$65.20 | ||
|
Unavailable |
|||
|
#21
BOLT
01550-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
HORN ASSY
38500-18K00
|
$64.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (8X12)
01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
TAPE, FENDER
36611-16G00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
