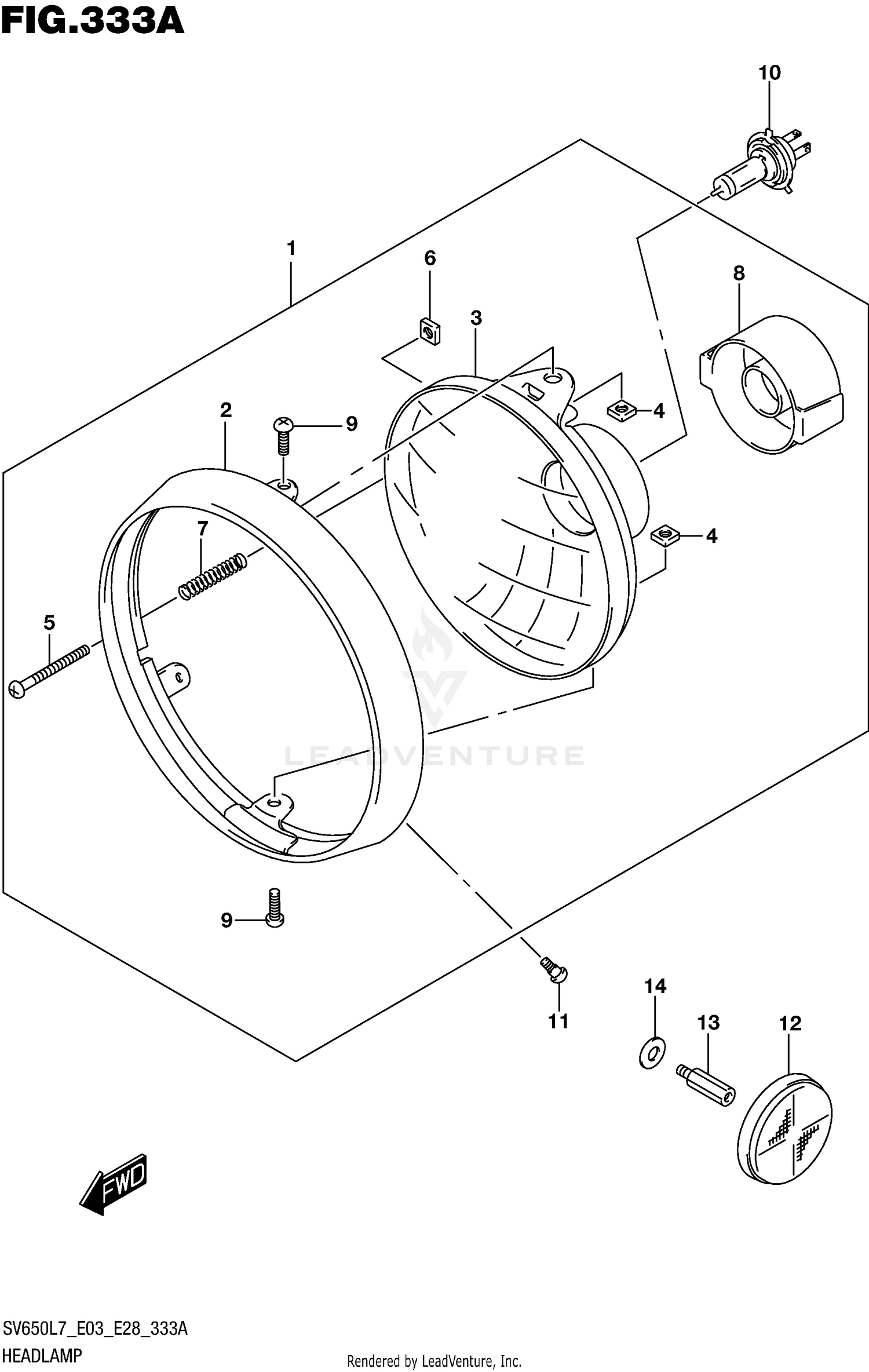

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-19F00-999
Superseded by 35100-19F01-999
|
$249.61 | ||
|
Unavailable |
|||
|
#2
.RIM
35111-19F00
|
$115.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
.LAMP UNIT
35121-19F00
|
$170.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
.NUT
35135-45900
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SCREW, ADJUSTING
35151-19F00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
.NUT
35152-45600
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SPRING
35154-13F00
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
.COVER,SOCKET
35174-19F00
|
$34.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW (5X16)
35181-19F00
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V60/55W,H4)
09471-12185
Superseded by 09471-12060
|
$31.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW (5X15.3)
09139-05038
|
$2.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (5X10)
09119-05023
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-0105B
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
