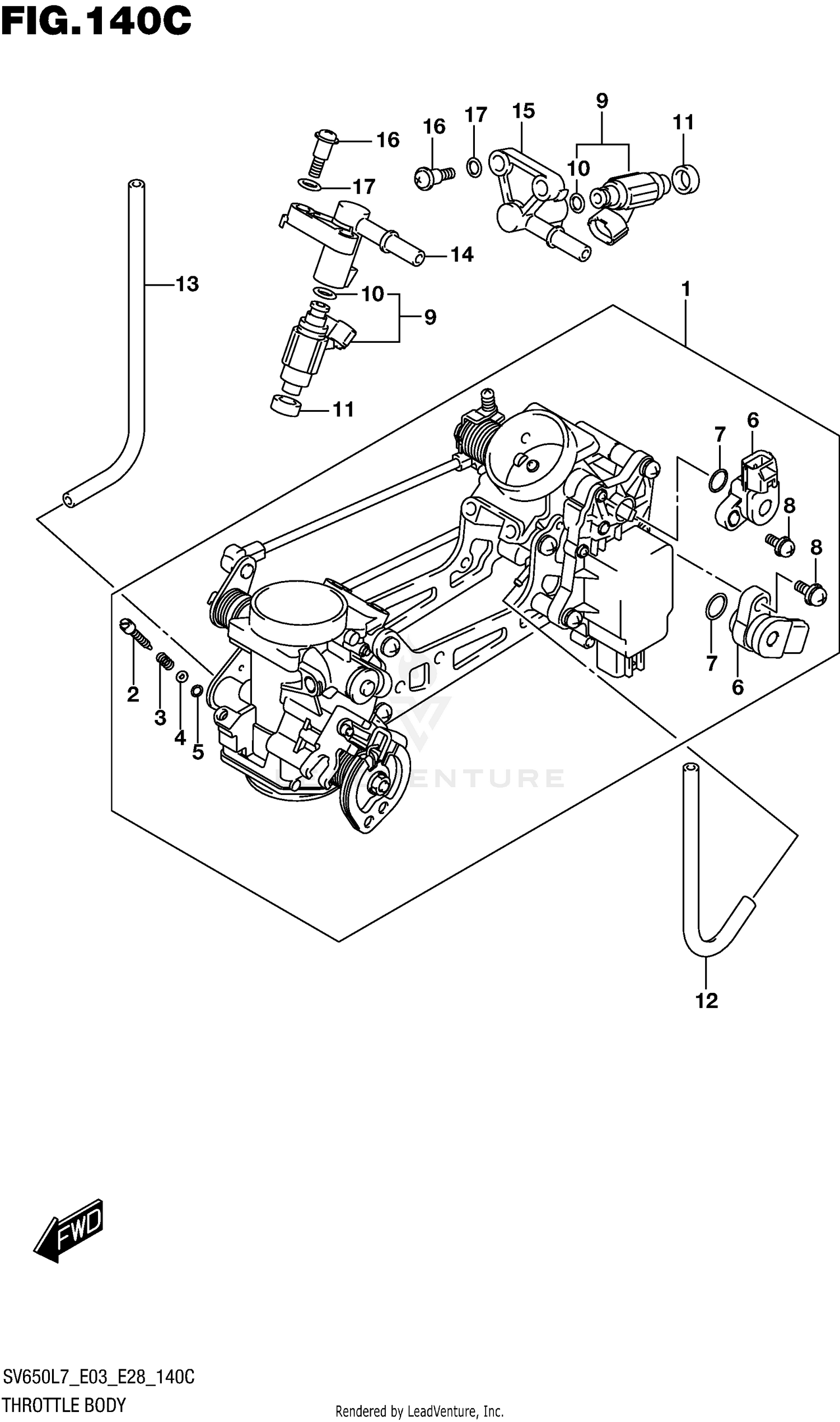

Throttle Body (sv650al7 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROTTLE
13405-18K00
Superseded by 13405-18K01
|
$1,223.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SCREW
13269-33E00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SPRING,THROTTLE SCREW
13268-48700
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
.WASHER
13606-47A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SENSOR ASSY
13580-27G21
|
$157.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
.O-RING
13575-29G00
Superseded by 13575-29G01
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW
13605-02F00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
INJECTOR ASSY
15710-11J00
|
$290.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
..O-RING
15717-58B00
|
$12.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SEAL
15722-29G00
|
$13.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE
13683-10F70
Superseded by 13683-10F71
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
13683-01H00
Superseded by 13683-01H01
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
DELIVERY PIPE
15731-11J00
|
$168.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
DELIVERY PIPE
15732-11J00
|
$168.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SCREW
13601-11J00
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
.PACKING
13602-29G00
Superseded by 13602-29G01
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
