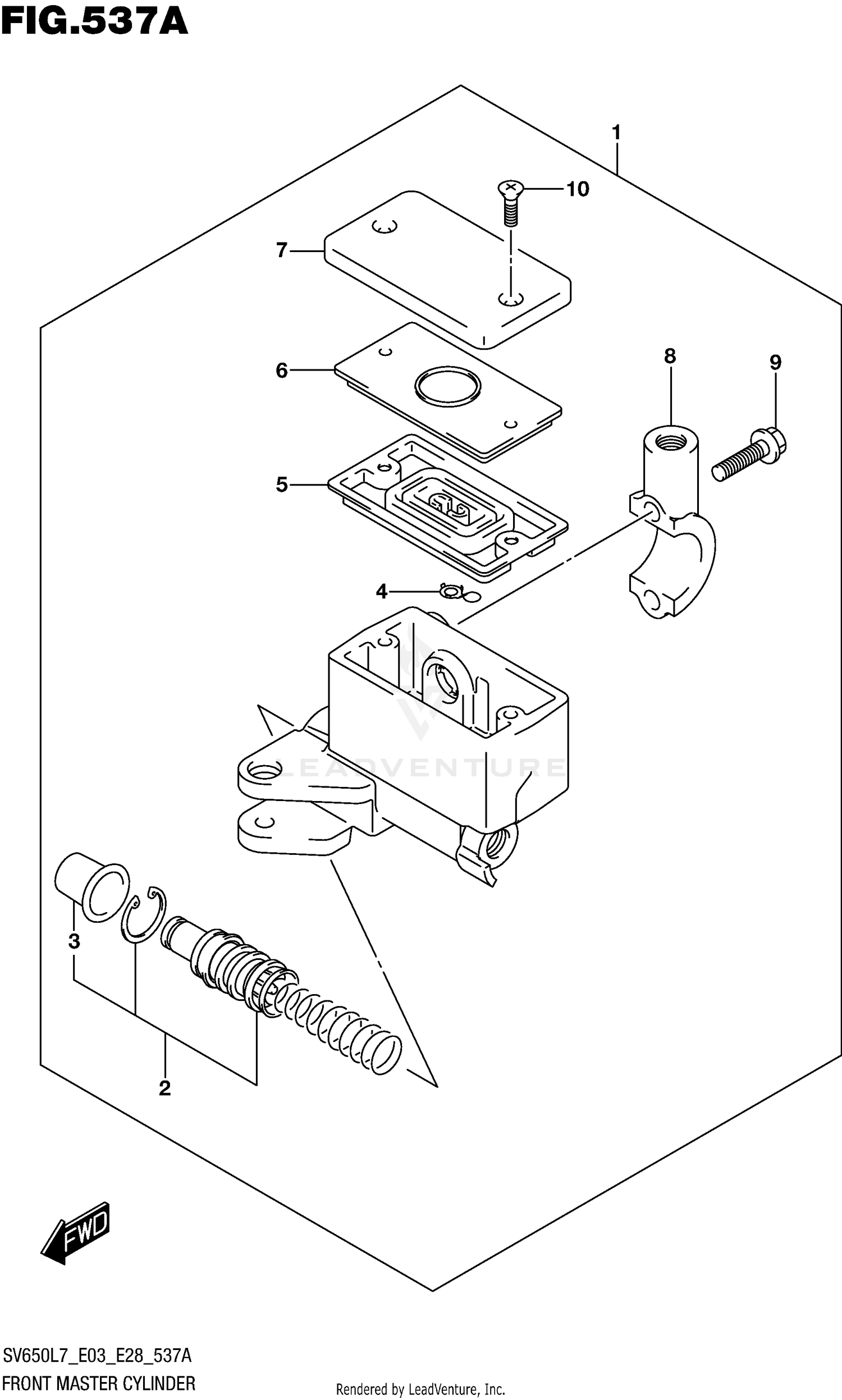

Front Master Cylinder (sv650l7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-10G60
|
$323.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON & CUP SET
59600-45850
|
$50.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
59666-44300
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
.PROTECTOR
59664-32F00
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
.DIAPHRAGM
59667-49460
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
.PLATE, DIAPHRAGM
59668-41C00
|
$11.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CAP
59669-10G20
|
$61.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
.HOLDER
59671-32F00
|
$24.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT (6X22)
59675-02FA0
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SCREW, RESERVOIR CAP
69689-49300
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
