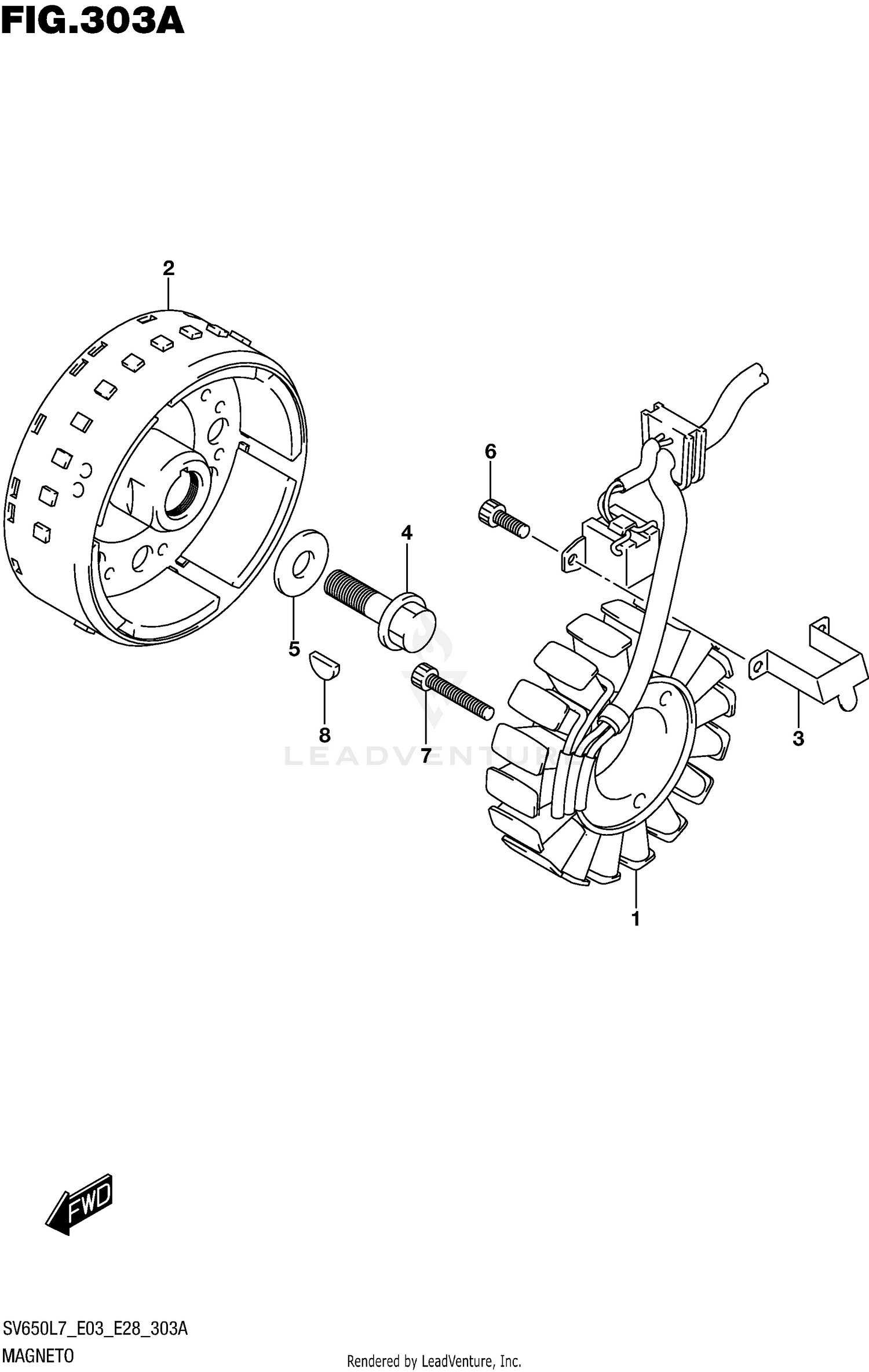

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
32101-17G22
Superseded by 32101-17G23
|
$422.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY
32102-17G01
|
$381.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP,MAGNETO LEAD
32371-19F10
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (12X40)
09103-12004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (12X30X3.0)
09160-12036
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
07130-0512A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07130-0630A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
KEY
09420-04008
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
