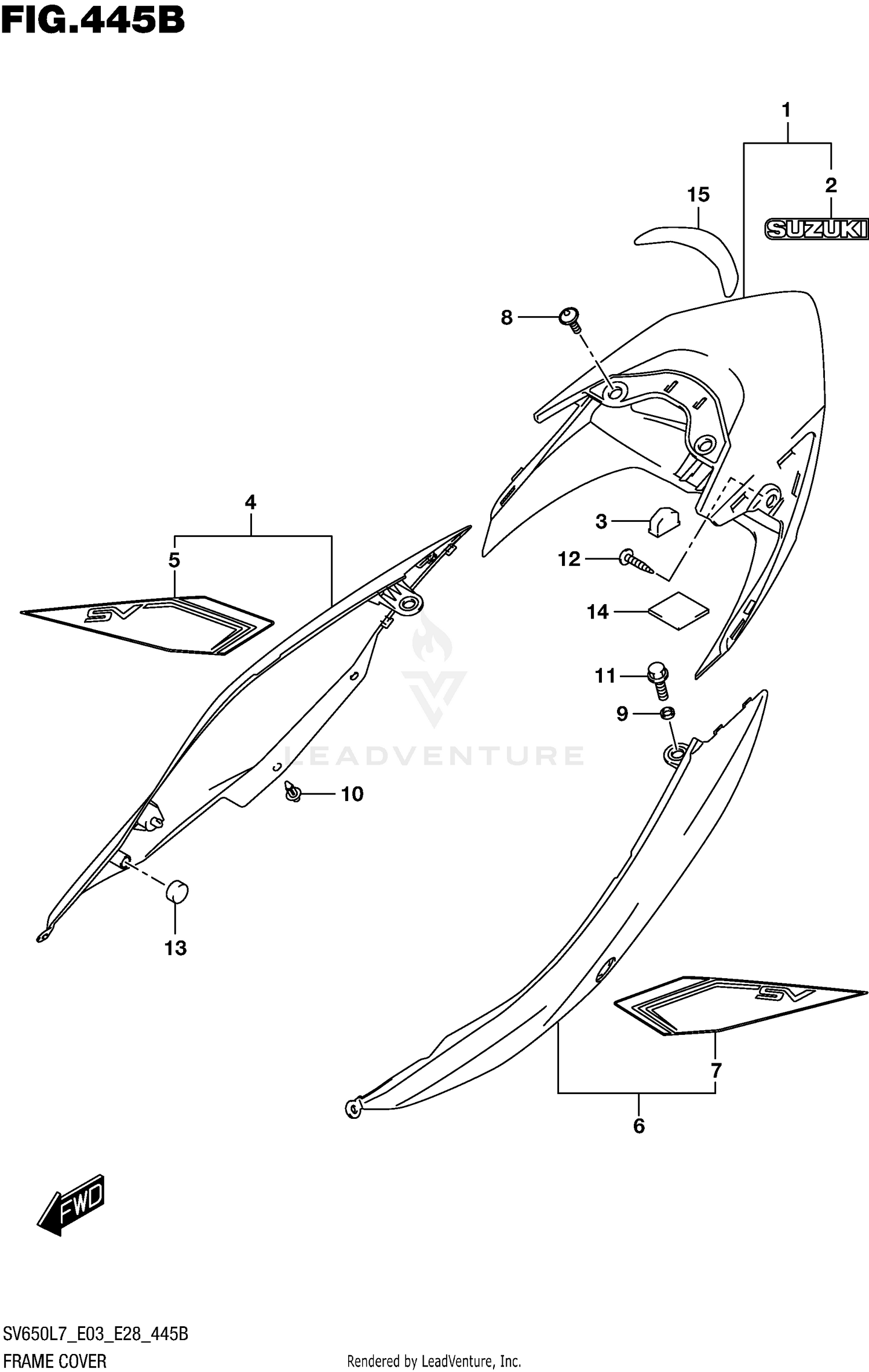

Frame Cover (ysf,yvz,yww) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME RR
47310-18K00-YKV
Superseded by 47310-18K01-YKV
|
$201.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM,"SUZUKI"
68171-28H10-CTY
Superseded by 68171-28H11-CTY
|
$8.80 | ||
|
Unavailable |
|||
|
#2
EMBLEM,"SUZUKI"
68171-28H10-CTY
Superseded by 68171-28H11-CTY
|
$8.80 | ||
|
Unavailable |
|||
|
#3
CUSHION,FRAME COVER CTR
47315-18K00
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
COVER, FRAME REAR RH (BLACK)
47410-18K10-YKV
|
$135.85 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
COVER, FRAME REAR RH (BLACK)
47410-18K10-4TX
|
$135.85 | ||
|
Available to order. Add to View Price |
|||
|
#4-3
COVER, FRAME REAR RH (BLACK)
47410-18K10-4UX
|
$129.39 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
.TAPE SET, FRAME COVER RH
68135-18K00-BBU
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
.TAPE SET, FRAME COVER RH
68135-18K00-BCB
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#5-3
.TAPE SET, FRAME COVER RH
68135-18K00-BCC
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
COVER, FRAME REAR LH (BLACK)
47510-18K10-YKV
|
$135.85 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
COVER, FRAME REAR LH (BLACK)
47510-18K10-4TX
|
$110.85 | ||
|
Available to order. Add to View Price |
|||
|
#6-3
COVER, FRAME REAR LH (BLACK)
47510-18K10-4UX
|
$129.39 | ||
|
Available to order. Add to View Price |
|||
|
#7-1
.TAPE SET, FRAME COVER LH
68145-18K00-BBU
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#7-2
.TAPE SET, FRAME COVER LH
68145-18K00-BCB
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#7-3
.TAPE SET, FRAME COVER LH
68145-18K00-BCC
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (5X13)
09139-05074
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (8.5X12X2.5)
09180-08052
|
$1.25 | ||
|
Unavailable |
|||
|
#10
CLIP (BLACK)
09409-06314-5PK
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT (8X12)
01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW
03541-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION (14X20X9)
09329-14002
Superseded by 09329-14003
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
33652-20C00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
TAPE,FRAME COVER RR CTR
47312-18K00
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
