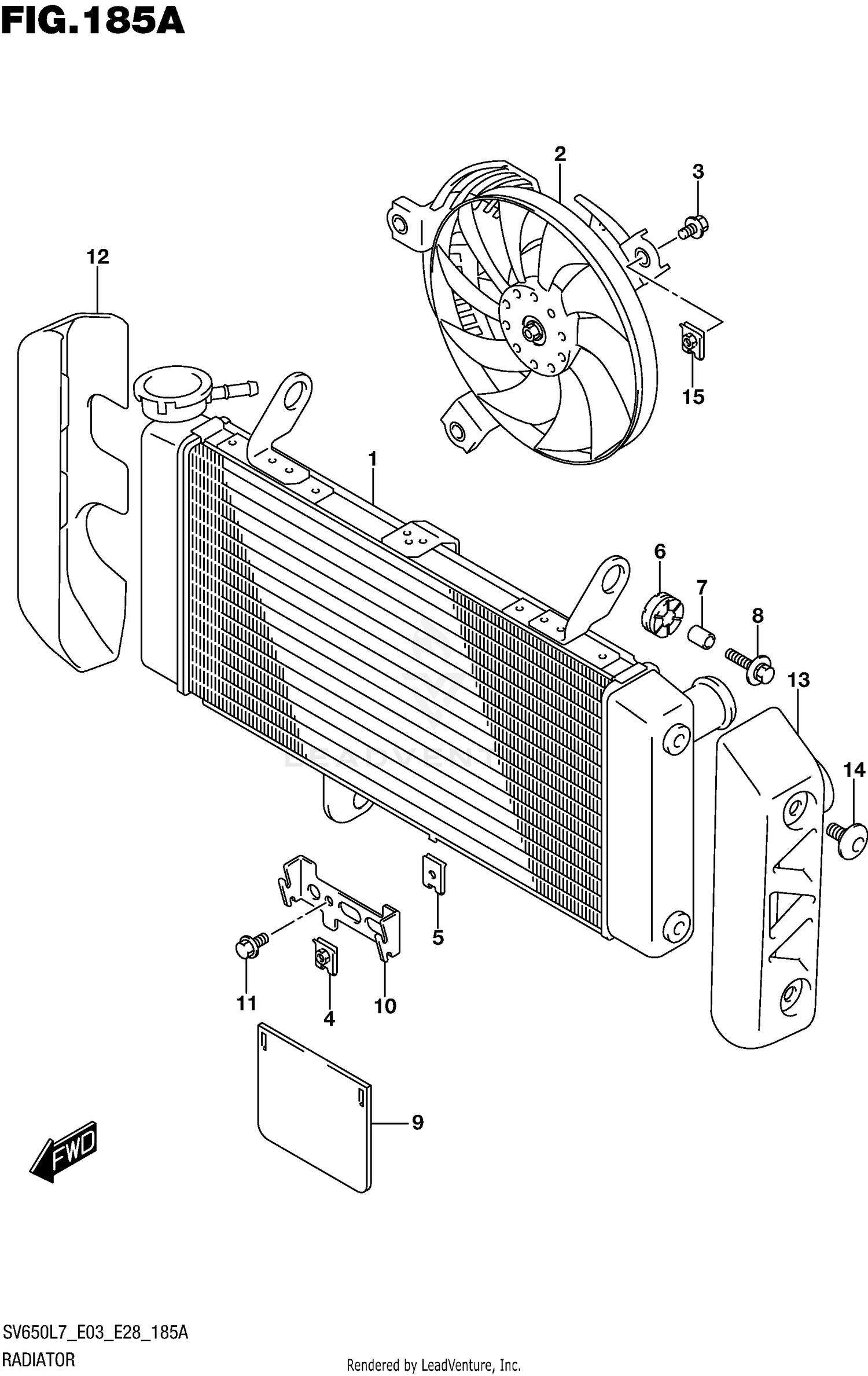

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY,WATER
17710-18K00
|
$799.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
FAN ASSY,RADIATOR
17800-18K00
|
$597.54 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
.NUT,RADIATOR FAN
17802-14F00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FAN ASSY
17802-45G00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X25)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER,RADIATOR UNDER
17781-17G00
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,RDTR UNDER RUBBER
17741-17G00
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0610A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER,RADIATOR RH
17761-18K00
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,RADIATOR LH
17762-18K00
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X12)
09139-06183
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
17802-12K00
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
