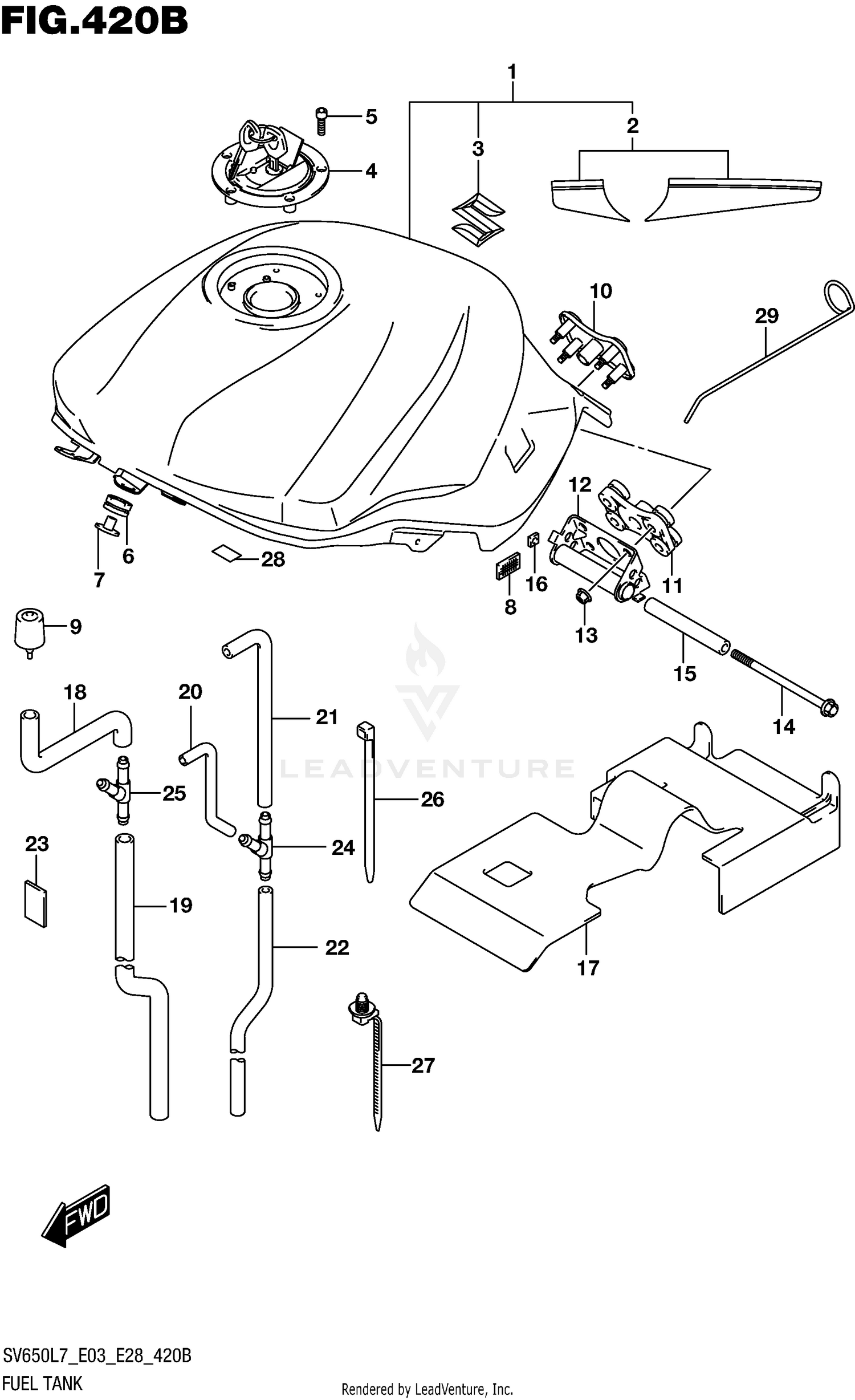

Fuel Tank (ysf,yvz,yww) (sv650l7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY, FUEL (BLUE)
44100-18K30-YSF
|
|||
|
Unavailable |
|||
|
#1-2
TANK ASSY,FUEL
44100-18K30-YVZ
Superseded by 44100-18K31-YVZ
|
$1,280.72 | ||
|
Available to order. Add to View Price |
|||
|
#1-3
TANK ASSY, FUEL (WHITE)
44100-18K30-YWW
|
$1,157.57 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.TAPE SET, FUEL TANK
68110-18K00-AGQ
|
$44.60 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
(BLUE/WHITE)
68110-18K00-AGQ
|
$44.60 | ||
|
Unavailable |
|||
|
#2-2
.TAPE SET, FUEL TANK
68110-18K00-AGS
|
$53.66 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
(RED/WHITE)
68110-18K00-AGS
|
$53.66 | ||
|
Unavailable |
|||
|
#2-3
TAPE SET,FUEL T
68110-18K00-AJP
Superseded by 68110-18K01-AJP
|
$39.44 | ||
|
Unavailable |
|||
|
#2-3
TAPE SET,FUEL T
68110-18K00-AJP
Superseded by 68110-18K01-AJP
|
$39.44 | ||
|
Unavailable |
|||
|
#3
EMBLEM,S
68111-47HA0
|
$49.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$146.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FUEL TANK FILLER CAP
44244-11J00
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION,FUEL TANK FRONT
44511-18K00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER,FUEL TANK FRONT
44512-04K00
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$13.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK RR
44542-29G00
Superseded by 44542-29G01
|
$9.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,FUEL TANK REAR UP
44570-16G00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, FUEL TANK REAR
44542-16G00
|
$14.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,FUEL TANK REAR
44530-44H00
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08319-3106A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X100)
09103-06060
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER, FUEL TANK REAR
44561-35F00
|
$17.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08318-1106A
|
|||
|
Unavailable |
|||
|
#17
SHEET,HEAT SHIELD RUBBER
44191-18K00
|
$61.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, FUEL TANK DRAIN NO.1
44423-18K00
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, FUEL TANK DRAIN NO.2
44423-18K10
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE,FUEL TANK BRTHR NO.3
44424-15H10
Superseded by 44424-15H11
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, FUEL TANK BREATHER NO.1
44424-18K00
|
|||
|
Unavailable |
|||
|
#22
HOSE, FUEL TANK BREATHER NO.2
44424-18K10
|
$22.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIELD,DRAIN HOSE HEAT
44427-18K00
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
3 WAY
09367-06007
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT,DRAIN HOSE
09367-08010
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLAMP (L:154)
09407-17403
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#28
TAPE, FENDER
36611-16G00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
STAY,FUEL TANK
44560-23H00
|
$48.56 | ||
|
Available to order. Add to View Price |
|||
