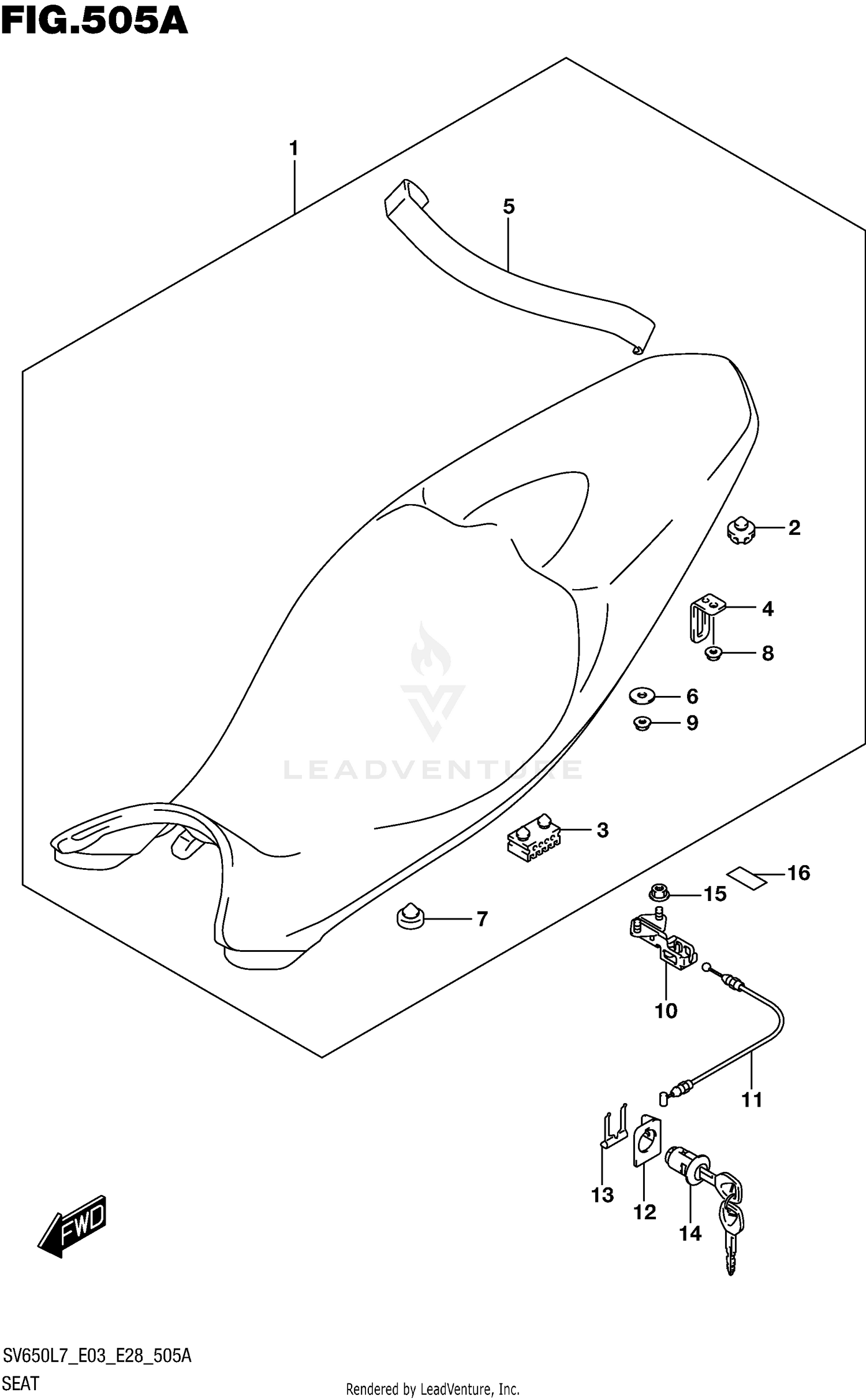

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK)
45100-18K00-BBC
Superseded by 45100-18K03-BBC
|
$328.34 | ||
|
Unavailable |
|||
|
#2
.CUSHION, SEAT MONT
45148-20G90
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION, SEAT MOUNT CENTER
45149-31300
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
.STRIKER,SEAT LOCK
45212-18K00
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BAND,SEAT GRIP (BLACK)
45380-18K00-P3H
Superseded by 45380-18K01-P3H
|
$23.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CUSHION, SEAT MOUNT
09321-10012
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
.NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.NUT
08316-1006A
|
$2.72 | ||
|
Unavailable |
|||
|
#10
BRACKET,SEAT SUPPORT
45220-04K20
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE,SEAT LOCK
45280-18K00
|
$20.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, SEAT LOCK ASSY
45289-11F00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK SET, SEAT
95700-14F00
Superseded by 95700-14810
|
$137.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08316-1006A
|
$2.72 | ||
|
Unavailable |
|||
|
#16
TAPE, SEAT RAIL
94432-19F00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
